Differential Assembly Inspection
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

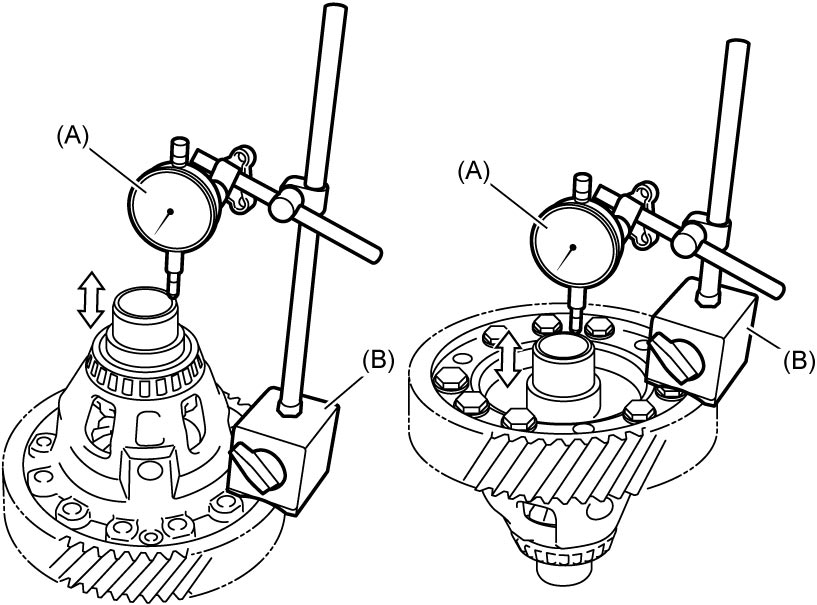

1)Hold differential assembly with soft jawed vise and set special tools as shown.
2)Measure differential side gear thrust play.
Differential side gear thrust play
Standard: 0.05 – 0.20 mm (0.0020 – 0.0078 in.)
3)If check result is not as specified, replace differential assembly.
