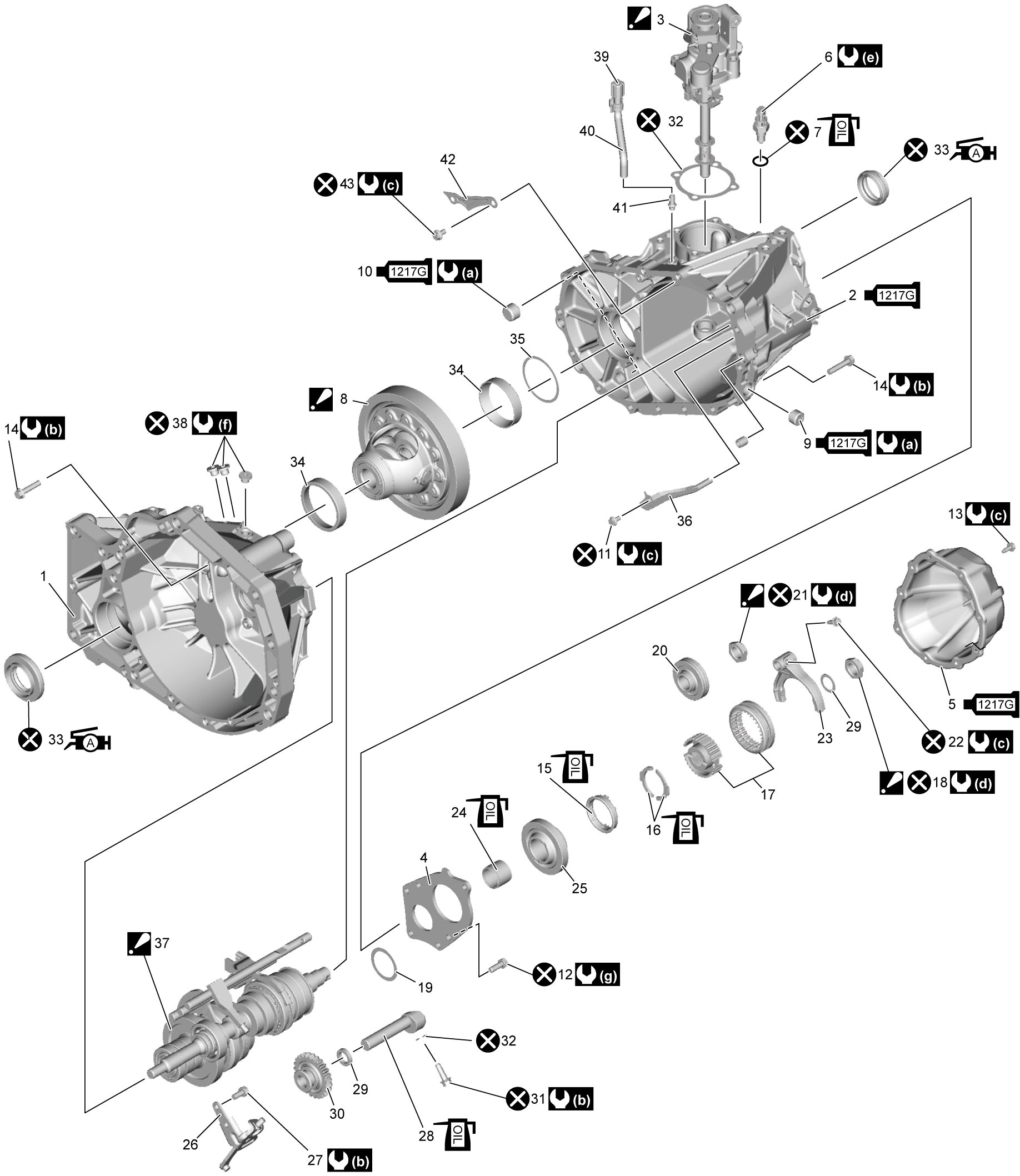

Manual Transaxle Assembly Components

1.	Transaxle right case	28.	Reverse gear shaft
2.	Transaxle left case : Apply sealant 99000-31260 to mating surface of left case and right case.	29.	Washer
3.	Gear shift & select shaft assembly : For details, refer to Gear Shift and Select Shaft Assembly Removal and Installation:5 M/T.	30.	Reverse idler gear
4.	Transaxle left case plate	31.	Reverse gear shaft bolt
5.	Transaxle side cover : Apply sealant 99000-31260 to mating surface of side cover and left case.	32.	Gasket
6.	Back up light switch	33.	Oil seal : Apply grease 99000-25011 to oil seal lip.
7.	O-ring : Apply transaxle oil to O-ring.	34.	Outer race
8.	Differential assembly : For details, refer to Differential Disassembly and Reassembly:5 M/T.	35.	Differential side shim
9.	Oil level / filler plug : Apply sealant 99000-31260 to threads.	36.	Input oil gutter
10.	Oil drain plug : Apply sealant 99000-31260 to threads.	37.	Input shaft & countershaft assembly : For details, refer to Input Shaft and Countershaft Components:5 M/T.
11.	Oil gutter bolt	38.	Gear shift locating bolt
12.	Left case plate bolt	39.	Breather plug
13.	Side cover bolt	40.	Breather hose
14.	Transaxle case bolt	41.	Breather union
15.	5th speed synchronizer ring	42.	Breather cover plate
16.	5th speed synchronizer lever	43.	Breather cover plate bolt
17.	5th speed synchronizer sleeve & hub	:	21 N·m (2.1 kgf-m, 15.5 lbf-ft)
18.	Input shaft nut : After tightening nut to specified torque, caulk nut securely.	:	23 N·m (2.3 kgf-m, 17.0 lbf-ft)
19.	Bearing set shim	:	10 N·m (1.0 kgf-m, 7.5 lbf-ft)
20.	Countershaft 5th gear	:	100 N·m (10.2 kgf-m, 74.0 lbf-ft)
21.	Countershaft nut : After tightening nut to specified torque, caulk nut securely.	:	19 N·m (1.9 kgf-m, 14.0 lbf-ft)
22.	5th gear shift fork bolt	:	13 N·m (1.3 kgf-m, 9.5 lbf-ft)
23.	5th gear shift fork	:	31 N·m (3.2 kgf-m, 23.0 lbf-ft)
24.	Needle bearing	:	Apply transaxle oil.
25.	Input shaft 5th gear	:	Do not reuse.
26.	Reverse gear shift lever
27.	Reverse gear shift lever bolt
