DTC P0715-31 / P0715-61 / P0715-62 / P0715-64

Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

DTC Detecting Condition and Trouble Area

DTC detecting condition	Trouble area
P0715-31: Input / Turbine Shaft Speed Sensor “A” – No Signal Odd clutch speed sensor signal is not inputted although the following conditions are satisfied: •Vehicle speed is greater than a specified value. •Odd gear clutch is closed. •Actual gear is 1st, 3rd, 5th or reverse. (1 D/C detection logic)	•Odd gear clutch speed sensor circuit •Odd gear clutch speed sensor (solenoid valve unit) •TCM
P0715-61: Input / Turbine Shaft Speed Sensor “A” – Signal Calculation Failure Absolute value (odd clutch speed – (deducts) odd clutch speed calculated by vehicle speed) is higher than specified value. (1 D/C detection logic)
P0715-62: Input / Turbine Shaft Speed Sensor “A” – Signal Compare Failure While vehicle is running in any gear, clutch speed is abnormally high. (1 D/C detection logic)
P0715-64: Input / Turbine Shaft Speed Sensor “A” – Signal Plausibility Failure This DTC is detected if the following conditions are met. •Absolute value (odd clutch speed – (deducts) engine speed) is higher than specified value. •Absolute value (odd clutch speed – (deducts) odd clutch speed calculated by vehicle speed) is higher than specified value. (1 D/C detection logic)

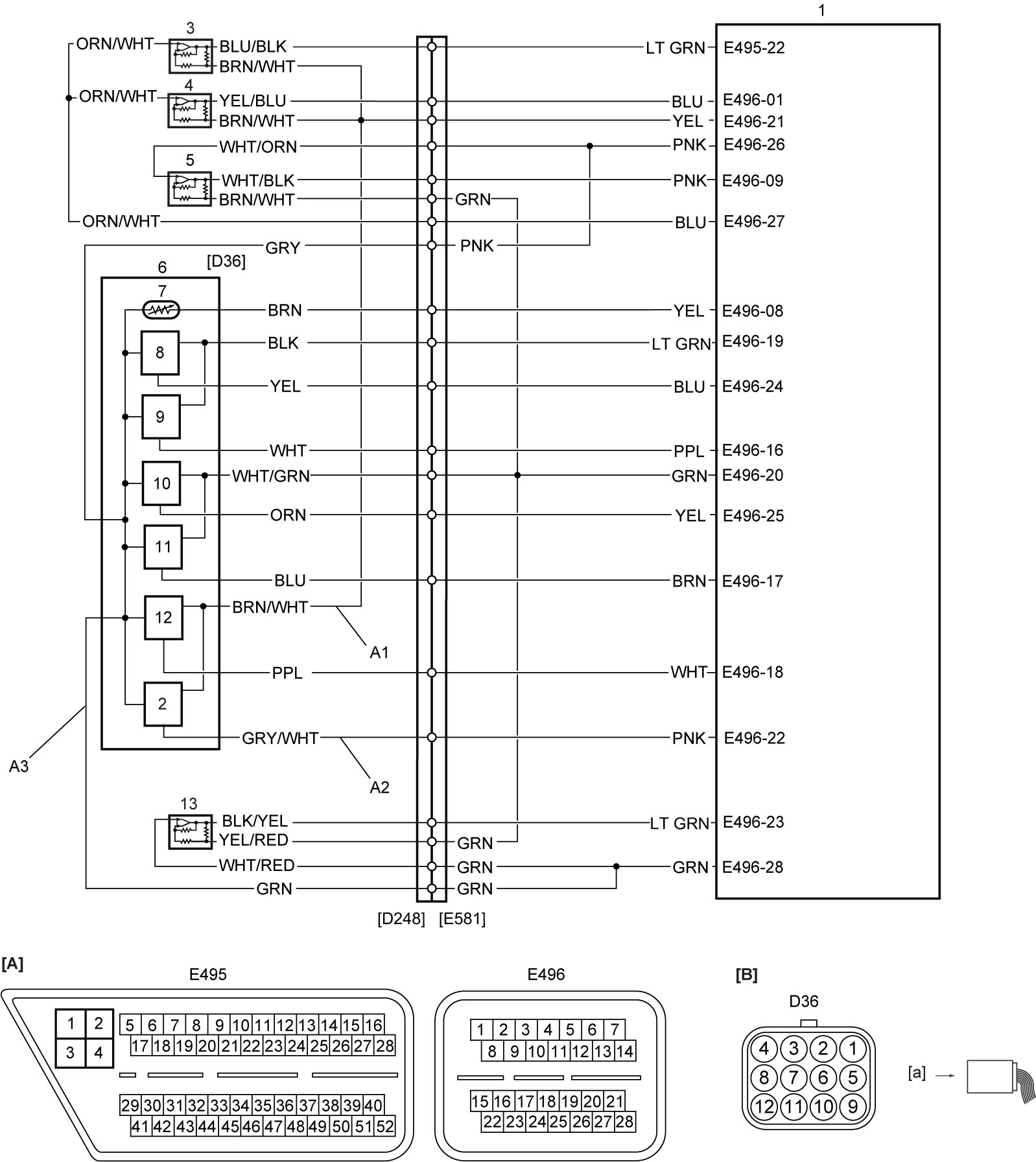

Circuit Diagram

[A]:	TCM connector (View: [a])	2.	Odd gear clutch speed sensor	8.	1st & 3rd gear position sensor
[B]:	Sensor module connector (View: [a])	3.	Parking position sensor	9.	5th & reverse gear position sensor
A1:	Odd gear clutch speed sensor power supply circuit	4.	Line pressure sensor	10.	6th gear position sensor
A2:	Odd gear clutch speed sensor signal circuit	5.	Even gear clutch pressure sensor	11.	2nd & 4th gear position sensor
A3:	Odd gear clutch speed sensor ground circuit	6.	Sensor module	12.	Even gear clutch speed sensor
1.	TCM	7.	Sensor module temperature sensor	13.	Gear select position sensor

DTC Confirmation Procedure

WARNING:

If you do not select a suitable route and take proper precautions when performing a road test, an accident can occur.

•Select a level road with no traffic to minimize the risk of accident.
•Perform the test extremely carefully.
•Perform the road test with 2 persons, a driver and a tester.

NOTE:

•Check that the following condition is satisfied in this procedure.

—11 V < Battery voltage < 15 V

•Check that the following DTCs are not detected in this “DTC Confirmation Procedure”.

—Even gear clutch pressure sensor (P0642-13, P0933-12, P0933-14, P0934-1C and P0935-1C)
—Sensor module temperature sensor (P0668-11, P0668-15, P19D1-62 and P19D1-64)
—Even gear clutch speed sensor (P0716-31, P0716-61, P0716-62 and P0716-64)
—Parking position sensor (P081C-11, P081C-15, P081C-36, P081C-37, P081C-38 and P19B7-68)
—Gear select position sensor (P0904-11, P0904-15, P0904-1C, P0904-36, P0904-37, P0904-38 and P0909-1C)
—1st & 3rd gear position sensor (P0914-11, P0914-15, P0914-1C, P0914-36, P0914-37 and P0914-38)
—2nd & 4th gear position sensor (P0915-11, P0915-15, P0915-1C, P0915-36, P0915-37 and P0915-38)
—5th & reverse gear position sensor (P0916-11, P0916-15, P0916-1C, P0916-36, P0916-37 and P0916-38)
—6th gear position sensor (P0917-11, P0917-15, P0917-1C, P0917-36, P0917-37 and P0917-38)
—Line pressure sensor (P0932-12 and P0932-14)
—Sensor supply voltage (P19A9-1C)

1)Start engine and drive vehicle.

DTC Troubleshooting

Step	Action	Yes	No
1	Was “Twin Clutch System Check” performed?	Go to Step 2.	Go to Twin Clutch System Check.
2	Odd gear clutch speed sensor power supply circuit check 1)With ignition “OFF”, disconnect sensor module connector. 2)Check for proper terminal connection to sensor module connector. 3)If connection is OK, set ignition “ON”. 4)Check that voltage between “A1” and ground is approx. 5 V. Is check result OK?	Go to step 3.	Repair “A1” circuit. If this DTC is detected again, replace TCM and recheck DTC.
3	Odd gear clutch speed sensor signal circuit and ground circuit check 1)With ignition “OFF”, disconnect “E495” and “E496” connectors from TCM. 2)Check for proper terminal connection to “E495” and “E496” connectors. 3)If connections are OK, check the following points. •Resistance of “A2” and “A3” circuits: less than 1 Ω •Resistance between each of “A2” and “A3” circuits and ground: infinity •Resistance between “A2” circuit terminal and other terminal at sensor module connector: infinity •Resistance between “A3” circuit terminal and other terminal at sensor module connector: infinity •Voltage of “A3” circuit: approx. 0 V (When ignition is “ON”) Is check result OK?	Replace odd gear clutch speed sensor (solenoid valve unit). If this DTC is detected again, replace TCM and recheck DTC.	Repair or replace defective wire harness.
