P Position Switch Inspection
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
1)Remove floor console front cover.

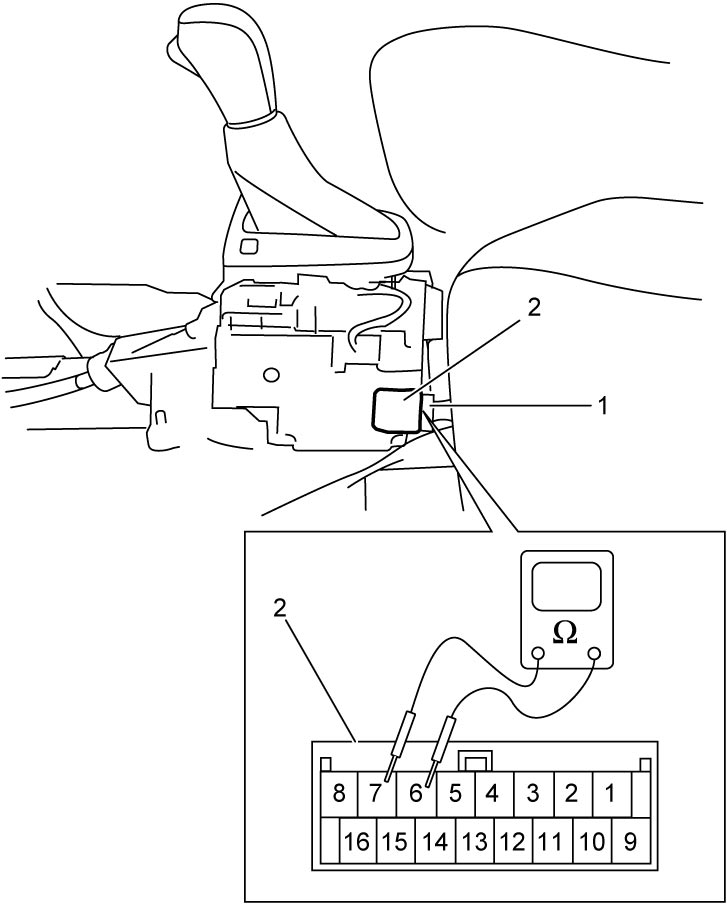

2)Disconnect select lever connector (1).
3)Check for continuity between terminals “6” and “7” of select lever connector (2). Replace select lever if check result is not as specified.
P position switch specification
| Condition | Specification |
| P range and select lever is released | Continuity |
| Other than P range | No continuity |
