Manual Release of Shift Lock
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
1)For ignition switch model, set ignition “ACC”.

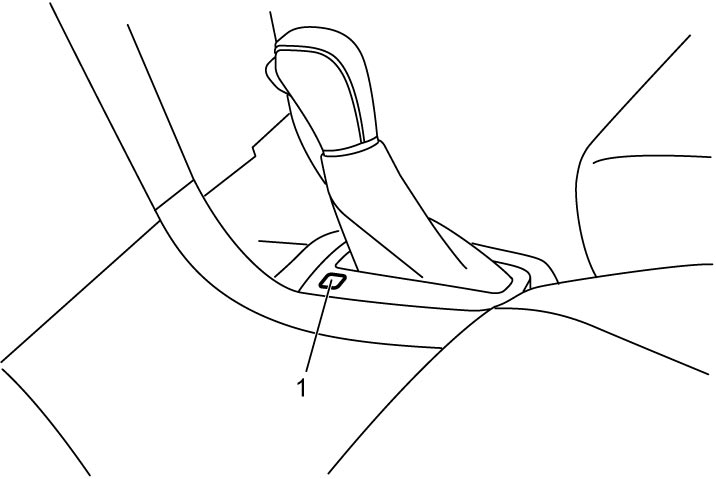

2)For LHD model, open cap (1) at select lever assembly using a flat-bladed screwdriver.

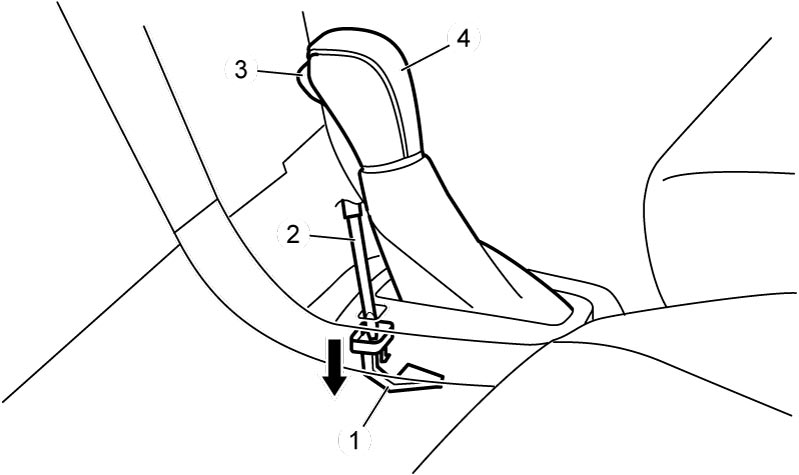

3)While pushing down shift lock solenoid release plate (1) at inside of cap using a flat-bladed screwdriver (2), press the select lever button (3). Check that select lever (4) shifts to other than P range.
If faulty condition is found, replace select lever assembly.
If faulty condition is found, replace select lever assembly.
