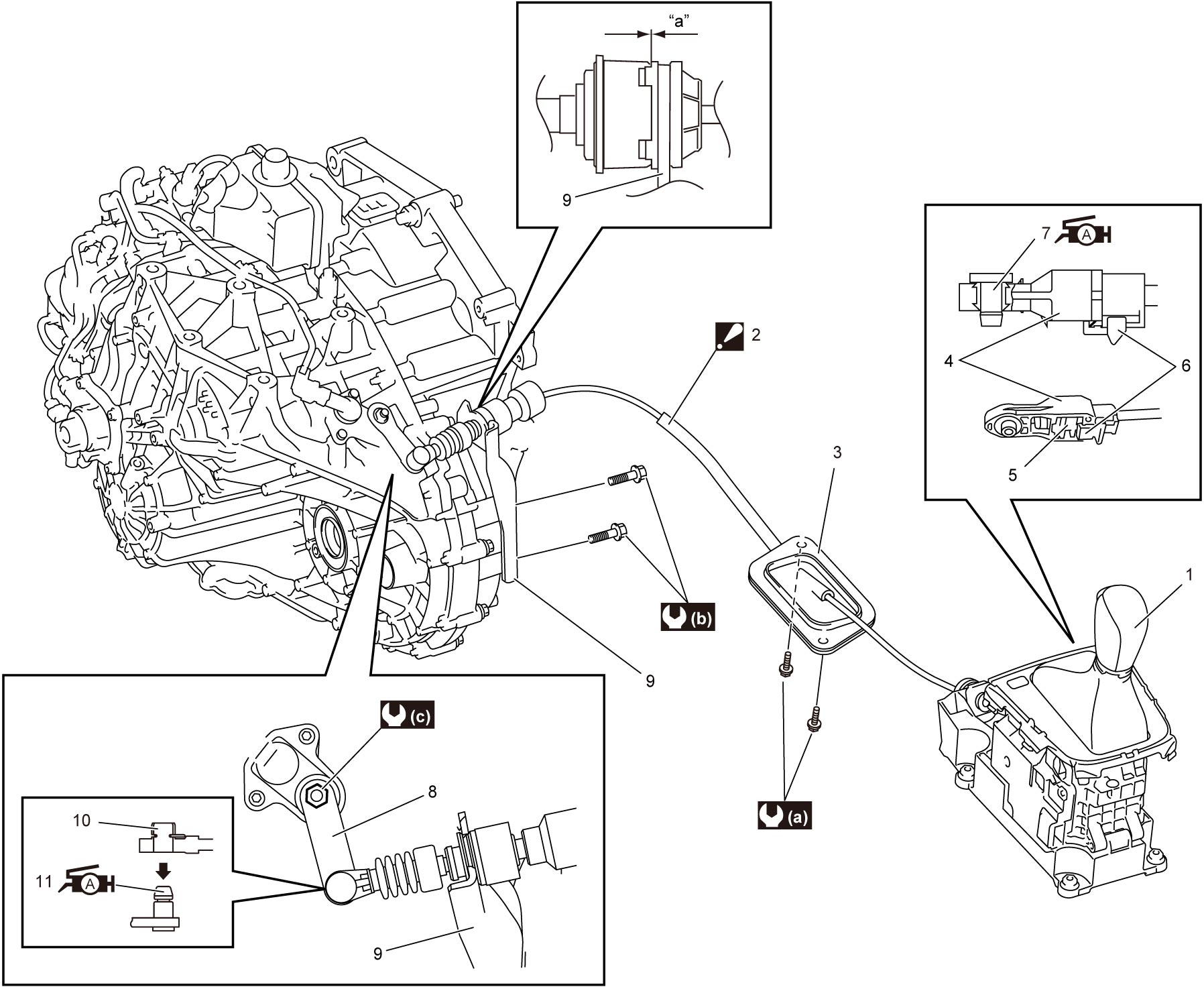

Parking Cable Components
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
| “a”: | 0 mm (0 in.) | 5. | Cable end holder | 10. | Eye end |
| 1. | Select lever assembly | 6. | Lock plate |
 11. |
Parking lock shaft arm pin : Apply grease 99000-25011 to sliding surface. |
 2. |
Parking cable : After completing installation, adjust parking cable.
|
7. |
Select lever pin : Apply grease 99000-25011 to sliding surface. |
 : |
5.5 N·m (0.56 kgf-m, 4.0 lbf-ft) |
| 3. | Parking cable retainer | 8. | Parking lock shaft arm |
 : |
50 N·m (5.1 kgf-m, 37.0 lbf-ft) |
| 4. | Adjuster | 9. | Parking cable bracket |
 : |
12 N·m (1.2 kgf-m, 9.0 lbf-ft) |
