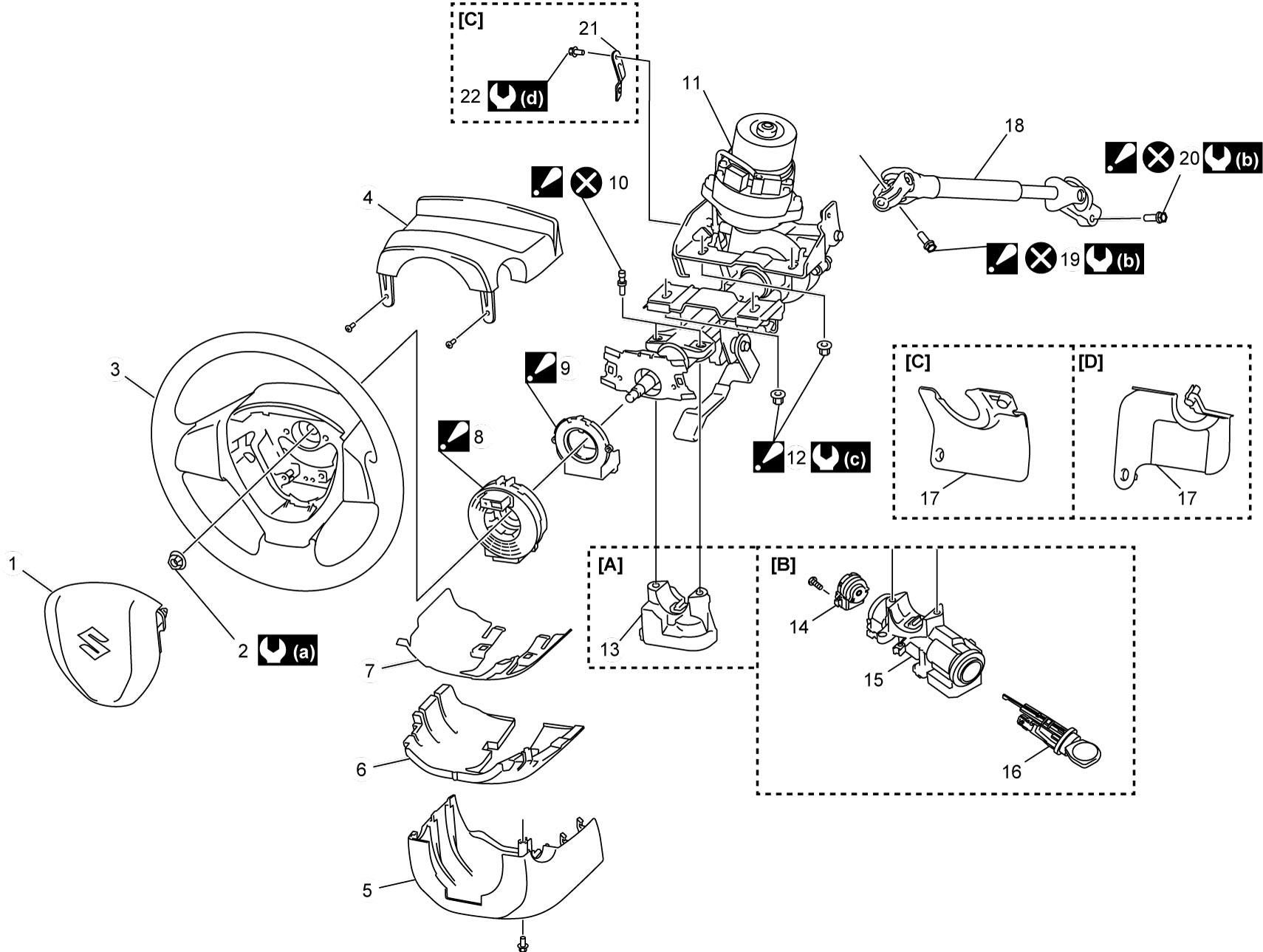

Steering Wheel and Column Components
Precautions: Precautions for Steering Wheel and Column · Precautions for Steering · General safety (00)
| [A]: | Keyless push start model |
 8. |
Contact coil assembly : Center contact coil cable assembly.
|
19. |
Steering lower shaft joint bolt (Steering column side) : For tightening order, refer to Steering Column Removal and Installation. |
| [B]: | Ignition switch model |
9. |
Steering angle sensor : For installation, refer to Steering Angle Sensor Removal and Installation. |
20. |
Steering lower shaft joint bolt (pinion shaft side) : For tightening order, refer to Steering Column Removal and Installation. |
| [C]: | LHD model |
10. |
Steering lock bolt : For tightening and loosening procedures of steering lock bolt, refer to Steering Lock Removal and Installation. |
21. | Harness bracket |
| [D]: | RHD model | 11. | Steering column assembly | 22. | Harness bracket bolt |
| 1. | Driver air bag (inflator) module |
12. |
Steering column nut : For tightening order, refer to Steering Column Removal and Installation. |
 : |
33 N·m (3.4 kgf-m, 24.5 lbf-ft) |
| 2. | Steering shaft nut | 13. | Auto steering lock |
 : |
35 N·m (3.6 kgf-m, 26.0 lbf-ft) |
| 3. | Steering wheel | 14. | Ignition switch |
 : |
14 N·m (1.4 kgf-m, 10.5 lbf-ft) |
| 4. | Steering column upper cover | 15. | Steering lock |
 : |
5.5 N·m (0.56 kgf-m, 4.0 lbf-ft) |
| 5. | Steering column lower cover | 16. | Ignition switch cylinder |
 : |
Do not reuse. |
| 6. | Steering column lower cover pad | 17. | Steering joint cover | ||
| 7. | Plate | 18. | Steering lower shaft |
