Ignition Switch Removal and Installation (Ignition Switch Model)

Precautions: Precautions for Steering Wheel and Column · Precautions for Steering · General safety (00)

Removal

1)Disconnect negative (–) cable at battery.

2)Remove steering column lower cover.

3)Check that ignition key is removed.

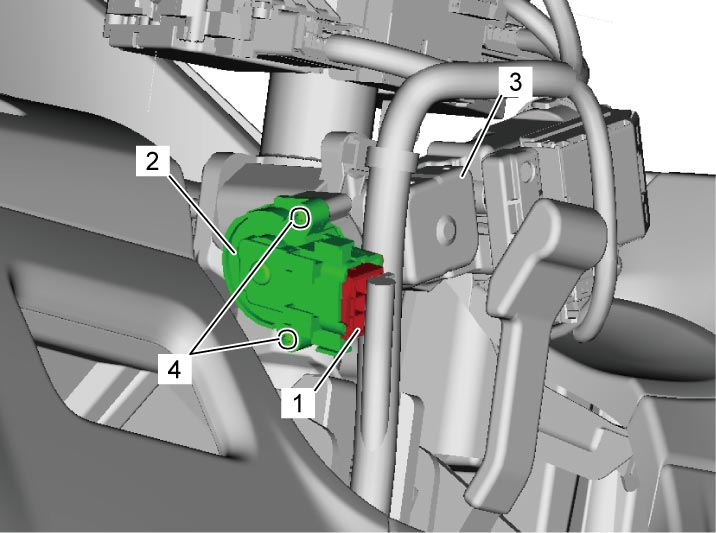

4)Disconnect connector (1) from ignition switch (2).

5)Remove screws (4), and then remove ignition switch from steering lock (3).

Installation

Reference: Ignition Switch Inspection (Ignition Switch Model)

Reverse removal procedure.
