Ignition Switch Inspection (Ignition Switch Model)
Precautions: Precautions for Steering Wheel and Column · Precautions for Steering · General safety (00)
1)Remove steering column lower cover.

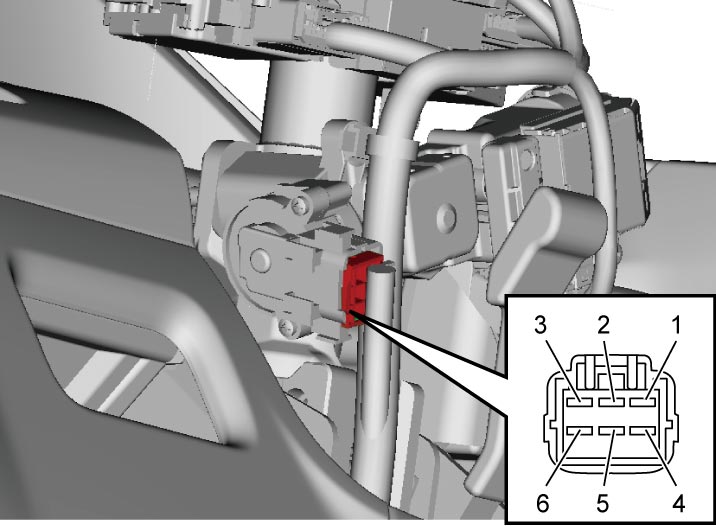

2)Disconnect ignition switch connector from ignition switch.
Check for continuity between terminals at each switch position. If check result is not as specified, replace ignition switch.
Check for continuity between terminals at each switch position. If check result is not as specified, replace ignition switch.

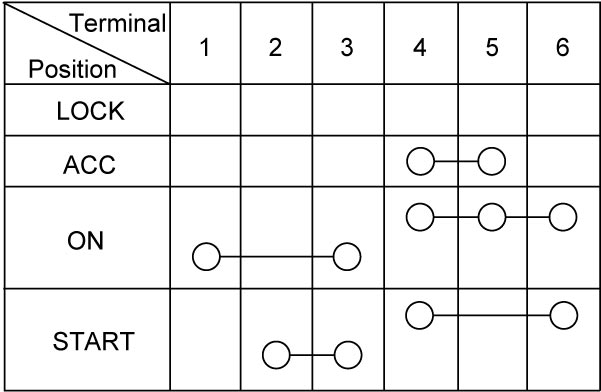

Ignition switch continuity
3)Connect connector to ignition switch.
4)Install steering column lower cover.
