Additional Heater (If Equipped) Removal and Installation

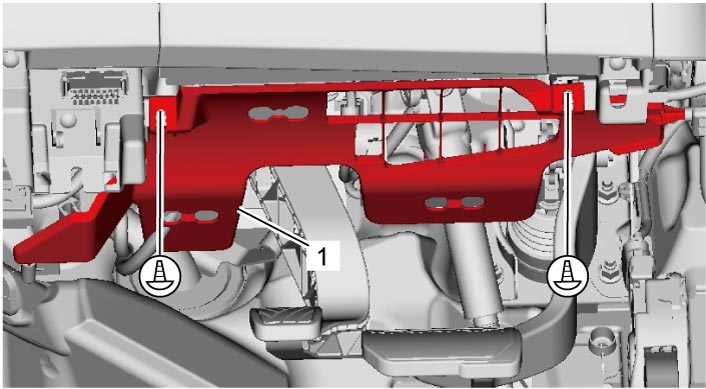

1)Remove driver side instrument panel undercover (1).

2)Remove knee air bag (inflator) module.

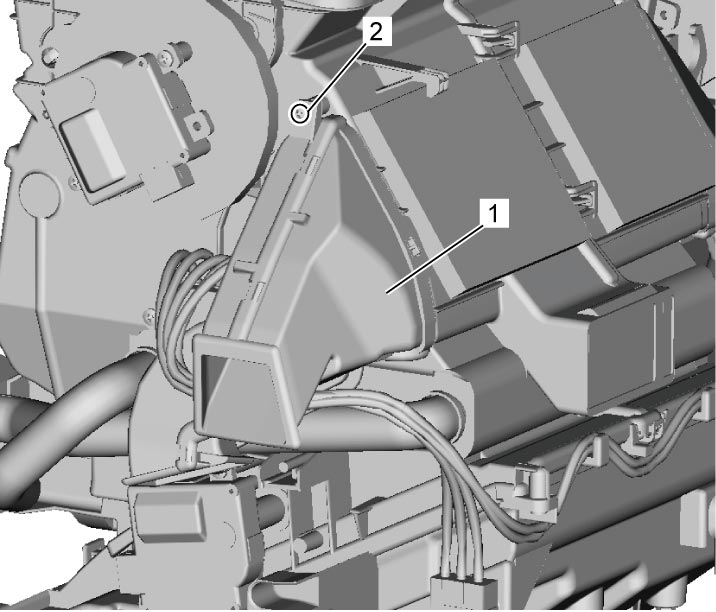

3)Remove driver side foot duct (1) from HVAC unit by removing a screw (2).

4)Remove brake pedal assembly.

5)Remove floor console rear box and right side floor console front cover.

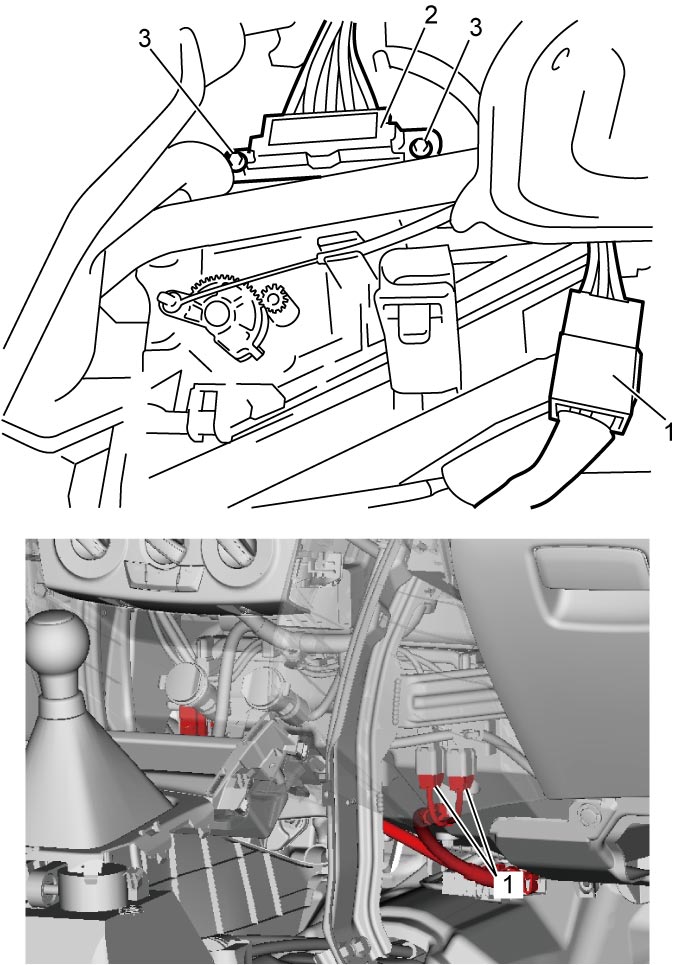

6)Disconnect additional heater connectors (1).

7)Remove additional heater (2) from HVAC unit by removing screws (3).
