Suzuki Vitara (LY) 2016-2017 · Service Manual Non-A/C · Repair Instructions

Blower Speed Selector Inspection

Precautions: General safety (00)

Reference: HVAC Control Unit Removal and Installation:Non-A/C

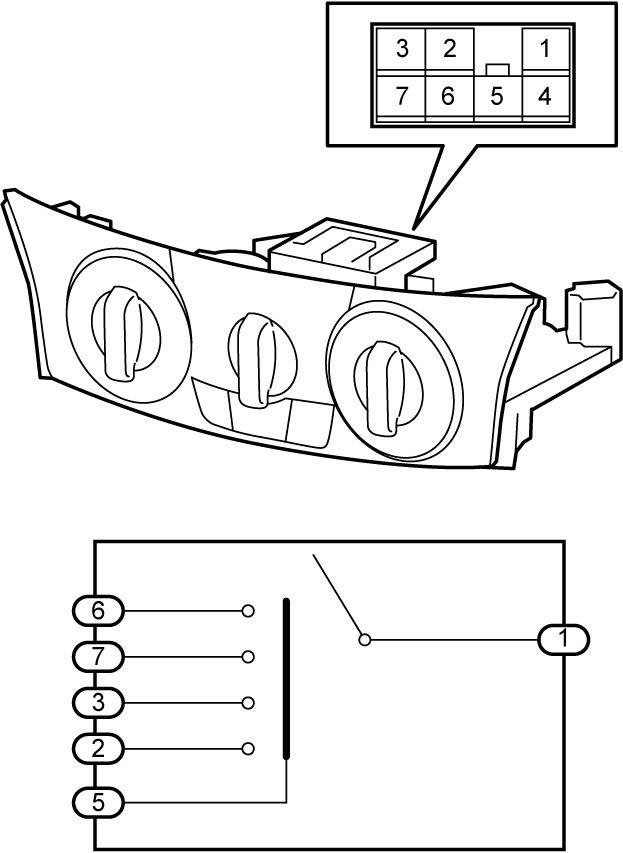

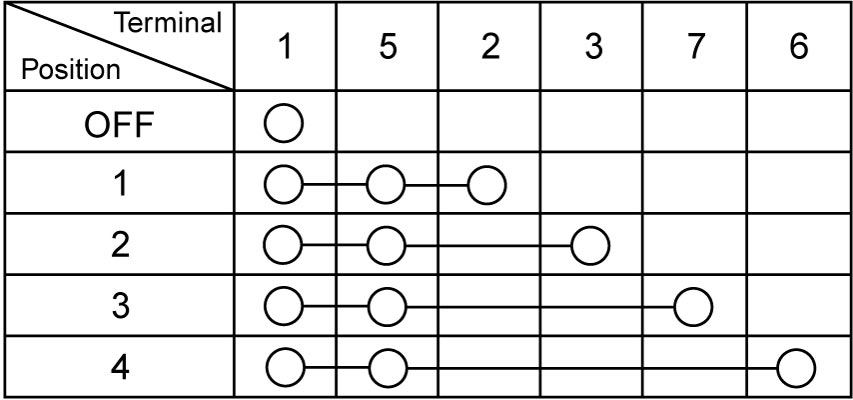

Check blower speed selector for terminal-to-terminal continuity. If check result is not as specified, replace HVAC control unit.
