Air Intake Switch Inspection

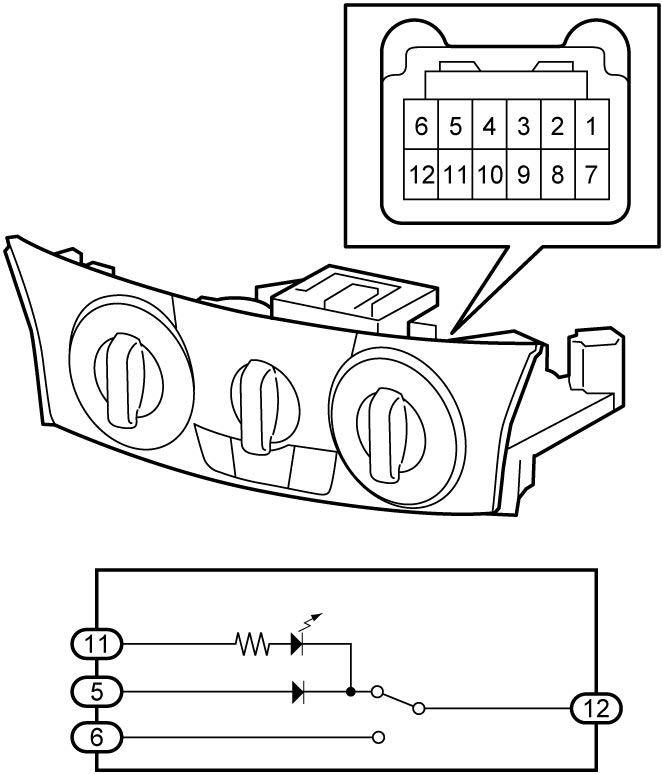

Check air intake switch for terminal-to-terminal continuity. If check result is not as specified, replace HVAC control unit.

NOTE:

To perform measurement with air intake selector in “REC” position, use diode range of circuit tester.

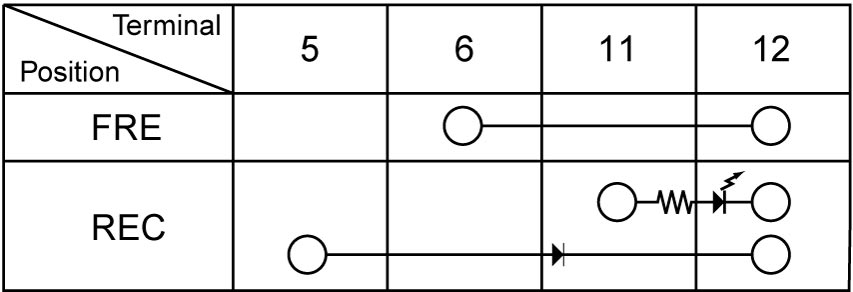

Air intake switch continuity
