Evaporator Temperature Sensor Removal and Installation
Precautions: General safety (00)
Removal
1)Remove HVAC unit from vehicle.

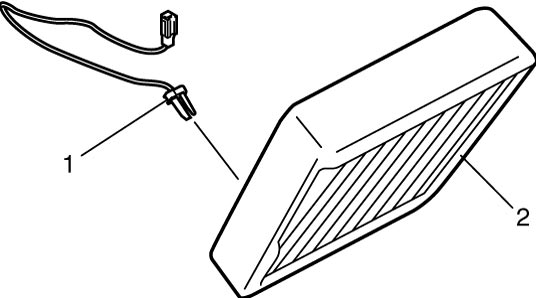

2)Remove evaporator temperature sensor (1) from evaporator (2) by disassembling HVAC unit.
Installation
Reverse removal procedure noting the following point.

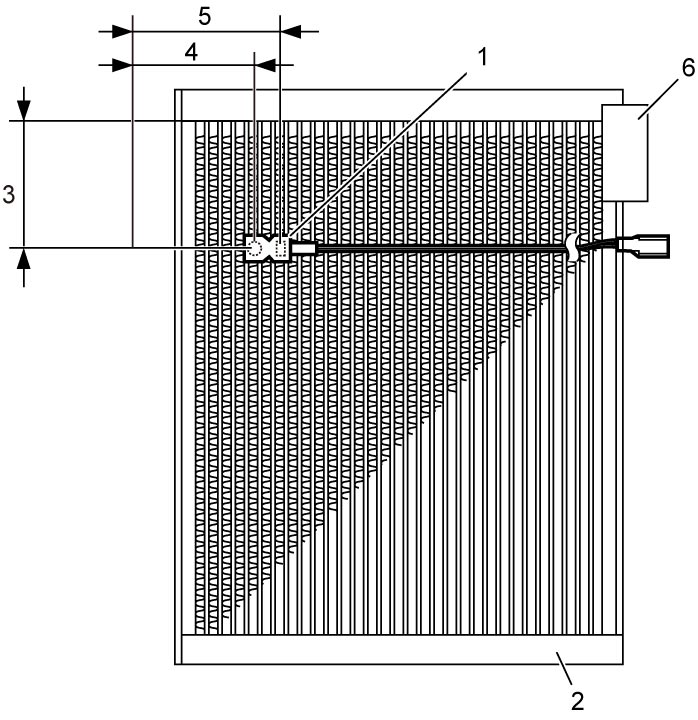

•Install evaporator temperature sensor (1) onto evaporator (2) as shown.
| 3. | 50 mm (1.9 in) |
| 4. | Sensor part fixed to 5th fin from the left |
| 5. | Holding part fixed to 7th fin from the left |
| 6. | Pipe fitting |
