Evaporator Temperature Sensor Inspection

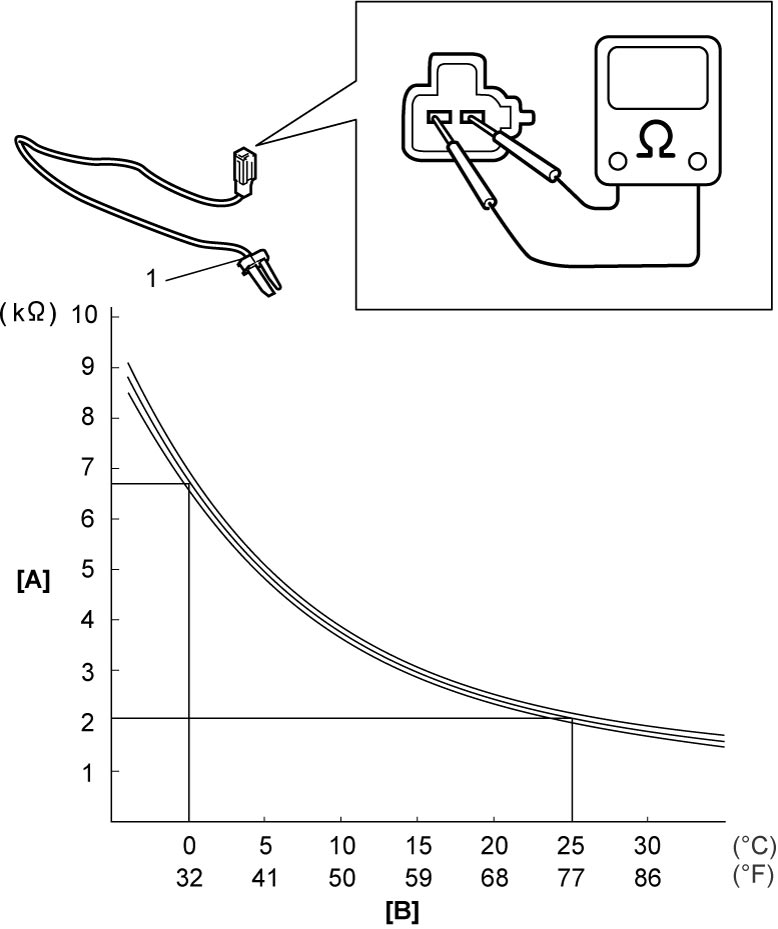

Check resistance between terminals of evaporator temperature sensor (1).

If check result is not as specified, replace evaporator temperature sensor.

Evaporator temperature sensor resistance

0 °C (32 °F): 6.5 – 6.9 kΩ

25 °C (77 °F): 1.9 – 2.3 kΩ

[A]:

Resistance

[B]:

Temperature
