Compressor Drive Belt Removal and Installation
Precautions: General safety (00)
Petrol Model
Removal

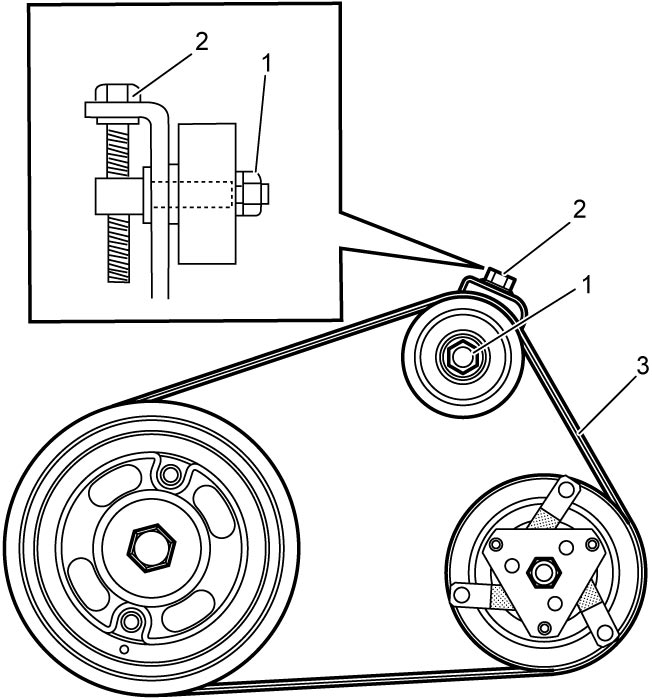

1)Loosen tension pulley nut (1).
2)Loosen belt tension by loosening tension pulley adjusting bolt (2).
3)Remove compressor drive belt (3).
Installation
Reverse removal procedure noting the following point.
•Adjust belt tension.
Diesel Model
For removal and installation, refer to Generator Drive Belt, Tensioner and Idler Pulley Removal and Installation:D16AA.
