Audio / Navigation Unit Removal and Installation

1)Disconnect negative (–) cable at battery.

2)Remove instrument panel center ornament.

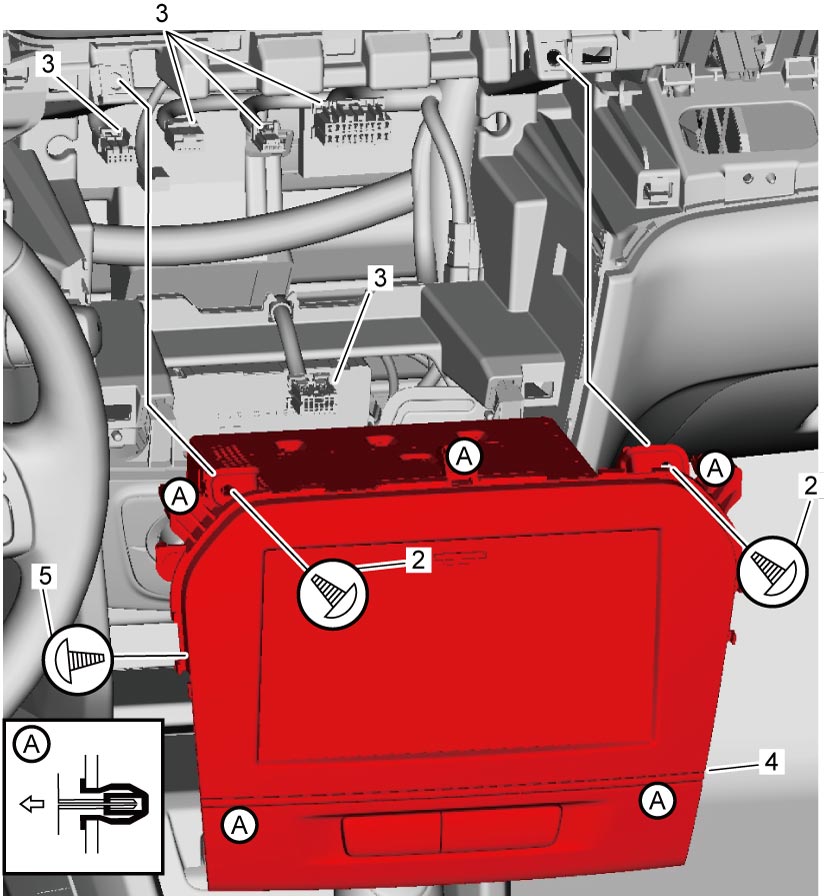

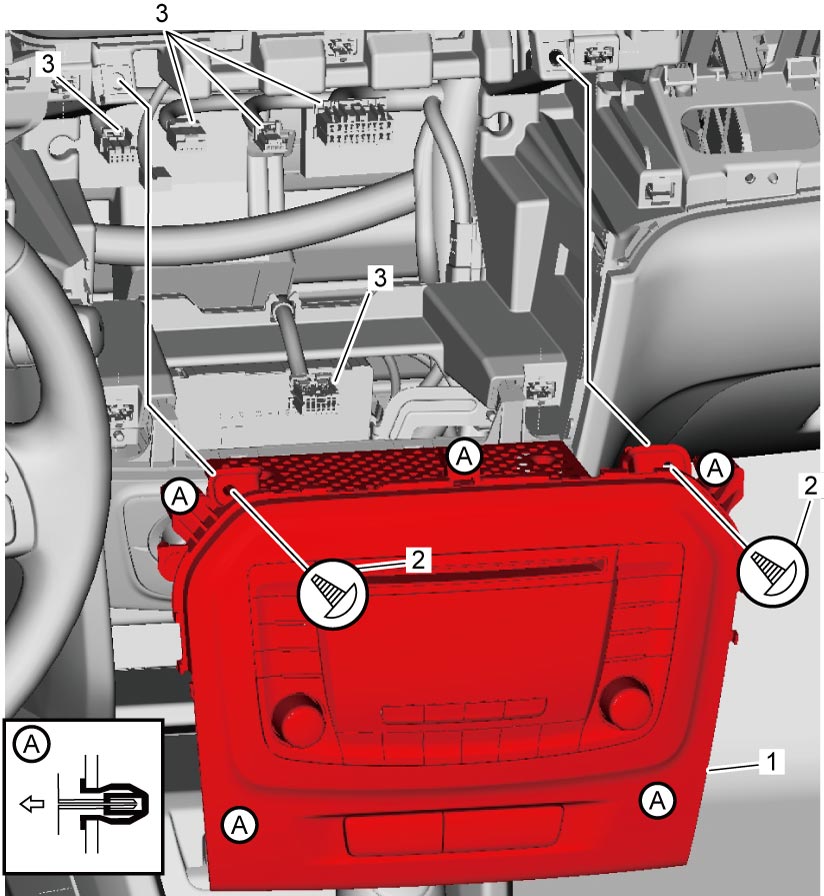

3)Remove audio unit (1) or navigation unit (4) from instrument panel by removing 2 mounting screws (2).

4)Disconnect audio unit or navigation unit and hazard switch connectors (3).

5)For navigation unit, remove noise suppressor wire screw (5).

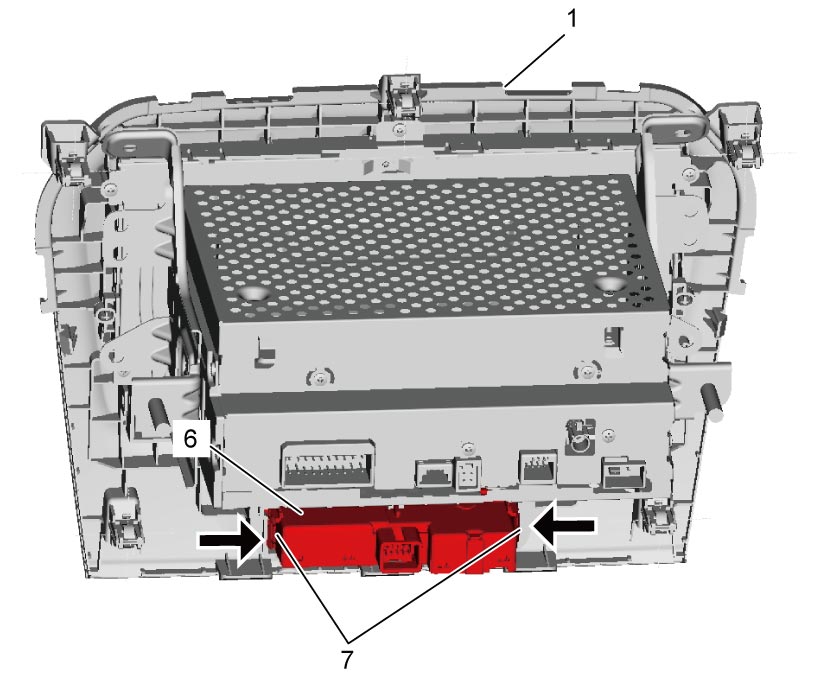

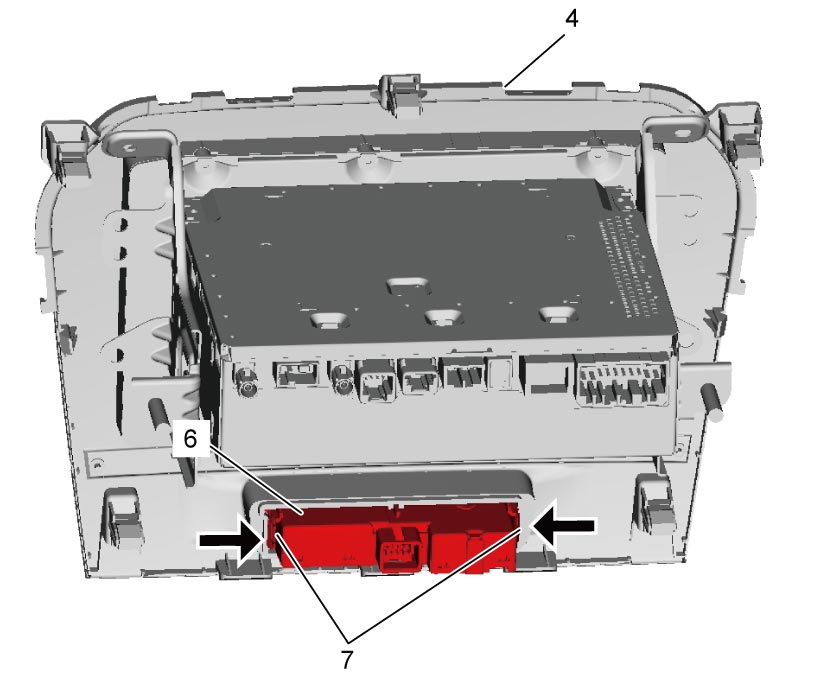

6)Remove hazard switch (6) from audio / navigation unit while holding claws (7) pressed in arrow directions.
