Suzuki Vitara (LY) 2016-2017 · Service Manual Automatic Type · Repair Instructions

Inside Air Temperature Sensor Removal and Installation

Precautions: Precautions for Diagnosing Trouble · General safety (00)

Removal
1)Disconnect negative (–) cable at battery.
2)Remove steering column hole cover from instrument panel. icon
3)Remove knee air bag module (if equipped). icon

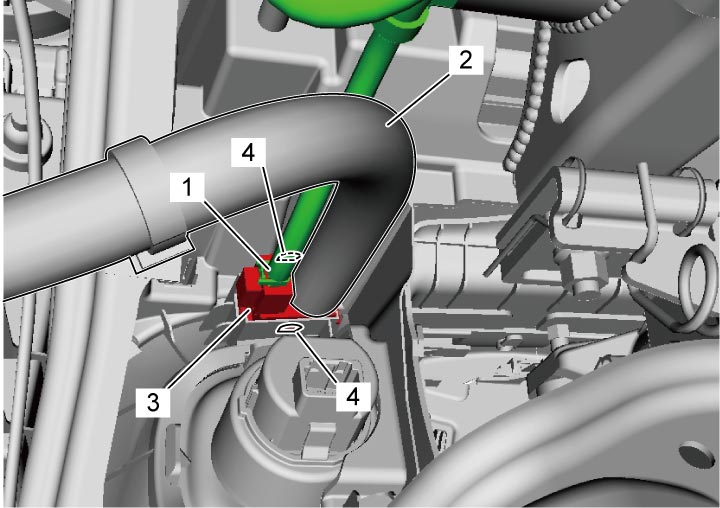

4)Remove connector (1) and aspirator hose (2) from inside air temperature sensor (3).
5)Remove tabs (4), and then remove inside air temperature sensor from instrument panel.
