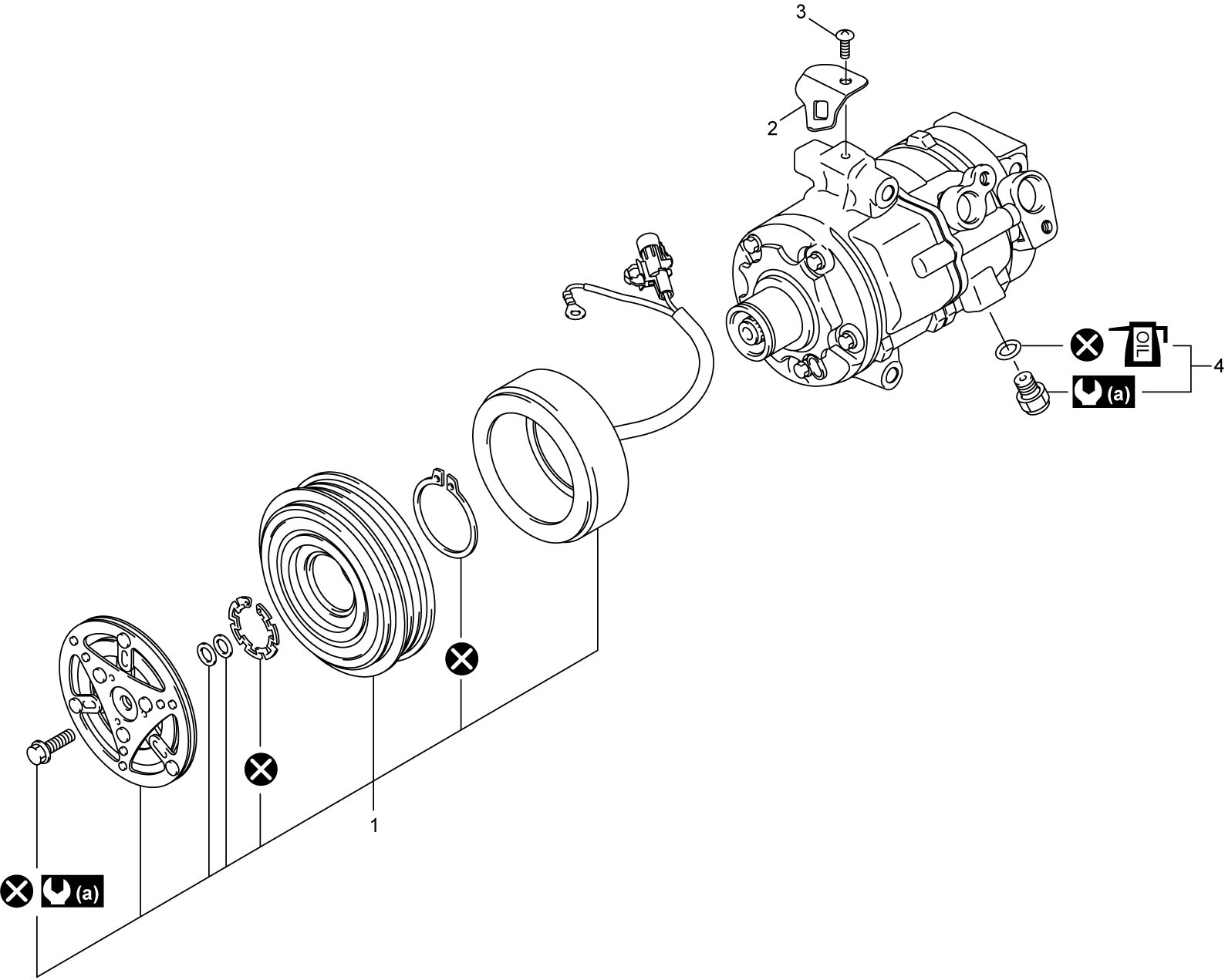

Compressor Assembly Components
Precautions: Precautions for Diagnosing Trouble · General safety (00)
M16A Model and D16AA Model
K14C Model
| 1. | Clutch set | 3. | Screw |
 : |
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
| 2. | Bracket |
 4. |
Relief valve set O-ring: Apply compressor oil. |
 : |
Do not reuse. |
