Front Seat Belt Components
Precautions: Precautions for Service and Diagnosis of Seat Belt · Precautions for Restraint · General safety (00)
NOTE:

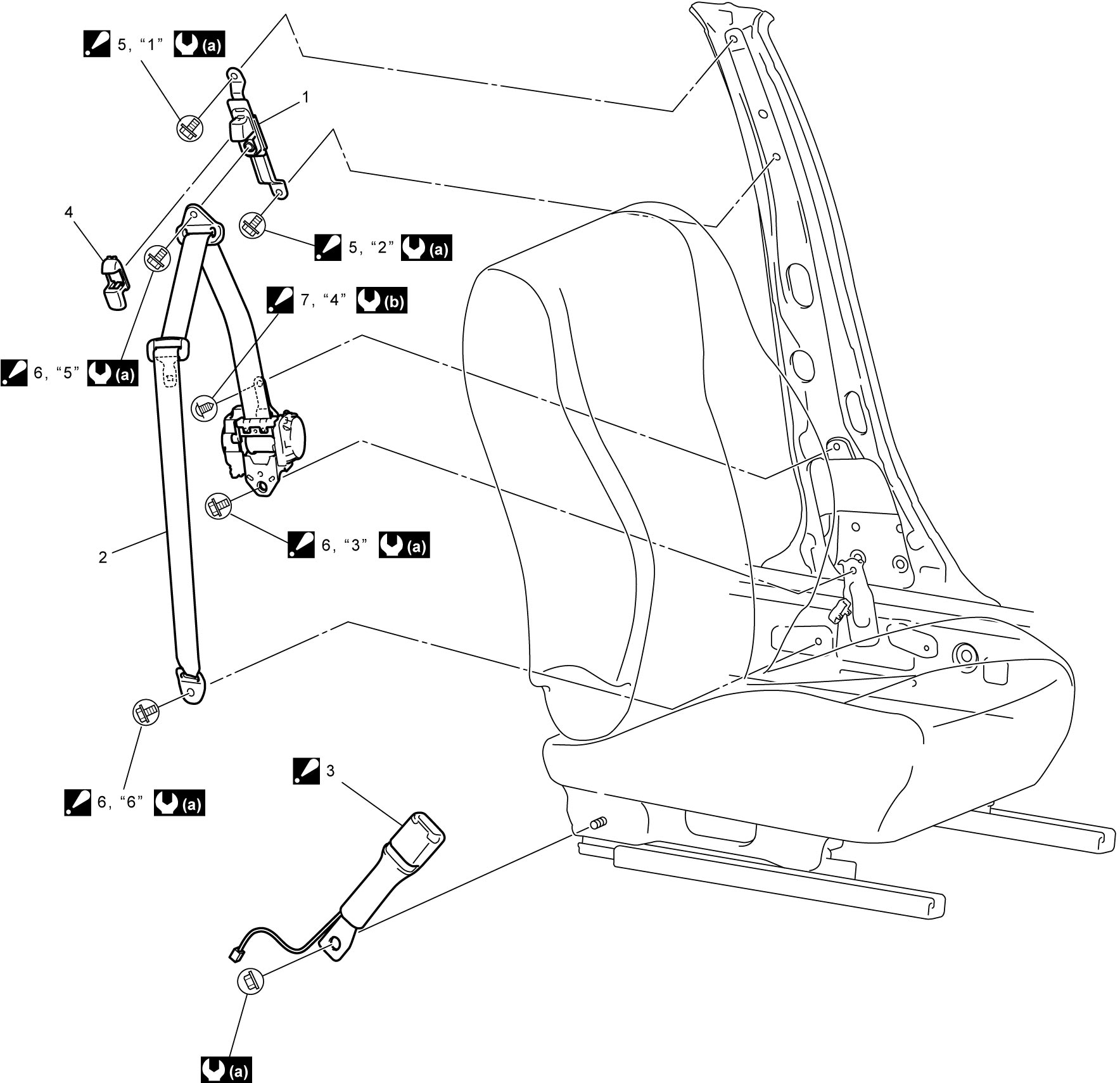

The figure shows the driver’s seat belt on LHD. The tightening torque for the passenger’s seat belt is the same.
| 1. | Shoulder adjuster |
 6. |
Front seat belt bolt : Tightening order: “1” – “6”. |
| 2. | Seat belt assembly |
7. |
Front seat belt screw : Tightening order: “1” – “6”. |
|
3. |
Buckle : Tighten buckle nut and then check that buckle can be moved backward and forward. |
 : |
43 N·m (4.4 kgf-m, 32.0 lbf-ft) |
| 4. | Shoulder adjuster cover |
 : |
5.5 N·m (0.56 kgf-m, 4.0 lbf-ft) |
|
5. |
Shoulder adjuster bolt : Tightening order: “1” – “6”. |
