Seat Belt Buckle Inspection
Precautions: Precautions for Service and Diagnosis of Seat Belt · Precautions for Restraint · General safety (00)
Belt Latch

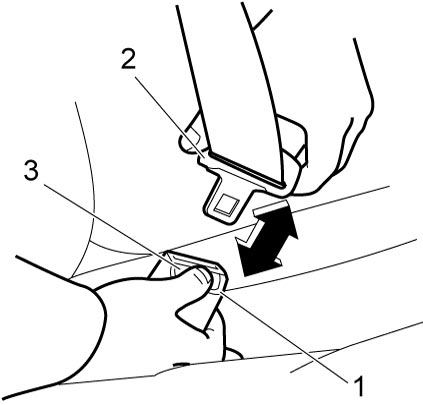

•Check that tongue plate (2) is latched securely.
•Check that lock is released by pressing release button (3) when tongue plate is latched to buckle (1).
•Check that lock is released by pressing release button (3) when tongue plate is latched to buckle (1).
Seat Belt Buckle Switch (If Equipped)

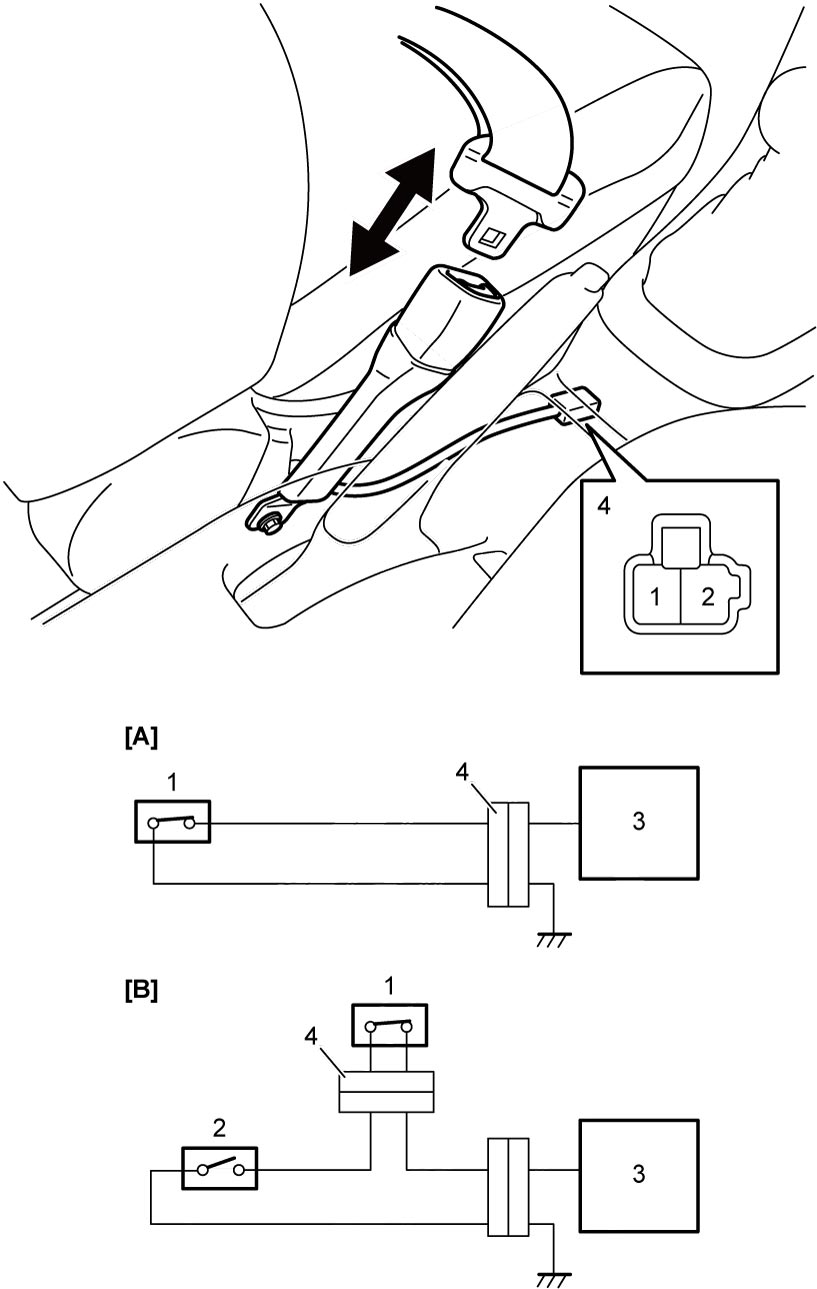

1)Disconnect seat belt buckle switch connector (4).
2)Check continuity between seat belt buckle switch connector terminals “1” and “2”.
| [A]: | Driver seat | 2. | Passenger seat belt reminder sensor (if equipped) |
| [B]: | Passenger seat | 3. | BCM |
| 1. | Seat belt buckle switch |

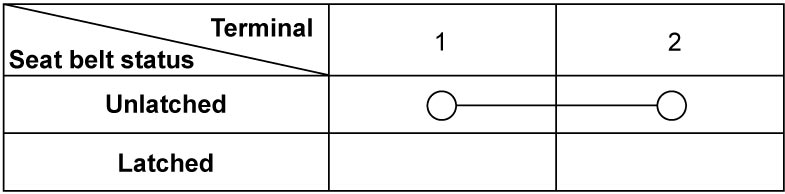

Seat belt buckle switch continuity
