Passenger Seat Belt Reminder Sensor Inspection (If Equipped)
Precautions: Precautions for Service and Diagnosis of Seat Belt · Precautions for Restraint · General safety (00)

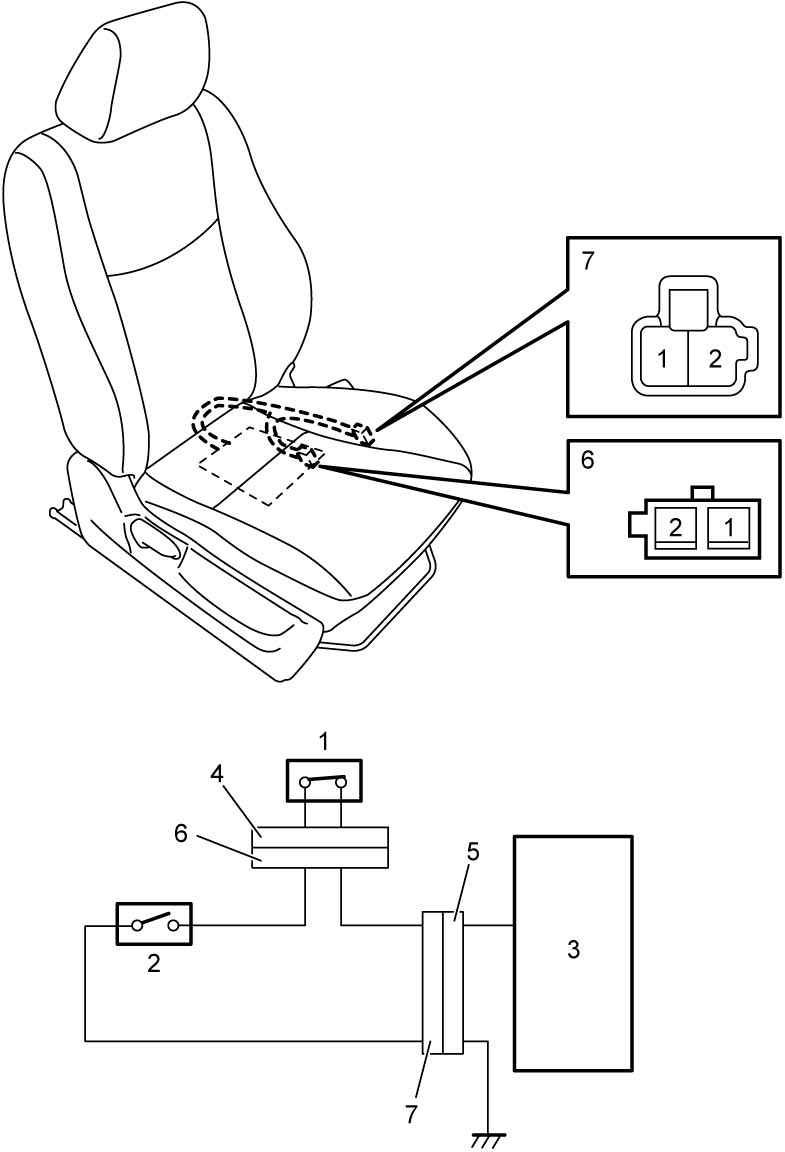

1)Disconnect seat belt buckle switch connector (4) and floor harness connector (5).
| 1. | Seat belt buckle switch | 6. | Passenger seat belt reminder sensor connector (buckle side) |
| 2. | Passenger seat belt reminder sensor | 7. | Passenger seat belt reminder sensor connector (floor harness side) |
| 3. | BCM |
2)Check continuity between terminal “2” of passenger seat belt reminder sensor connector (buckle side) and terminal “2” of passenger seat belt reminder sensor connector (floor harness side).
Passenger seat belt reminder sensor continuity
Continuity exists

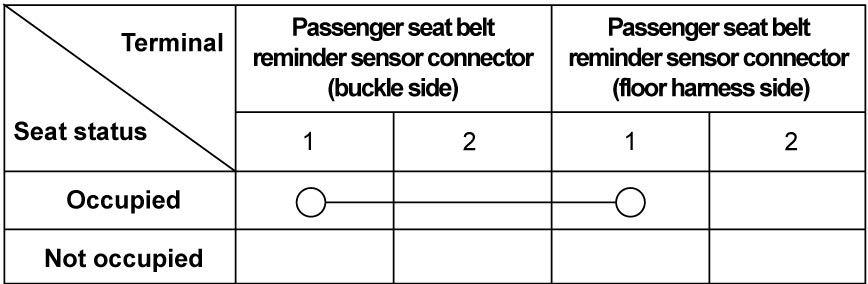

3)Check continuity between terminal “1” of passenger seat belt reminder sensor connector (buckle side) and terminal 1 of passenger seat belt reminder sensor connector (floor harness side).
Passenger seat belt reminder sensor continuity
