Rear Seat Belt Components
Precautions: Precautions for Service and Diagnosis of Seat Belt · Precautions for Restraint · General safety (00)
NOTE:

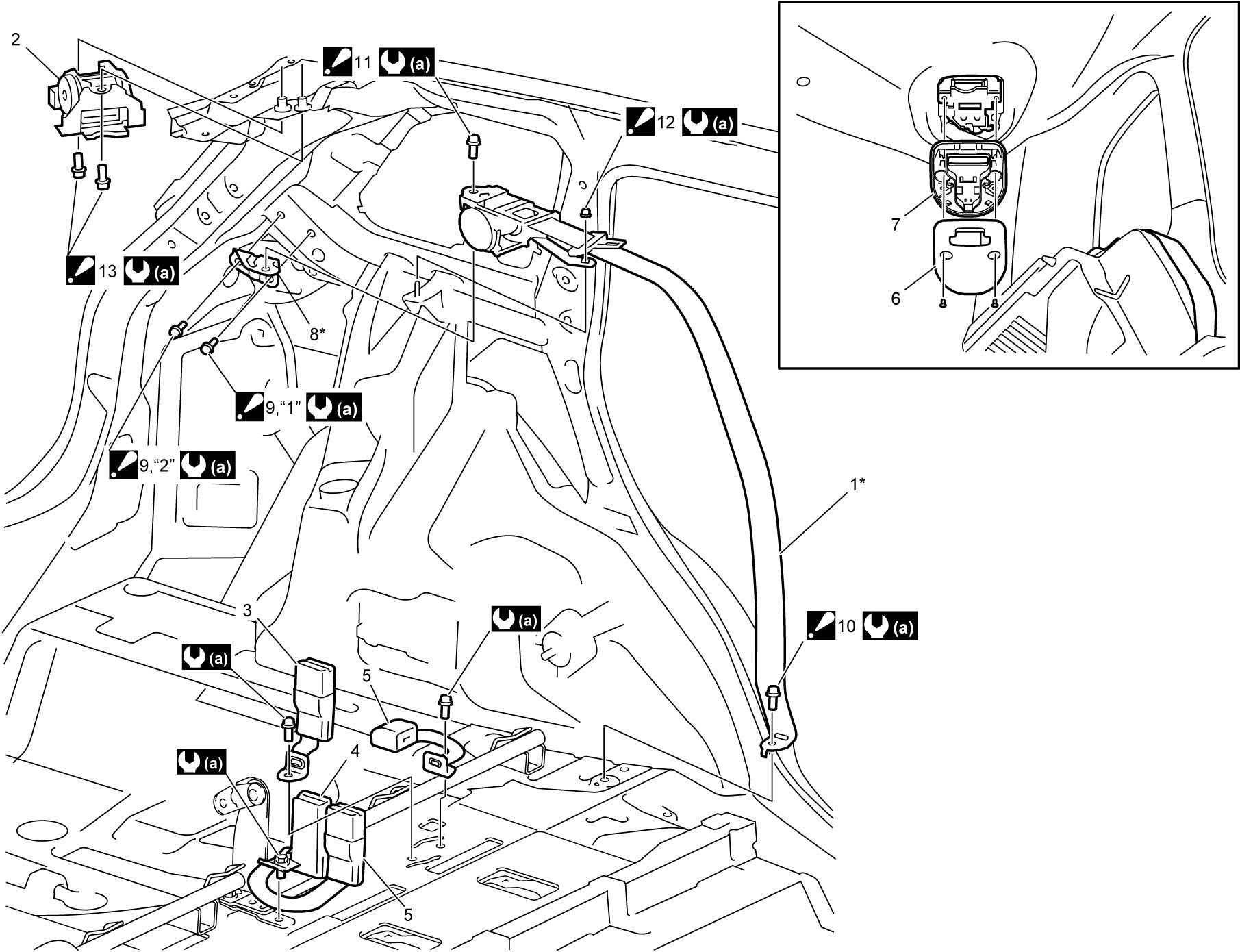

The figure shows left-side rear seat belt and center rear seat belt. For right-side rear seat belt, parts with (*) are installed at the opposite side.
| 1. | Rear seat belt assembly | 6. | Center rear seat belt cover |
 11. |
Rear seat belt bolt No.2 : For tightening order, refer to Rear Seat Belt Assembly Removal and Installation. |
| 2. | Center rear seat belt assembly | 7. | Center rear seat belt holder |
12. |
Rear seat belt nut : For tightening order, refer to Rear Seat Belt Assembly Removal and Installation. |
| 3. | Left-side rear seat belt buckle | 8. | Rear seat belt bracket |
13. |
Center rear seat belt bolt : For tightening order, refer to Center Rear Seat Belt Removal and Installation. |
| 4. | Right-side rear seat belt buckle |
9. |
Rear seat belt bracket bolt : Tightening order: “1” – “2”. |
 : |
43 N·m (4.4 kgf-m, 32.0 lbf-ft) |
| 5. | Center rear seat belt buckle |
10. |
Rear seat belt bolt No.1 : For tightening order, refer to Rear Seat Belt Assembly Removal and Installation. |
