DTC B1062-1B
Precautions: Precautions for Air Bag System Service · Precautions for Handling and Storage of Air Bag System Components · Precautions for Disposal of Air Bag and Seat Belt Pretensioner · Precautions for Restraint · General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
B1062-1B: Passenger Air Bag (1st stage) Circuit High Resistance Passenger air bag (inflator) module circuit resistance is more than specified range. |
•Passenger air bag (inflator) module circuit
•Passenger air bag (inflator) module •SDM |
Circuit Diagram
| [A]: | “G259” connector (View: [a]) | A2: | Passenger air bag (inflator) module deployment signal ground circuit | 2. | SDM |
| [B]: | “L378” connector (View: [a]) | A3: | Passenger air bag (inflator) module deployment signal output circuit | 3. | Shorting bar |
| [C]: | “L04” connector (View: [a]) | A4: | Passenger air bag (inflator) module deployment signal ground circuit | 4. | Floor harness |
| A1: | Passenger air bag (inflator) module deployment signal output circuit | 1. | Passenger air bag (inflator) module | 5. | Instrument panel harness |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Air Bag Diagnostic System Check” performed?
|
Go to Step 2.
|
|
| 2 |

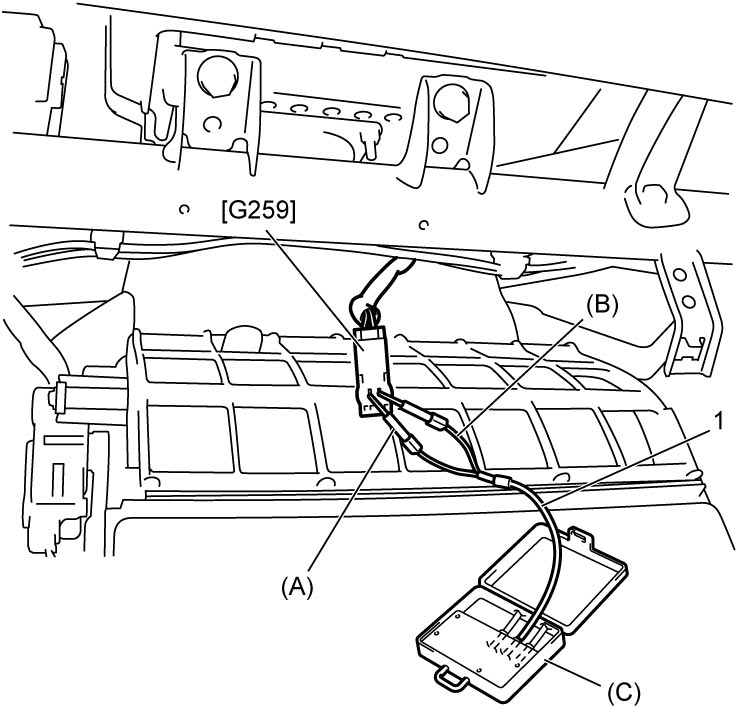

Passenger air bag (inflator) module check
1)Check that ignition is “OFF”.
2)Check for proper connection to “G259” connector.
3)Remove glove box.
4)Disconnect “G259” connector referring to Step 3) of “Removal” under Passenger Air Bag (Inflator) Module Removal and Installation.

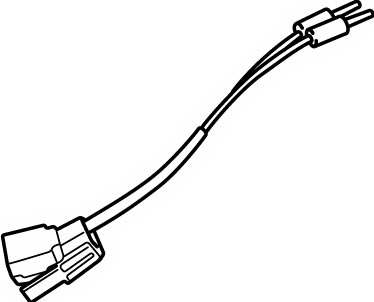

5)Connect “STEERING WHEEL” harness (1) of special tool (C), special tools (A) and (B) to “G259” connector.
6)Set ignition “ON”.
7)Check for DTC.
Is DTC B1062-1B detected?
|
Go to Step 3.
|
Replace passenger air bag (inflator) module.
|
| 3 |

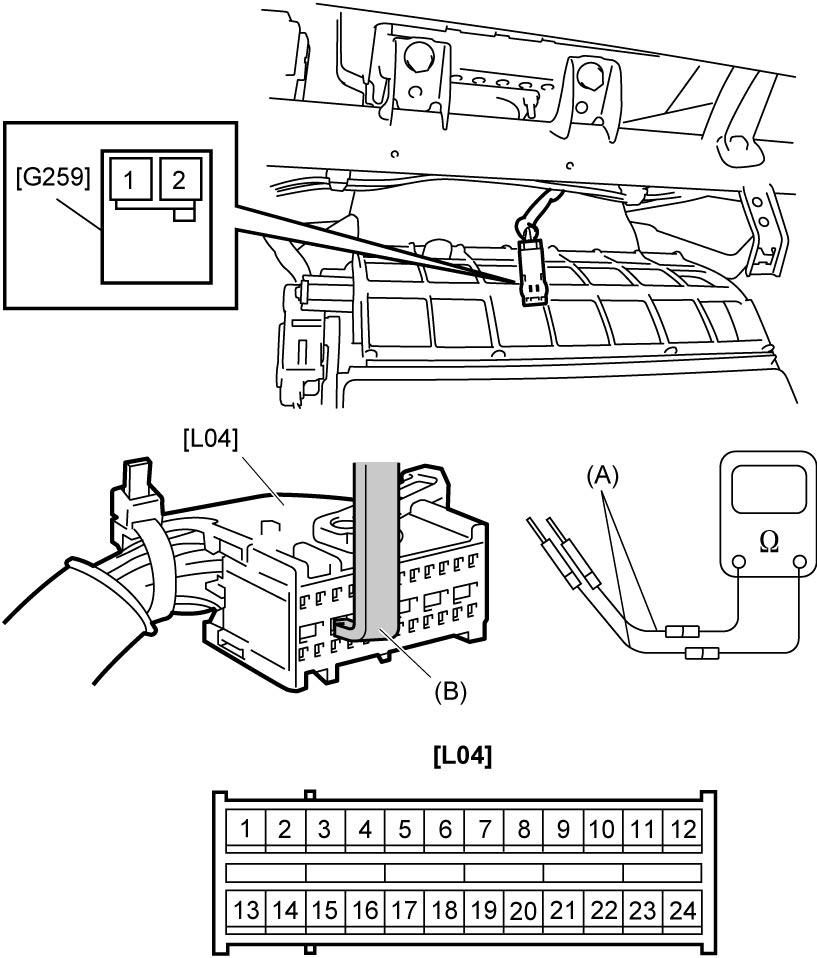

Passenger air bag (inflator) module circuit check
1)Set ignition “OFF”.
2)Check for proper connection to “L04” connector.
3)Disconnect “L04” connector.
4)Release shorting bar in SDM connector inserting release tool (B).
5)Check the following points.
•Resistance between “L04-16” and “G259-1” terminals: 1 Ω or less
•Resistance between “L04-15” and “G259-2” terminals: 1 Ω or less  Is check result OK?
|
Replace SDM and recheck DTC.
|
Go to Step 4.
|
| 4 |

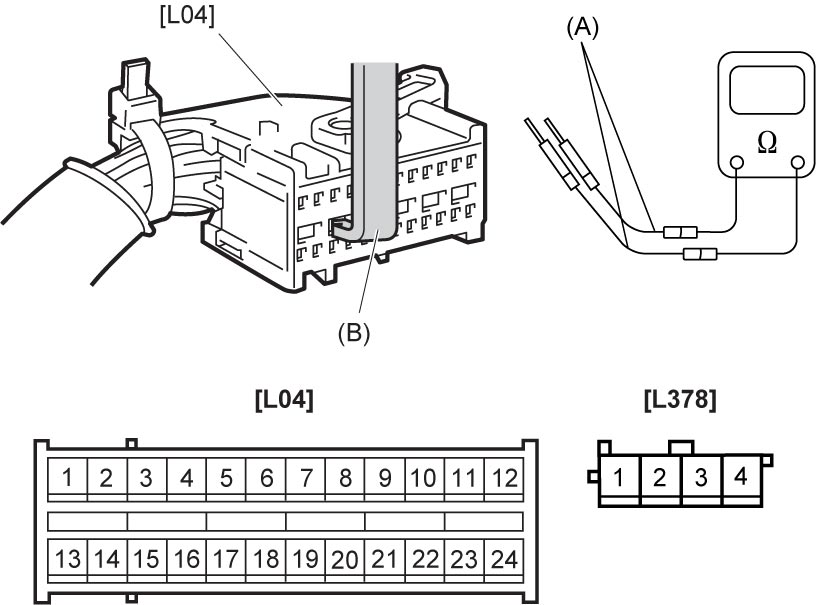

Floor harness circuit check
1)Check for proper connection to “L378” connector.
2)Disconnect “L378” connector.
3)Release shorting bar in SDM connector inserting release tool (B).
4)Check the following point.
•Resistance of “A3” and “A4” circuits: 1 Ω or less
 Is check result OK?
|
Replace instrument panel harness.
|
Replace floor harness.
|
NOTE:
Upon completion of inspection and repair work, perform the following items.
•Reconnect all air bag system components and check that all components are properly mounted.
•Clear DTCs, referring to DTC Clearance if any DTC is detected.
•Repeat Air Bag Diagnostic System Check to check that the trouble has been solved.
•Clear DTCs, referring to DTC Clearance if any DTC is detected.
•Repeat Air Bag Diagnostic System Check to check that the trouble has been solved.
