DTC B1071-15 / B1072-15
Precautions: Precautions for Air Bag System Service · Precautions for Handling and Storage of Air Bag System Components · Precautions for Disposal of Air Bag and Seat Belt Pretensioner · Precautions for Restraint · General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
B1071-15: Left-Side Rear Seat Belt Pretensioner Circuit Shorted to Power Supply Left-side rear seat belt pretensioner circuit has been shorted to power supply. |
•Left-side and/or right-side rear seat belt pretensioner circuit
•SDM |
|
B1072-15: Right-Side Rear Seat Belt Pretensioner Circuit Shorted to Power Supply Right-side rear seat belt pretensioner circuit has been shorted to power supply. |
Circuit Diagram
| [A]: | LHD model | A2. | Left-side rear seat belt pretensioner operation signal ground circuit | 3. | SDM |
| [B]: | RHD model | A3. | Right-side rear seat belt pretensioner operation signal output circuit | 4. | Shorting bar |
| [C]: | “L275” and “L276” connector (View: [a]) | A4. | Right-side rear seat belt pretensioner operation signal ground circuit | 5. | Floor harness |
| [D]: | ““L05” connector (View: [a]) | 1. | Left-side rear seat belt pretensioner | ||
| A1. | Left-side rear seat belt pretensioner operation signal output circuit | 2. | Right-side rear seat belt pretensioner |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Air Bag Diagnostic System Check” performed?
|
Go to Step 2.
|
|
| 2 |
Floor harness circuit check
1)Check that ignition is “OFF”.
2)Disconnect “L275” or “L276” connector.
3)Disconnect “L05” connector.

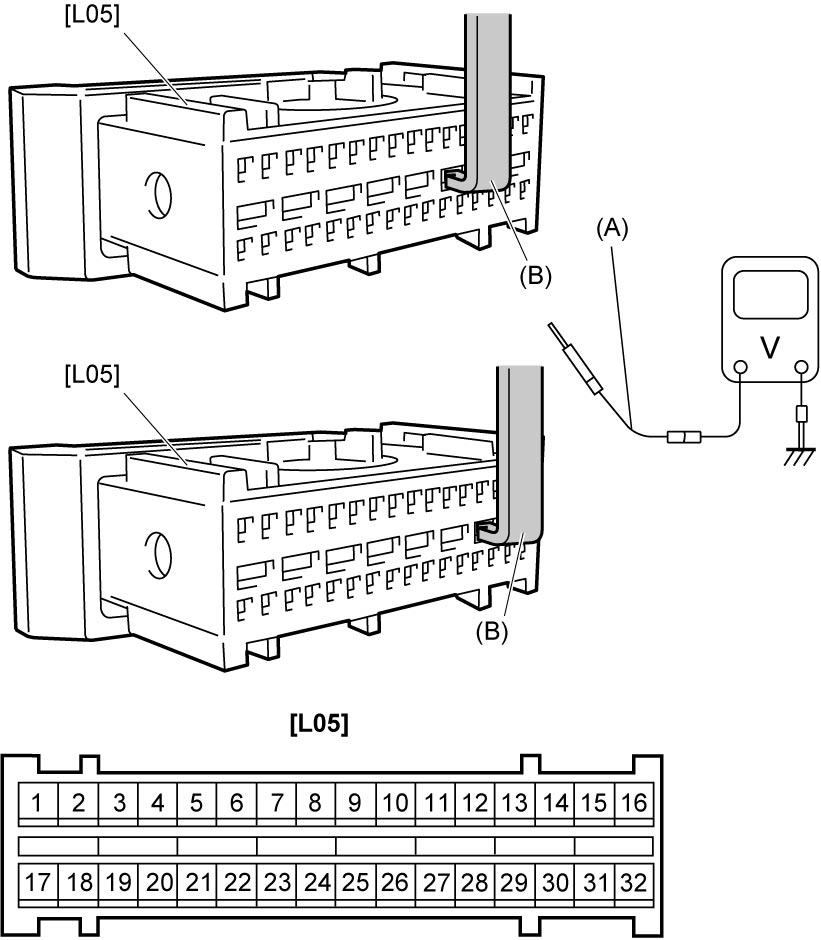

4)Release shorting bar in SDM connector inserting release tool included in special tool (A).
5)Set ignition “ON”.
6)Check the following points.
•Voltage between each of “A1” and “A2” circuits and ground (DTC B1071-15): 0 V
•Voltage between each of “A3” and “A4” circuits and ground (DTC B1072-15): 0 V  Is check result OK?
|
Replace SDM and recheck DTC.
|
Replace floor harness.
|
NOTE:
Upon completion of inspection and repair work, perform the following items.
•Reconnect all air bag system components and check that all components are properly mounted.
•Clear DTCs, referring to DTC Clearance if any DTC is detected.
•Repeat Air Bag Diagnostic System Check to check that the trouble has been solved.
•Clear DTCs, referring to DTC Clearance if any DTC is detected.
•Repeat Air Bag Diagnostic System Check to check that the trouble has been solved.
