Knee Air Bag (Inflator) Module Inspection (9 or 11-Channel Air Bag System)
Precautions: Precautions for Air Bag System Service · Precautions for Handling and Storage of Air Bag System Components · Precautions for Disposal of Air Bag and Seat Belt Pretensioner · Precautions for Restraint · General safety (00)
WARNING:
Failure to take proper precautions when checking the knee air bag (inflator) module can result in personal injury due to accidental deployment of the air bag.

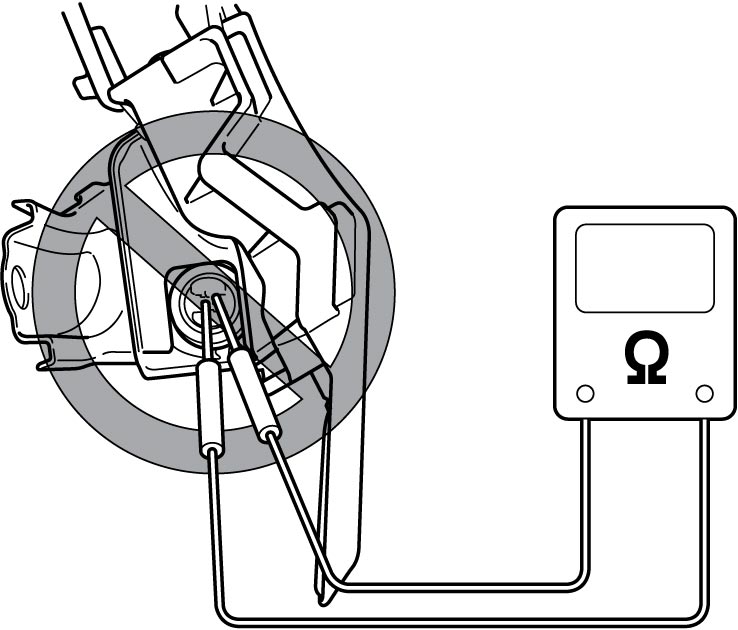

Never measure the resistance of the air bag (inflator) module.
Check air bag (inflator) module and if any of the following conditions is found, replace air bag (inflator) module with new one.
•Air bag has being deployed.
•Air bag (inflator) module is damaged or a strong impact was applied to it.
•Connector being damaged.
•Bend or deformation of air bag (inflator) module bracket.
•Air bag (inflator) module is damaged or a strong impact was applied to it.
•Connector being damaged.
•Bend or deformation of air bag (inflator) module bracket.
