Door, Roof
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

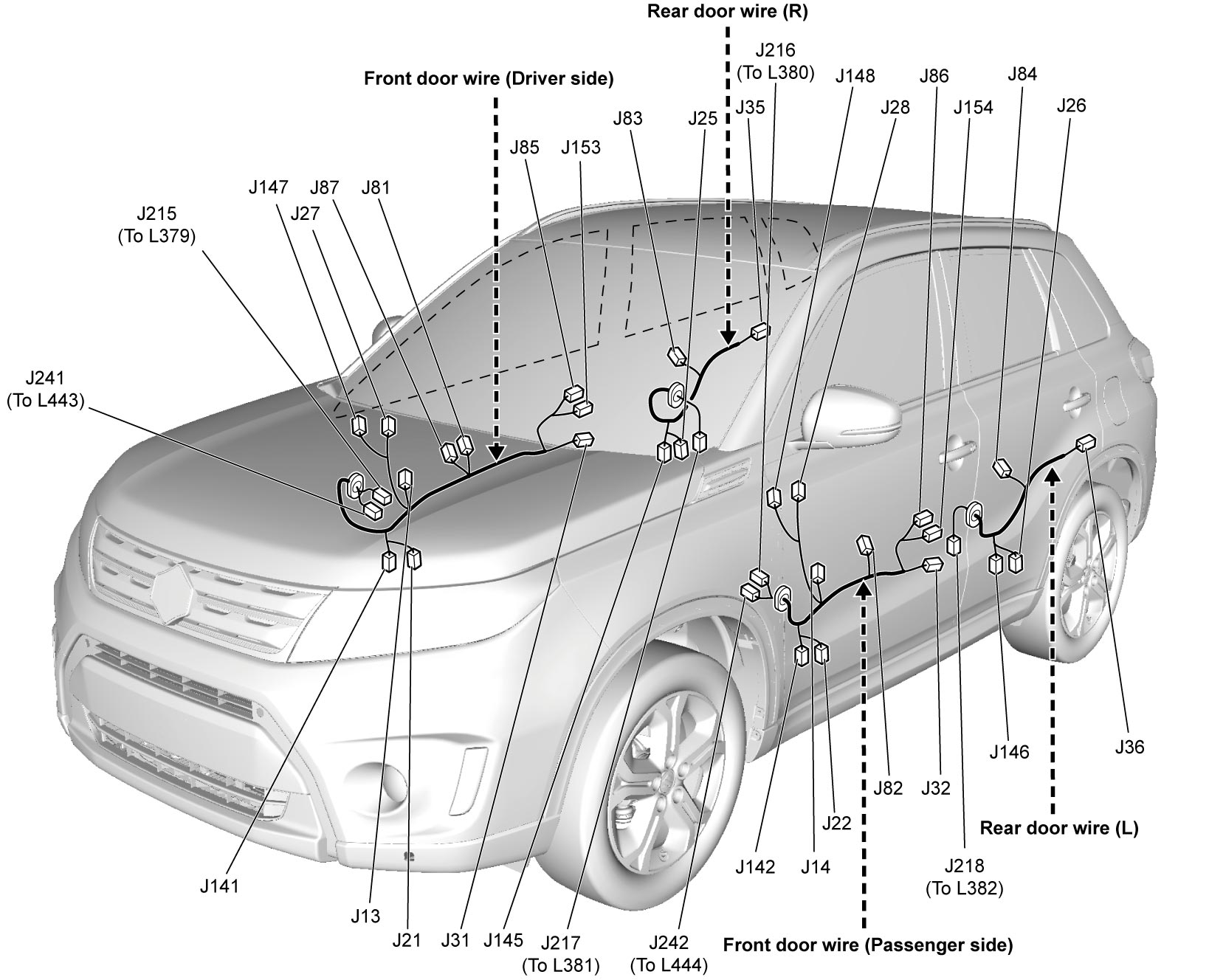

J: Front and Rear Door Wire (RHD)
J: Front door wire (Drive side)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J13 | GRY | Driver-side front side-impact sensor | Door type and 9 or 11-channel |
| J21 | BLK | Front power window motor (Driver side) | |
| J27 | N | Power mirror assembly (Driver side) | |
| J31 | N | Door lock switch & motor (Driver side) | |
| J81 | BLK | Power window & door lock main switch | |
| J85 | N | Door request switch (Driver side) | Keyless push start model |
| J87 | N | Power mirror switch | |
| J141 | N | Front speaker (R) | |
| J147 | BLK | Tweeter (R) | If equipped |
| J153 | BLU | Driver outside antenna | Keyless push start model |
| J215 | N | Floor harness (To L379) | |
| J241 | N | Floor harness (To L443) |
J: Front door wire (Passenger side)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J14 | GRY | Passenger-side front side-impact sensor | Door type and 9 or 11-channel |
| J22 | BLK | Front power window motor (Passenger side) | |
| J28 | N | Power mirror assembly (Passenger side) | |
| J32 | N | Door lock switch & motor (Passenger side) | |
| J82 | N | Power window sub switch | |
| J86 | N | Door request switch (Passenger side) | Keyless push start model |
| J142 | N | Front speaker (L) | |
| J148 | BLK | Tweeter (L) | If equipped |
| J154 | BLU | Front-passenger outside antenna | Keyless push start model |
| J216 | N | Floor harness (To L380) | |
| J242 | N | Floor harness (To L444) |
J: Rear door wire (R)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J25 | BLK | Rear power window motor (R) | |
| J35 | N | Rear door lock switch & motor (R) | |
| J83 | N | Rear power window sub switch (R) | |
| J145 | N | Rear speaker (R) | |
| J217 | N | Floor harness (To L381) |
J: Rear door wire (L)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J26 | BLK | Rear power window motor (L) | |
| J36 | N | Rear door lock switch & motor (L) | |
| J84 | N | Rear power window sub switch (L) | |
| J146 | N | Rear speaker (L) | |
| J218 | N | Floor harness (To L382) |

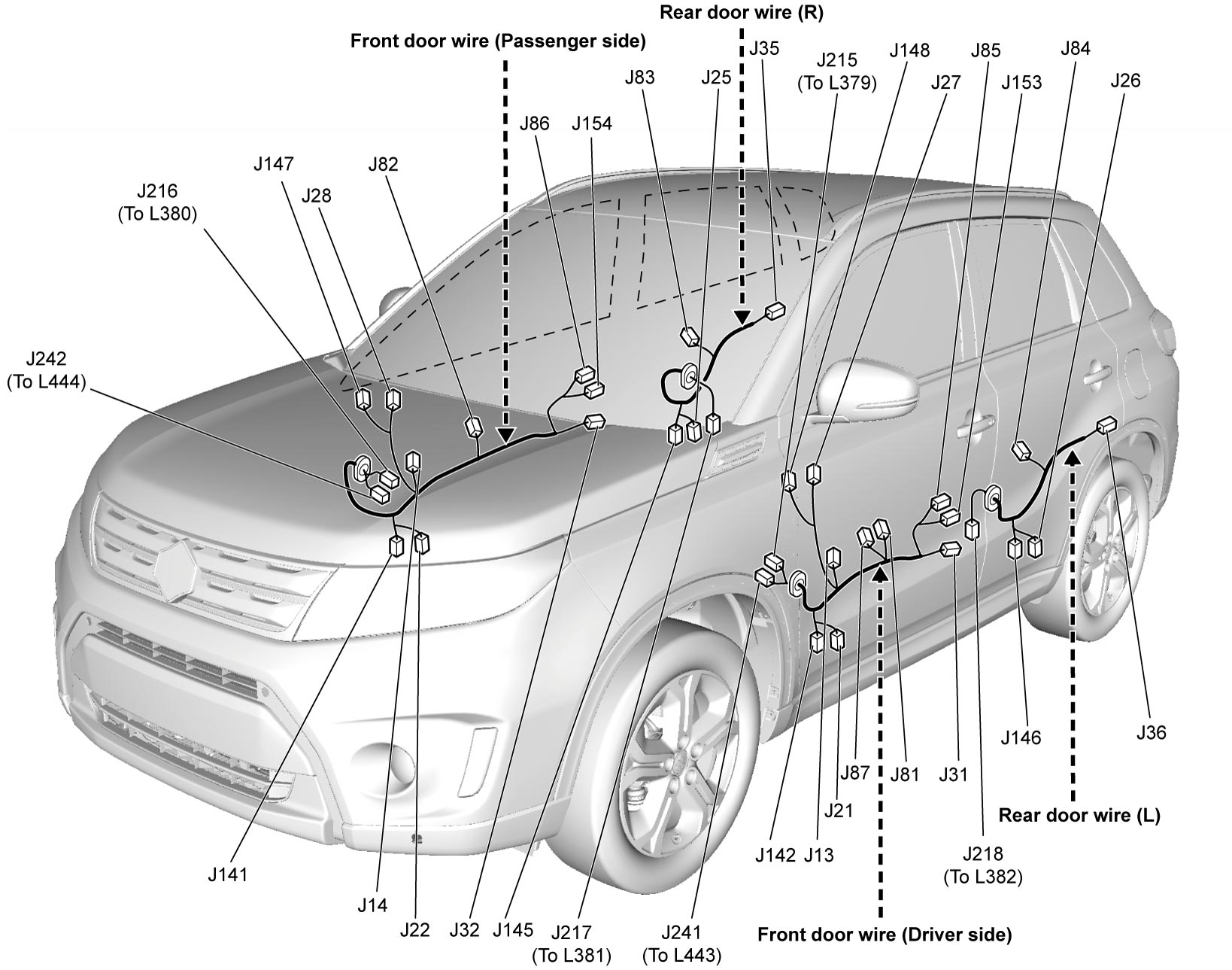

J: Front and Rear Door Wire (LHD)
J: Front door wire (Drive side)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J13 | GRY | Driver-side front side-impact sensor | Door type and 9 or 11-channel |
| J21 | BLK | Front power window motor (Driver side) | |
| J27 | N | Power mirror assembly (Driver side) | |
| J31 | N | Door lock switch & motor (Driver side) | |
| J81 | BLK | Power window & door lock main switch | |
| J85 | N | Door request switch (Driver side) | Keyless push start model |
| J87 | N | Power mirror switch | |
| J142 | N | Front speaker (L) | |
| J148 | BLK | Tweeter (L) | If equipped |
| J153 | BLU | Driver outside antenna | Keyless push start model |
| J215 | N | Floor harness (To L379) | |
| J241 | N | Floor harness (To L443) |
J: Front door wire (Passenger side)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J14 | GRY | Passenger-side front side-impact sensor | Door type and 9 or 11-channel |
| J22 | BLK | Front power window motor (Passenger side) | |
| J28 | N | Power mirror assembly (Passenger side) | |
| J32 | N | Door lock switch & motor (Passenger side) | |
| J82 | N | Power window sub switch | |
| J86 | N | Door request switch (Passenger side) | Keyless push start model |
| J141 | N | Front speaker (R) | |
| J147 | BLK | Tweeter (R) | If equipped |
| J154 | BLU | Front-passenger outside antenna | Keyless push start model |
| J216 | N | Floor harness (To L380) | |
| J242 | N | Floor harness (To L444) |
J: Rear door wire (R)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J25 | BLK | Rear power window motor (R) | |
| J35 | N | Rear door lock switch & motor (R) | |
| J83 | N | Rear power window sub switch (R) | |
| J145 | N | Rear speaker (R) | |
| J217 | N | Floor harness (To L381) |
J: Rear door wire (L)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| J26 | BLK | Rear power window motor (L) | |
| J36 | N | Rear door lock switch & motor (L) | |
| J84 | N | Rear power window sub switch (L) | |
| J146 | N | Rear speaker (L) | |
| J218 | N | Floor harness (To L382) |

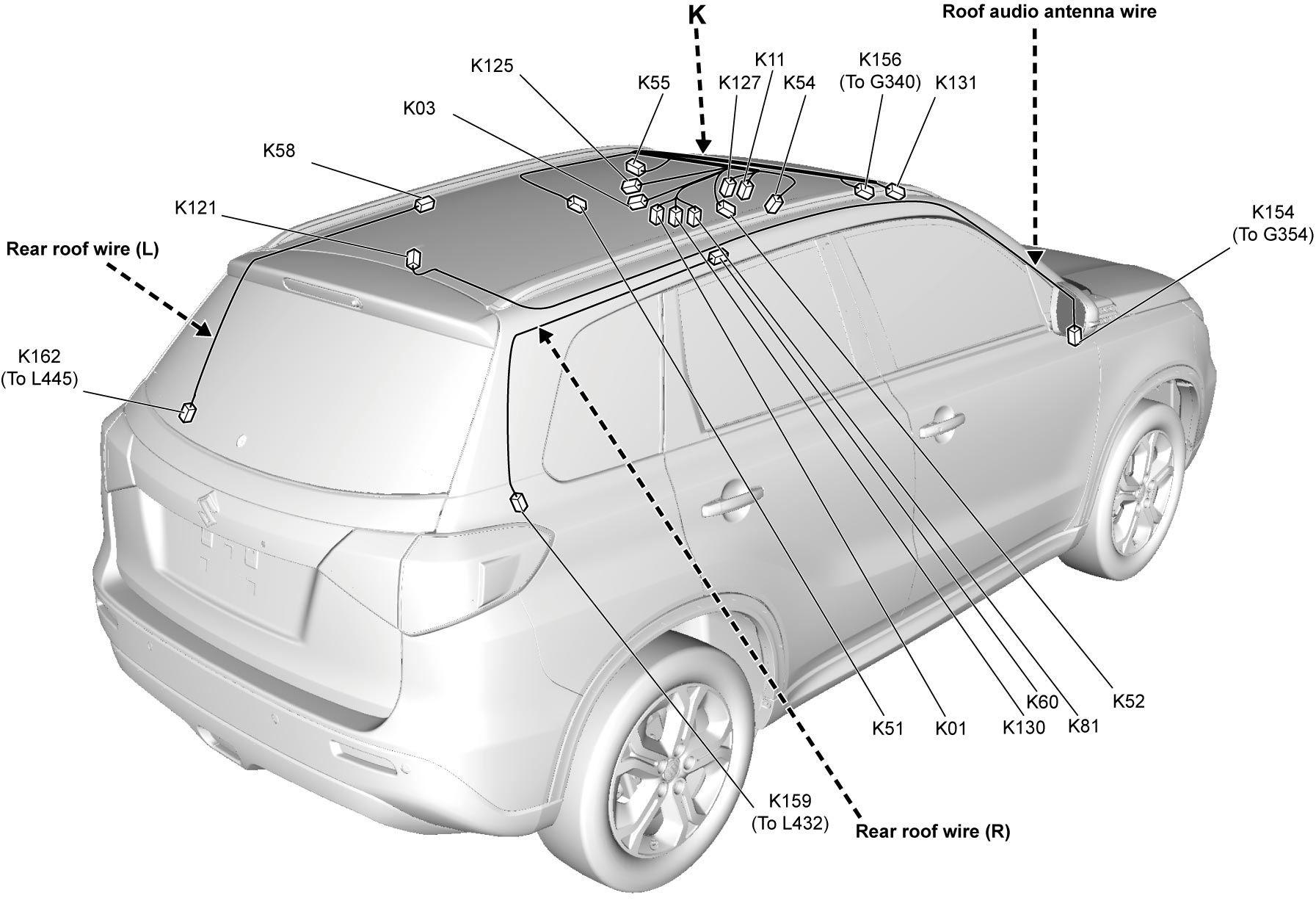

K: Roof Wire, Roof Audio Antenna Wire, Rear Roof Wire, Rear Roof Wire
K: Roof wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| K01 | GRY | Sun roof motor (For sun roof glass) | With sun roof |
| K03 | GRY | Sun roof motor (For sunshade) | With sun roof |
| K11 | GRN | Rain / light sensor | If equipped |
| K51 | N | Dome light | If equipped |
| K52 | N | Spot light | If equipped |
| K54 | N | Vanity light (R) | |
| K55 | N | Vanity light (L) | |
| K81 | N | Sun roof switch | With sun roof |
| K125 | N | Console (Spot light) | If equipped |
| K127 | BLK | Auto-dimming rearview mirror | If equipped |
| K130 | N | Microphone unit | If equipped |
| K131 | N | J/B | |
| K156 | N | Instrument panel harness (To G340) |
K: Rear roof wire (R)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| K60 | N | Rear dome light (R) | With sun roof |
| K159 | N | Floor harness (To L432) | With sun roof |
K: Rear roof wire (L)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| K58 | N | Rear dome light (L) | With sun roof |
| K162 | N | Floor harness (To L445) | With sun roof |
K: Roof audio antenna wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| K121 | - | Roof audio antenna amplifier | |
| K154 | - | Instrument panel antenna wire (To G354) |
