Floor
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

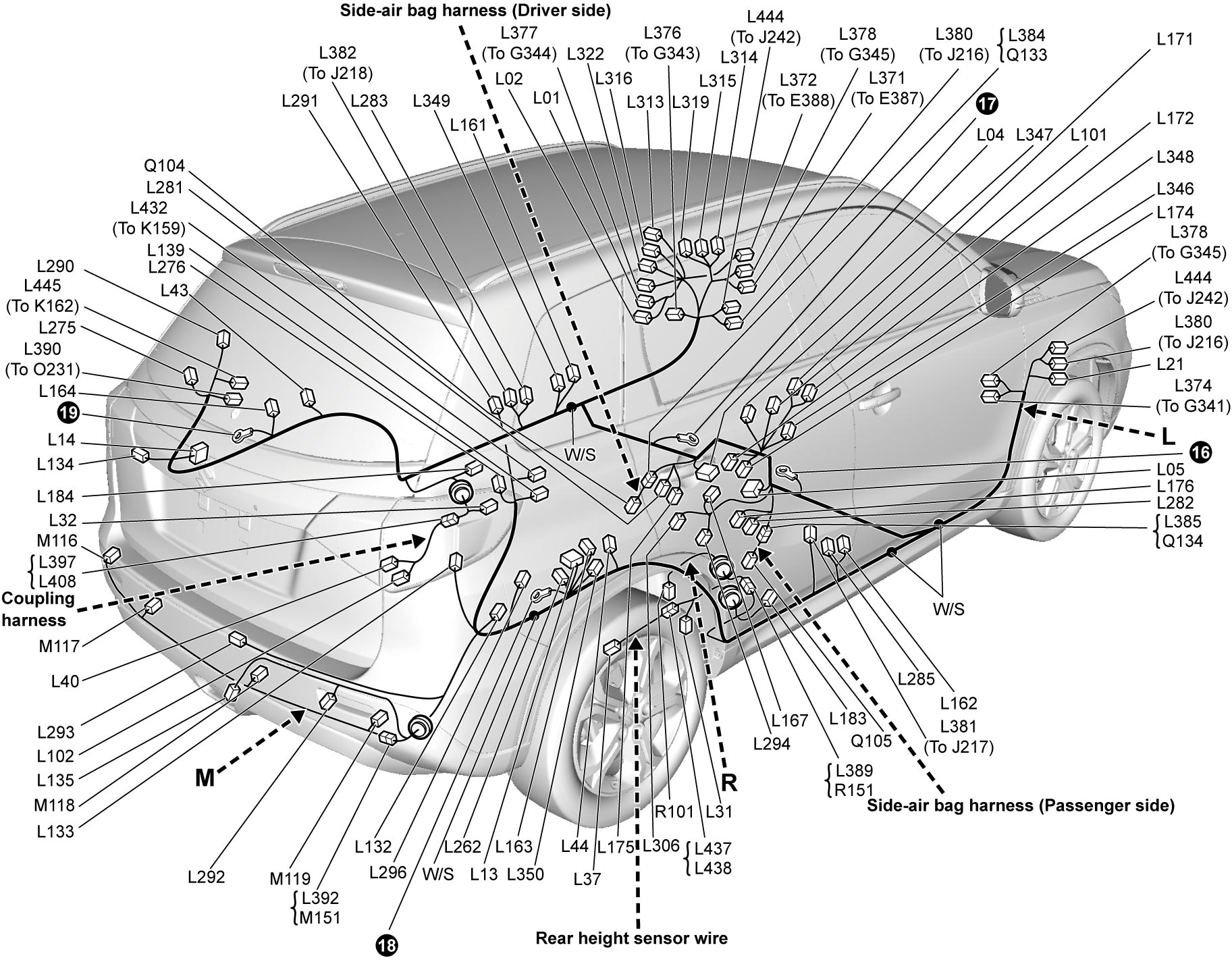

L: Floor Harness, Rear Height Sensor Wire, Coupling Harness / M: Rear Bumper Wire / Q: Side Air Bag Harness (Driver Side), Side Air Bag Harness (Passenger Side) / R: Fuel Pump Wire (RHD)

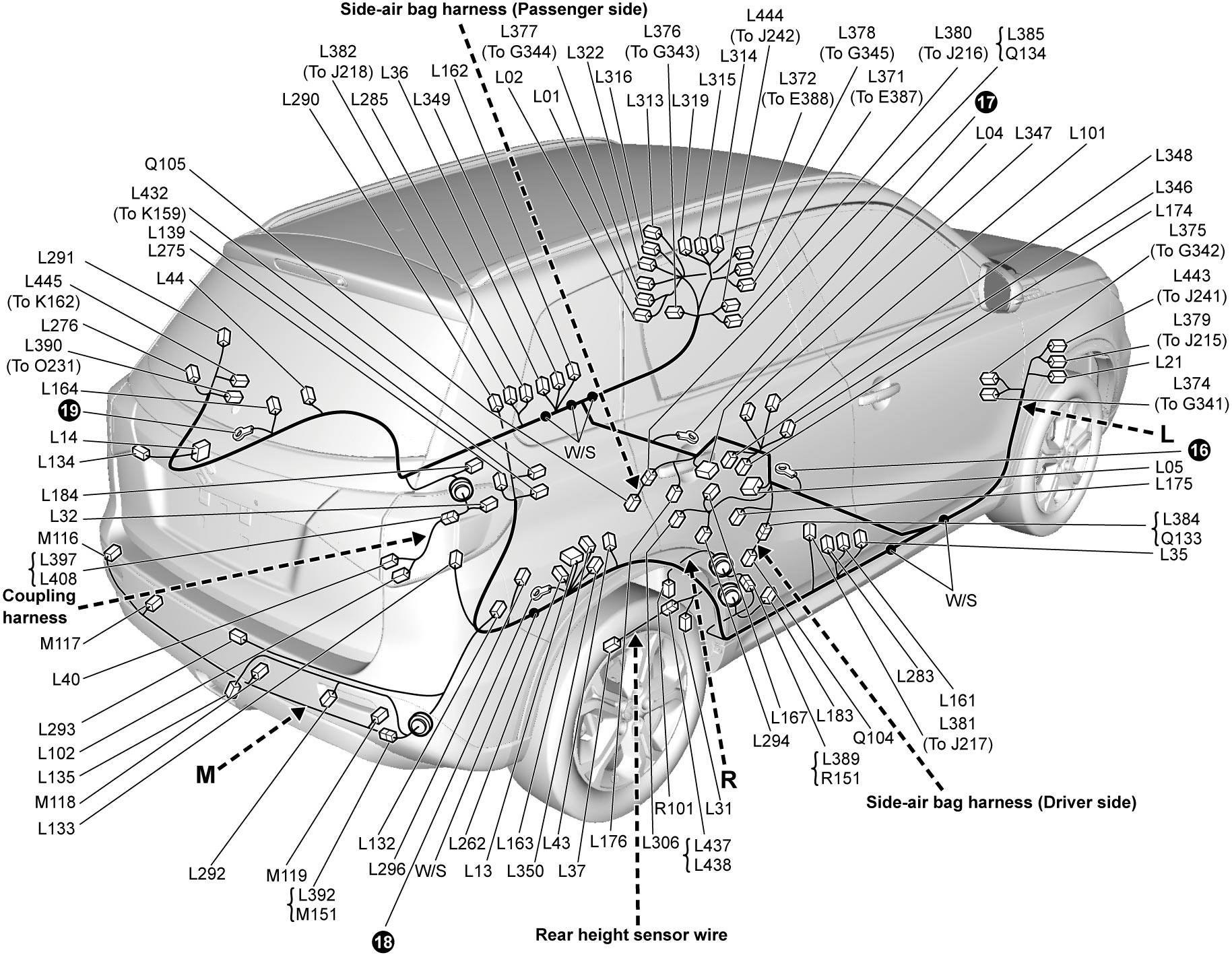

L: Floor Harness, Rear Height Sensor Wire, Coupling Harness / M: Rear Bumper Wire / Q: Side Air Bag Harness (Driver Side), Side Air Bag Harness (Passenger Side) / R: Fuel Pump Wire (LHD)
L: Floor harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| L01 | BLK | BCM | |
| L02 | GRY | BCM | |
| L04 | BRN or GRY or BLK | SDM | |
| L05 | BLK or GRY | SDM | |
| L13 | N | Parking sensor system control module | With parking sensor system |
| L14 | N | 4WD control module | 4WD model |
| L21 | N | Keyless entry control module / Keyless start control module | |
| L31 | GRY | Wheel speed sensor (Rear-right) | |
| L32 | GRY | Wheel speed sensor (Rear-left) | |
| L35 | ORN | Driver-side front side-impact sensor | Floor type and 9 or 11-channel |
| L36 | ORN | Passenger-side front side-impact sensor | Floor type and 9 or 11-channel |
| L43 | ORN | Driver-side rear side-impact sensor | 9 or 11-channel |
| L44 | ORN | Passenger-side rear side-impact sensor | 9 or 11-channel |
| L101 | N | Select lever assembly (A/T shift lock solenoid, O/D OFF switch, P position switch) | A/T model |
| GRY | Select lever assembly (Shift lock solenoid, P position switch) | Twin clutch system model | |
| L132 | GRY | Luggage compartment light | |
| L133 | N | Rear combination light (R) | |
| L134 | N | Rear combination light (L) | |
| L135 | N | Rear fog light | If equipped |
| L139 | N | High mounted stop light | |
| L161 | N | Front door switch (Driver side) | |
| L162 | N | Front door switch (Passenger side) | |
| L163 | N | Rear door switch (R) | |
| L164 | N | Rear door switch (L) | |
| L167 | BLK | Parking brake switch | |
| L171 | N | Seat heater switch (Driver side) | With seat heater |
| L172 | BLK | Seat heater switch (Passenger side) | With seat heater |
| L174 | N | Driving mode switch | 4WD model |
| L175 | N | Seat belt switch (Driver side) | Without seat heater |
| L176 | N | Seat belt switch (Passenger side) | Without seat heater |
| L183 | N | Rear seat belt switch (R) | |
| L184 | N | Rear seat belt switch (L) | |
| L262 | N | Parking sensor rear buzzer | |
| L275 | BLK | Driver-side rear seat belt pretensioner | 11-channel |
| L276 | BLK | Passenger-side rear seat belt pretensioner | 11-channel |
| L281 | N | Seat heater with seat belt switch (Driver side) | With seat heater |
| L282 | N | Seat heater with seat belt switch (Passenger side) | With seat heater |
| L283 | BLK | Driver seat belt pretensioner | |
| L285 | BLK | Front-passenger seat belt pretensioner | |
| L290 | BLK | Driver-side curtain air bag (inflator) module | 9 or 11-channel |
| L291 | BLK | Passenger-side curtain air bag (inflator) module | 9 or 11-channel |
| L292 | GRY | Rear outside antenna | Keyless push start model |
| L293 | BLK | Rear inside antenna | Keyless push start model |
| L294 | N | Mid inside antenna | Keyless push start model |
| L296 | BLK | Rear accessory socket | If equipped |
| L306 | BLK | TPMS control module | If equipped |
| L313 | YEL | J/B | |
| L314 | N | J/B | |
| L315 | N | J/B | |
| L316 | N | J/B | |
| L319 | N | J/B | |
| L322 | GRY | J/B | |
| L346 | BLU | J/C | |
| L347 | BRN | J/C | |
| L348 | BLU | J/C | |
| L349 | BLU | J/C | |
| L350 | N | J/C | With parking sensor |
| L371 | N | Main harness (To E387) | |
| L372 | YEL | Main harness (To E388) | |
| L374 | N | Instrument panel harness (To G341) | |
| L375 | YEL | Instrument panel harness (To G342) | |
| L376 | BLK | Instrument panel harness (To G343) | |
| L377 | YEL | Instrument panel harness (To G344) | |
| L378 | YEL | Instrument panel harness (To G345) | |
| L379 | N | Front door wire (Driver side) (To J215) | |
| L380 | N | Front door wire (Passenger side) (To J216) | |
| L381 | N | Rear door wire (R) (To J217) | |
| L382 | N | Rear door wire (L) (To J218) | |
| L384 | YEL | Side air bag harness (Driver side) (To Q133) | 9 or 11-channel |
| L385 | YEL | Side air bag harness (Passenger side) (To Q134) | 9 or 11-channel |
| L389 | GRY | Fuel pump wire (To R151) | |
| L390 | N | Rear end door harness (To O231) | |
| L392 | BLK | Rear bumper wire (To M151) | With parking sensor system |
| L397 | GRY | Coupling harness (To L408) | 4WD model |
| L432 | N | Rear roof wire (R) (To K159) | With sun roof |
| L437 | GRY | Rear height sensor wire (To L438) | Headlight auto leveling |
| L443 | N | Front door wire (Driver side) (To J241) | |
| L444 | N | Front door wire (Passenger side) (To J242) | |
| L445 | N | Rear roof wire (L) (To K162) | With sun roof |
L: Rear height sensor wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| L37 | BLK | Rear vehicle height sensor | Headlight auto leveling |
| L438 | GRY | Floor harness (To L437) | Headlight auto leveling |
L: Coupling harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| L40 | BLK | Coupling air temperature sensor | 4WD model |
| L102 | GRY | Coupling solenoid | 4WD model |
| L408 | GRY | Floor harness (To L397) | 4WD model |
M: Rear bumper wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| M116 | BLK | Rear parking sensor No.1 | With parking sensor system |
| M117 | BLK | Rear parking sensor No.2 | With parking sensor system |
| M118 | BLK | Rear parking sensor No.3 | With parking sensor system |
| M119 | BLK | Rear parking sensor No.4 | With parking sensor system |
| M151 | BLK | Floor harness (To L392) | With parking sensor system |
Q: Side air bag harness (Driver side)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| Q104 | YEL | Driver-side side-air bag (inflator) module | 9 or 11-channel |
| Q133 | YEL | Floor harness (To L384) | 9 or 11-channel |
Q: Side air bag harness (Passenger side)
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| Q105 | YEL | Passenger-side side-air bag (inflator) module | 9 or 11-channel |
| Q134 | YEL | Floor harness (To L385) | 9 or 11-channel |
R: Fuel pump wire
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| R101 | BLK | Fuel pump and gauge | |
| R151 | GRY | Floor harness (To L389) |
