Rear
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

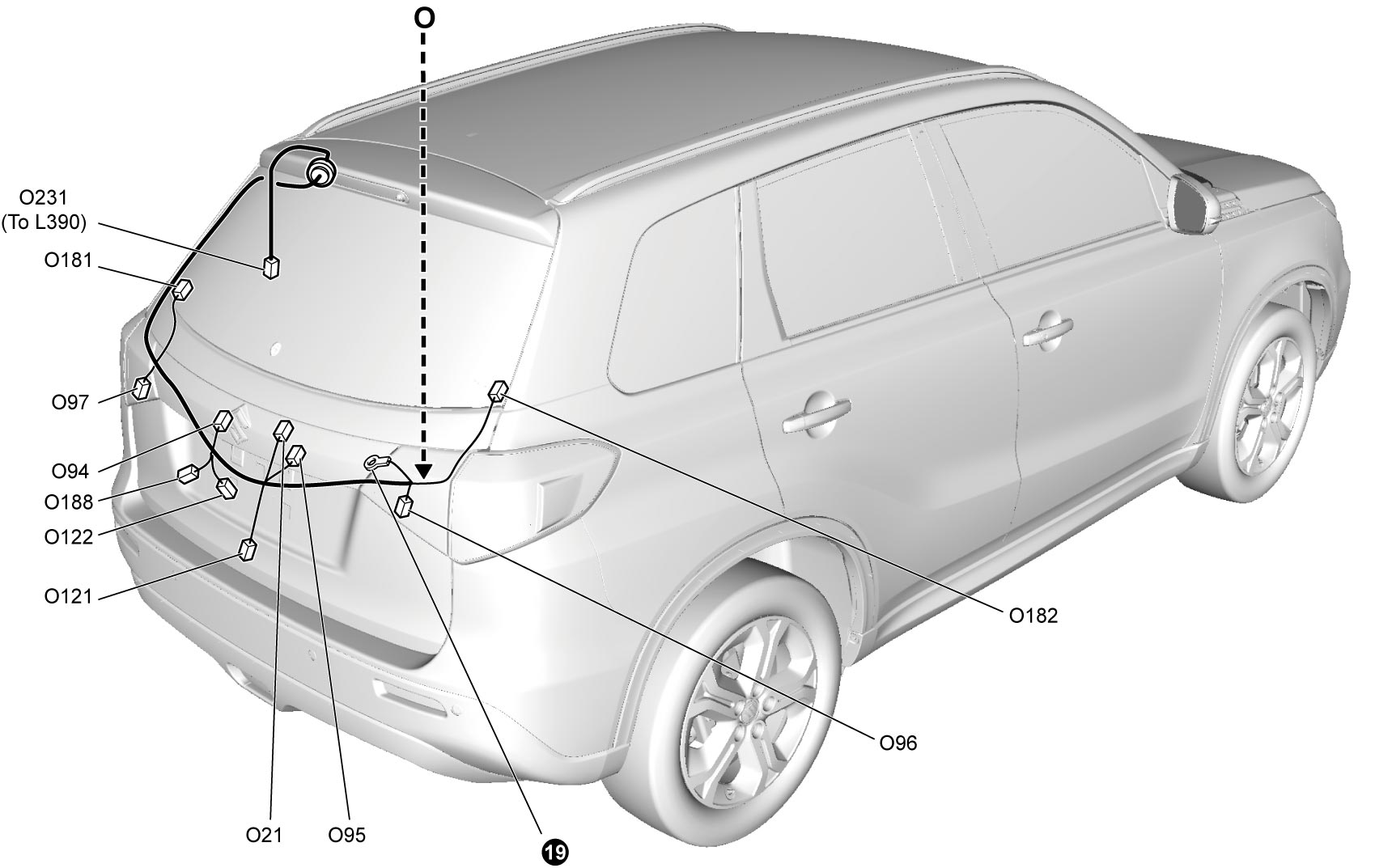

O: Rear End Door Harness
O: Rear end door harness
| No. | Color | Connective position | Remarks |
|---|---|---|---|
| O21 | N | Rear wiper motor | |
| O94 | N | License plate light No.1 | |
| O95 | N | License plate light No.2 | |
| O96 | GRY | Back up light (R) | |
| O97 | GRY | Back up light (L) | |
| O121 | N | Rear end door lock switch & motor | |
| O122 | N | Rear end door request switch | |
| O181 | BLK | Rear defogger (+) | |
| O182 | BLK | Rear defogger (–) | |
| O188 | N | Rearview camera unit | If equipped |
| O231 | N | Floor harness (To L390) |
