Around Engine
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

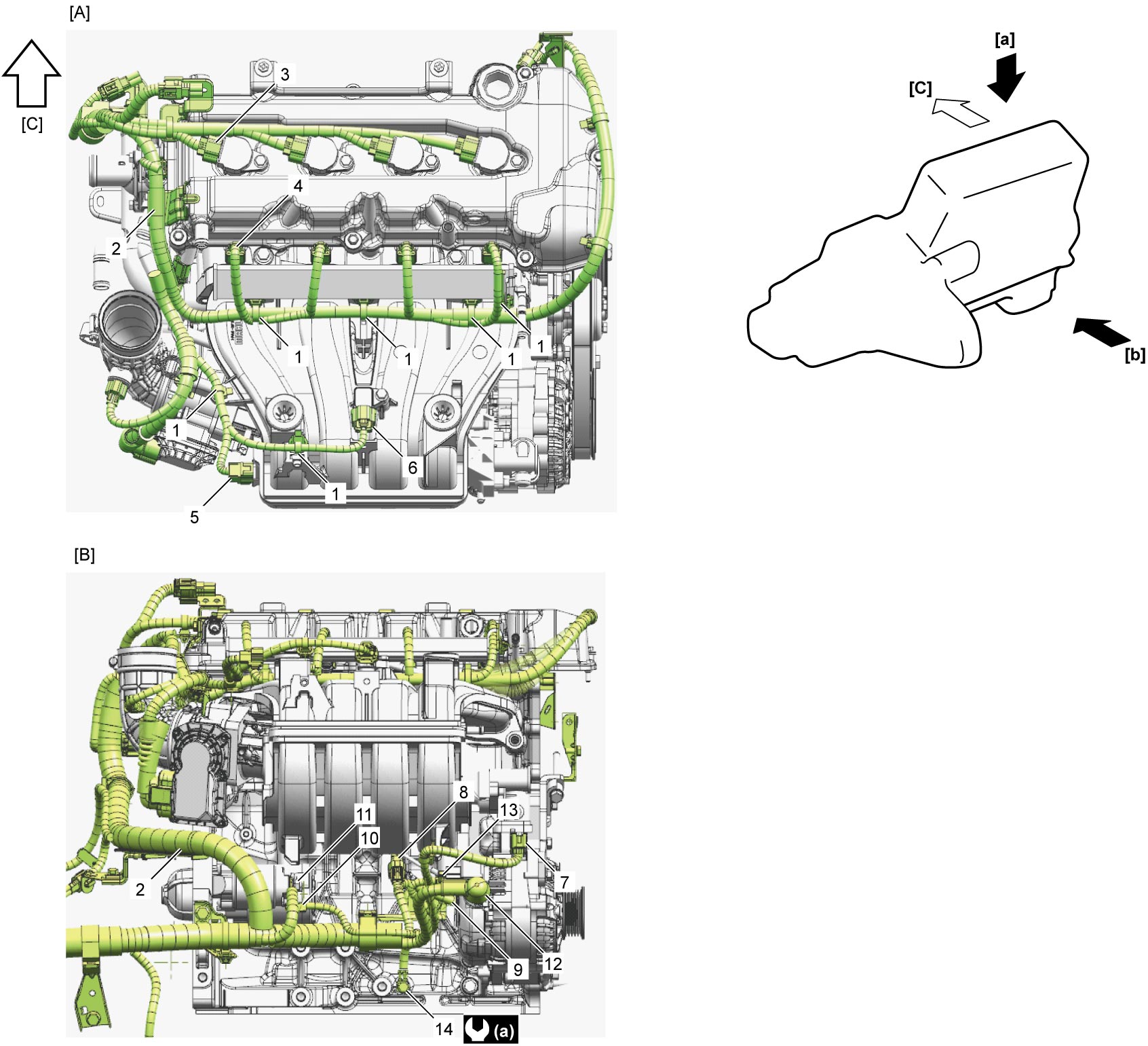

Engine Harness (M16A)
| [A]: | View [a] | 4. | Fuel injector | 10. | Starting motor (+B) |
| [B]: | View [b] | 5. | EVAP canister purge valve | 11. | Starting motor |
| [C]: | Forward | 6. | MAP sensor | 12. | Generator (+B) |
| 1. | Clamp | 7. | OCV | 13. | Generator |
| 2. | Engine harness | 8. | Knock sensor | 14. | GND bolt |
| 3. | Ignition coil | 9. | CKP sensor |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |

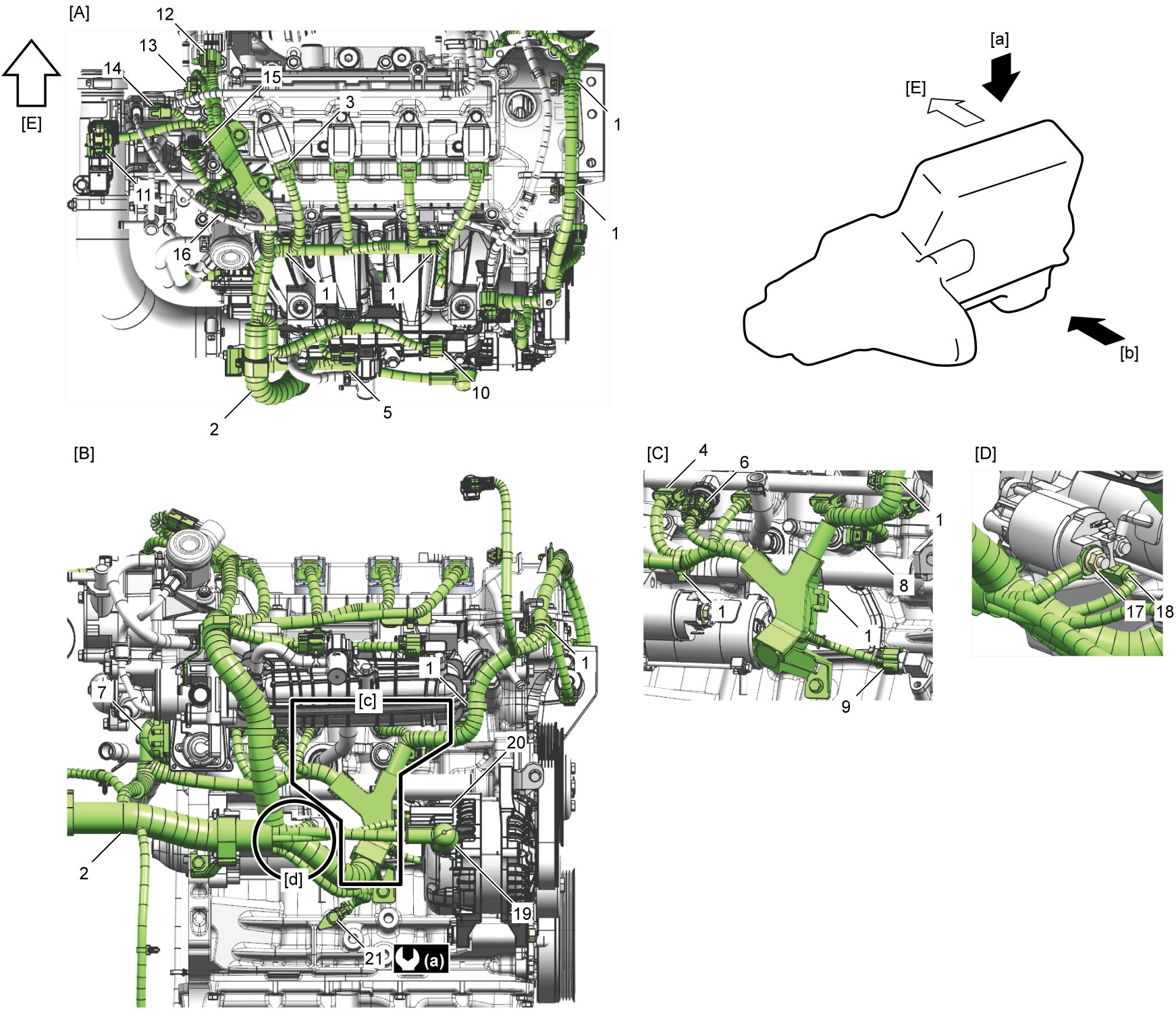

Engine Harness (K14C)
| [A]: | View [a] | 5. | EVAP canister purge valve | 14. | Waste gate valve |
| [B]: | View [b] | 6. | Fuel pressure sensor | 15. | CMP sensor |
| [C]: | View [c] | 7. | Electric throttle body | 16. | High pressure pump |
| [D]: | View [d] | 8. | Knock sensor | 17. | Starting motor (+B) |
| [E]: | Forward | 9. | CKP sensor | 18. | Starting motor |
| 1. | Clamp | 10. | MAF and IAT sensor | 19. | Generator (+B) |
| 2. | Engine harness | 11. | Boost pressure sensor | 20. | Generator |
| 3. | Ignition coil | 12. | HO2S-1 | 21. | GND bolt |
| 4. | Fuel injector | 13. | ECT sensor |
: |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |

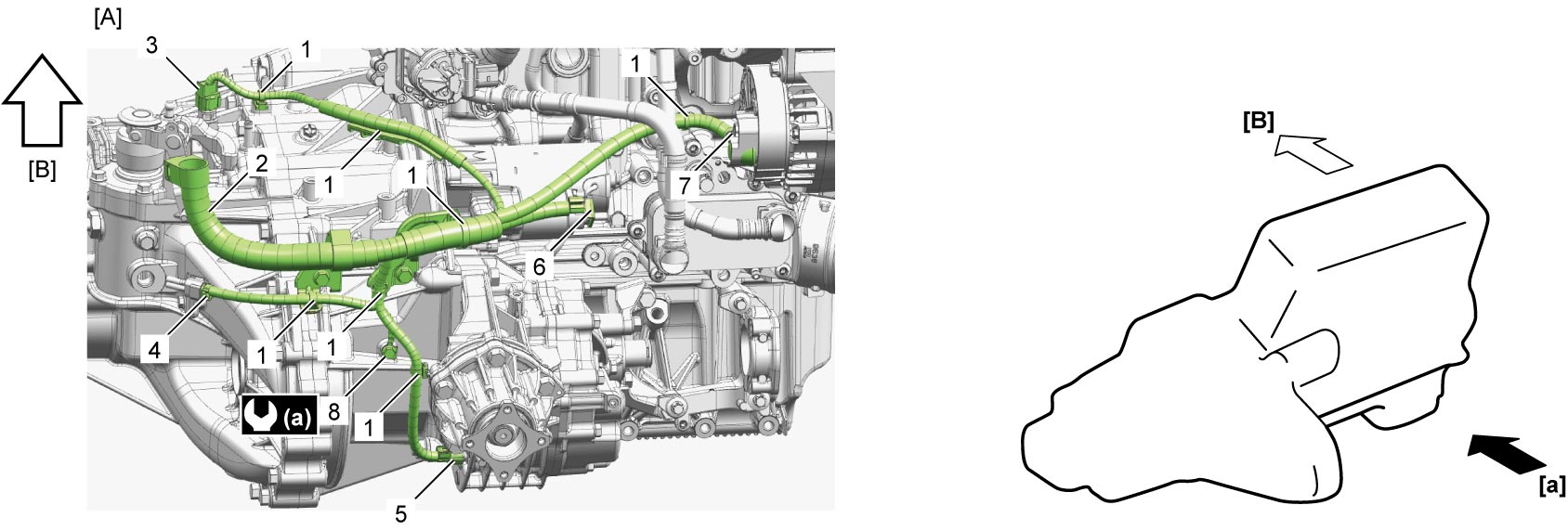

Engine Harness (D16AA M/T Model)
| [A]: | View [a] | 3. | Back up light switch | 7. | Generator (+B) |
| [B]: | Forward | 4. | Neutral position switch | 8. | GND bolt |
| 1. | Clamp | 5. | Transfer oil temperature sensor |
: |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| 2. | Engine harness | 6. | Starting motor (+B) |

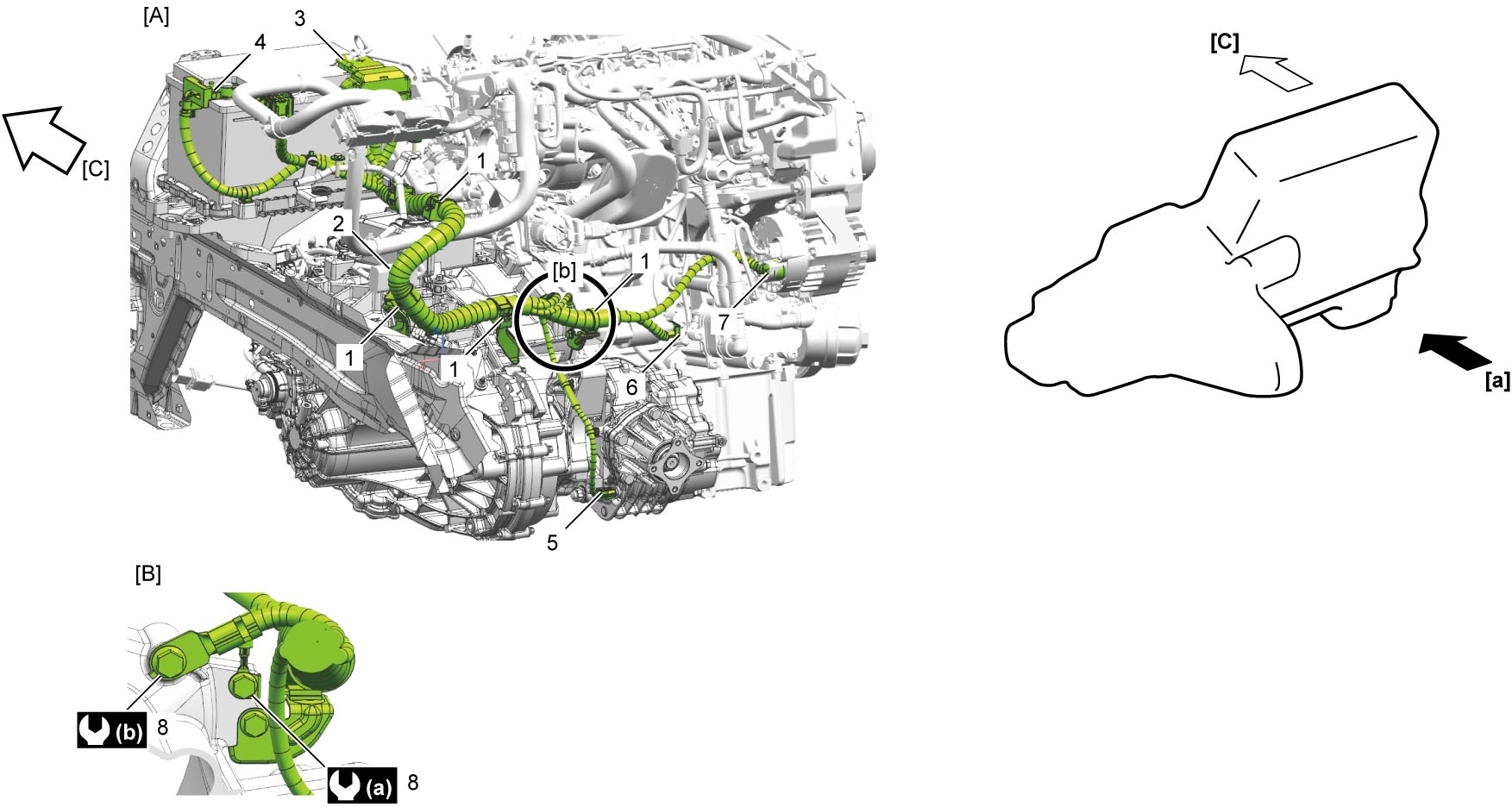

Engine Harness (D16AA Twin Clutch System Model)
| [A]: | View [a] | 3. | Battery (+) | 8. | GND bolt |
| [B]: | Detail [b] | 4. | Battery (–) |
: |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| [C]: | Forward | 5. | Transfer oil temperature sensor |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
| 1. | Clamp | 6. | Starting motor (+B) | ||
| 2. | Engine harness | 7. | Generator (+B) |
