Around Battery

Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

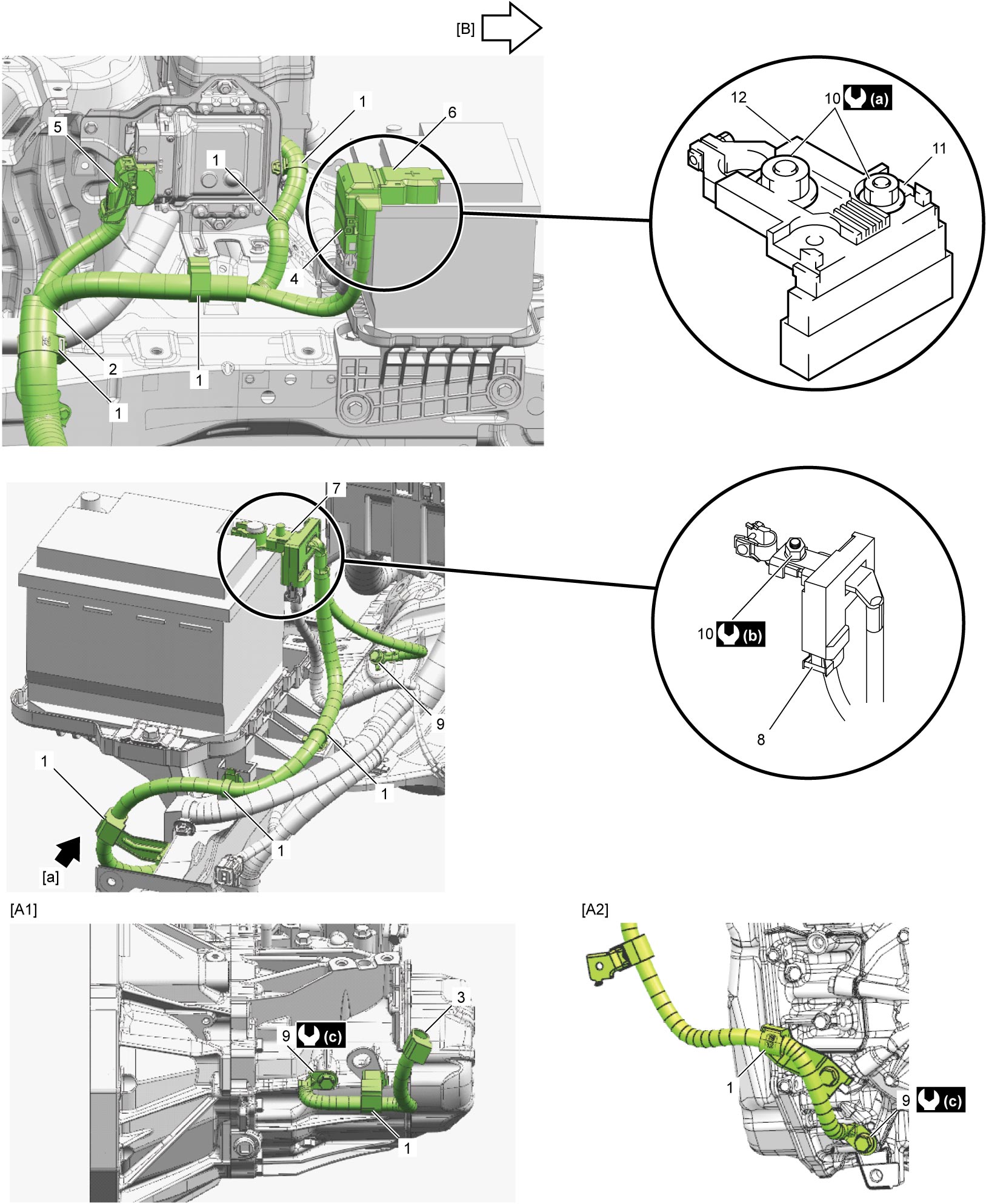

Petrol Model

[A1]:	View [a] (M/T model)	4.	Main fuse box	10.	Nut
[A2]:	View [b] (A/T model)	5.	ECM	11.	Wire terminal
[B]:	Forward	6.	Battery (+)	12.	Intermediate terminal
1.	Clamp	7.	Battery (–)	:	14 N·m (1.4 kgf-m, 10.5 lbf-ft)
2.	Engine harness	8.	Electric load current sensor & battery temperature sensor	:	12 N·m (1.2 kgf-m, 9.0 lbf-ft)
3.	Battery cable	9.	GND bolt	:	25 N·m (2.5 kgf-m, 18.5 lbf-ft)

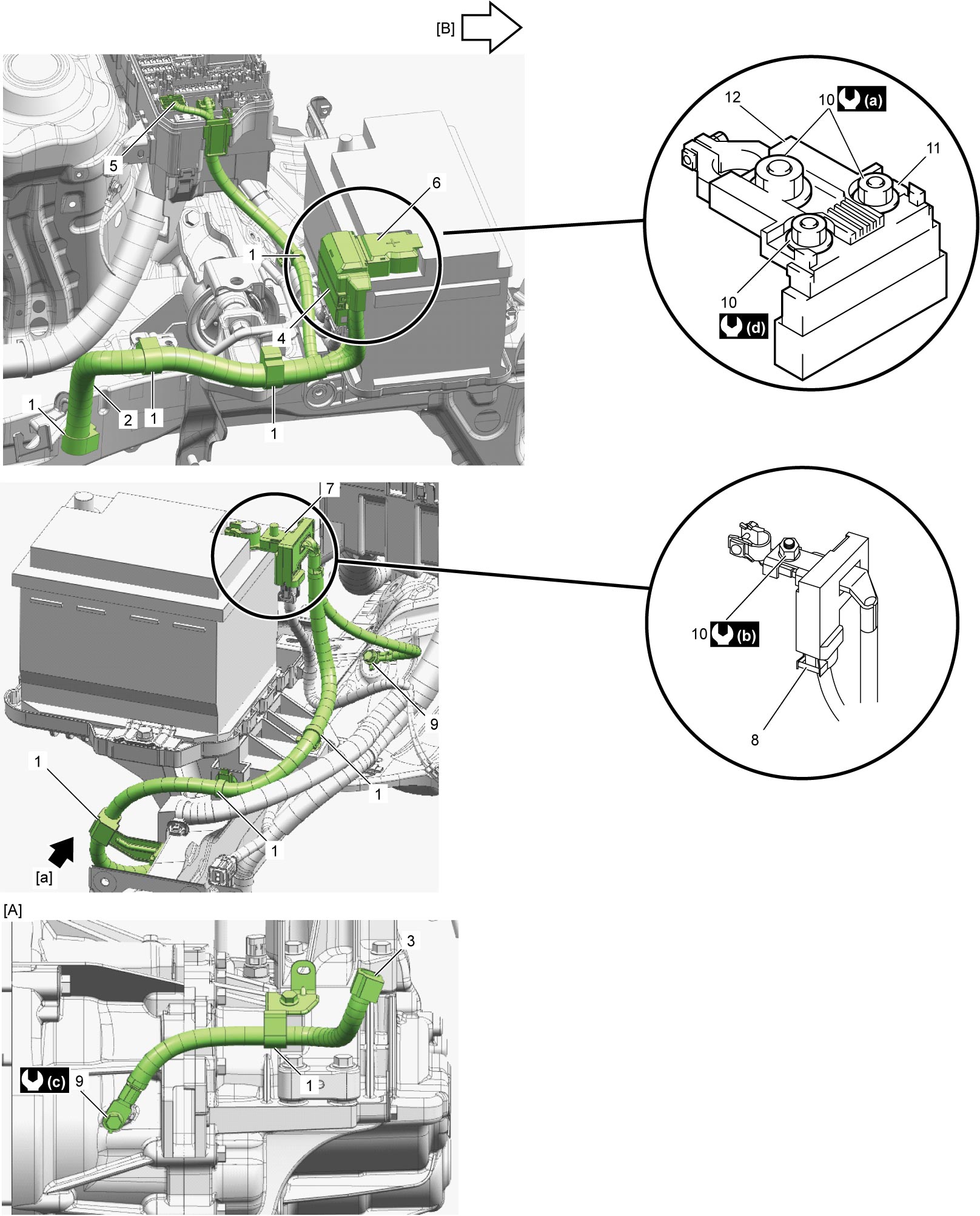

Diesel Model

[A]:	View [a] (M/T model)	5.	To main harness	11.	Wire terminal
[B]:	Forward	6.	Battery (+)	12.	Intermediate terminal
1.	Clamp	7.	Battery (–)	:	14 N·m (1.4 kgf-m, 10.5 lbf-ft)
2.	Engine harness	8.	Electric load current sensor & battery temperature sensor	:	12 N·m (1.2 kgf-m, 9.0 lbf-ft)
3.	Battery cable	9.	GND bolt	:	25 N·m (2.5 kgf-m, 18.5 lbf-ft)
4.	Main fuse box	10.	Nut	:	9.0 N·m (0.9 kgf-m, 7.0 lbf-ft)
