Reassembling Note for Wiring Harness
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)
Refer to Around Engine.
Refer to Around Battery.
Refer to Around Strut.
Refer to Around Instrument Panel.
Refer to Around Main Floor.
Refer to Around Rear End Door.
ESP®: ESP is a registered trademark of Daimler AG.
Ground Bolt Used on Painted Panels
The bolts are specially designed to get good metal-to-metal contact on painted panels.
Use the specified ground bolt.
Using an ordinary bolt can cause poor grounding on painted panels.
NOTICE:
Using this bolt on aluminum blocks will damage the screw hole of the block.
Never use this bolt on aluminum blocks.
NOTE:

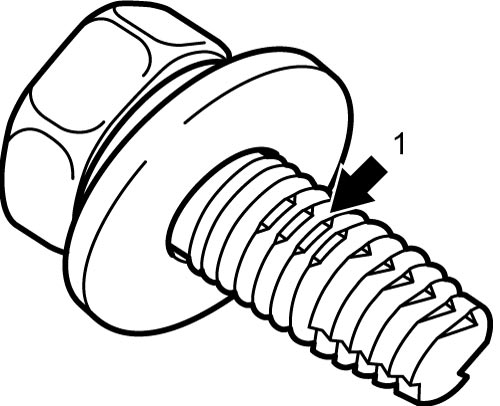

This ground bolt is not used on the engine block, the transmission case or the steering column mounting bracket (non-painted). Identify the bolt with the paint-scratch shape (1) on the screw.
