Around Strut
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

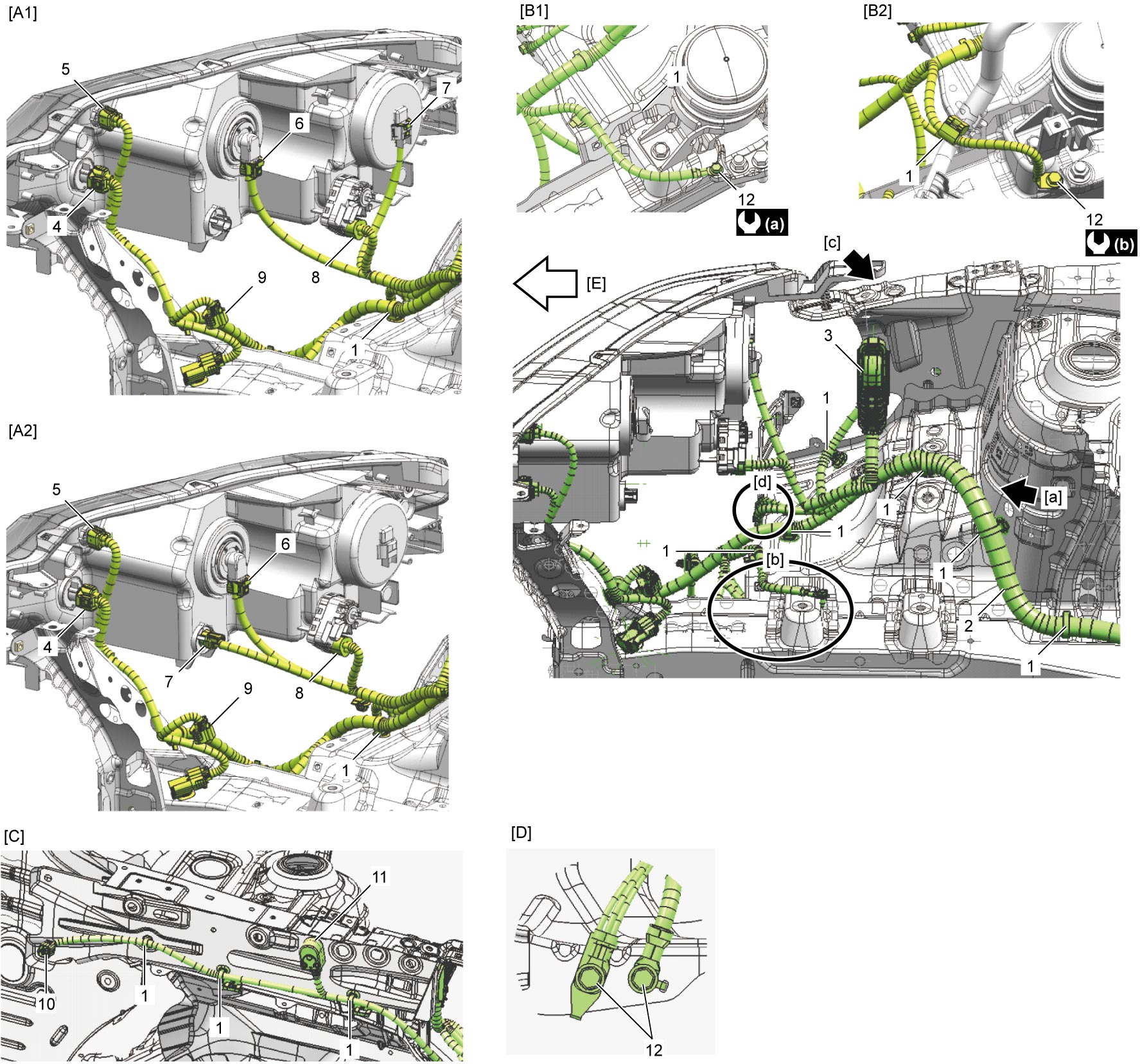

Right Side
| [A1]: | View [a] (With halogen headlight) | 1. | Clamp | 8. | Headlight leveling actuator (R) |
| [A2]: | View [a] (With LED headlight) | 2. | Main harness | 9. | A/C refrigerant pressure sensor |
| [B1]: | Detail [b] (Petrol model) | 3. | ESP® control module | 10. | Side turn signal light (R) |
| [B2]: | Detail [b] (Diesel model) | 4. | Front turn signal light (R) | 11. | Outside warning buzzer (RHD) |
| [C]: | View [c] | 5. | Clearance light (R) | 12. | GND bolt |
| [D]: | Detail [d] | 6. | Headlight HI (R) |
 : |
11 N·m (1.1 kgf-m, 8.5 lbf-ft) |
| [E]: | Forward | 7. | Headlight LO (R) |
 : |
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |

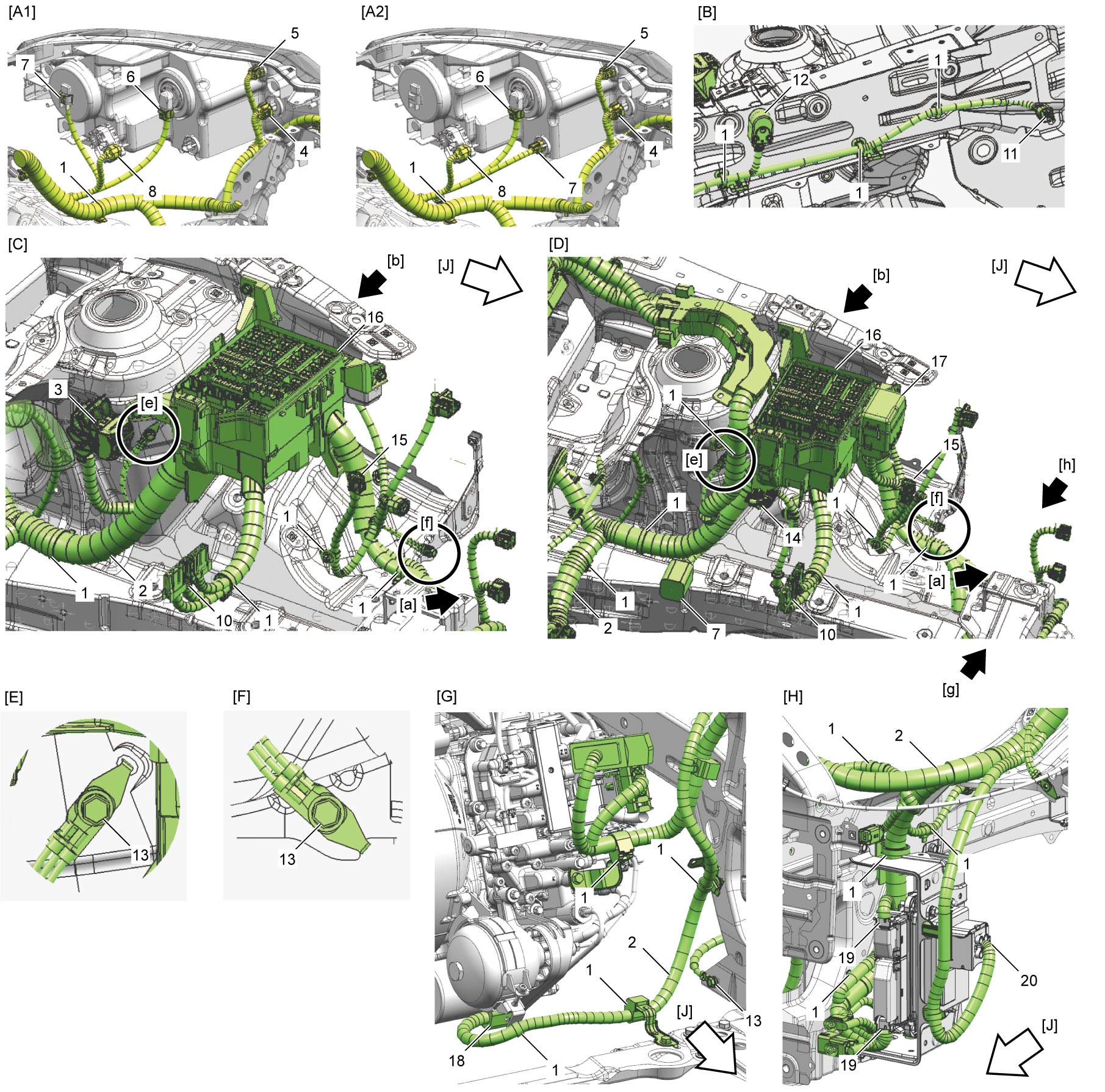

Left Side
| [A1]: | View [a] (With halogen headlight) | 1. | Clamp | 11. | Side turn signal light (L) |
| [A2]: | View [a] (With LED headlight) | 2. | Main harness | 12. | Outside warning buzzer (LHD) |
| [B]: | View [b] | 3. | ECM | 13. | GND bolt |
| [C]: | Petrol model | 4. | Front turn signal light (L) | 14. | MAF and IAT sensor-1 |
| [D]: | Diesel model | 5. | Clearance light (L) | 15. | Electric load current sensor & battery temperature sensor |
| [E]: | Detail [e] | 6. | Headlight HI (L) | 16. | Relay box No.1 |
| [F]: | Detail [f] | 7. | Headlight LO (L) | 17. | Relay box No.2 |
| [G]: | View [g] (Twin clutch system model) | 8. | Headlight leveling actuator (L) | 18. | Electric motor |
| [H]: | View [h] (Twin clutch system model) | 9. | To Fuel injector harness | 19. | TCM |
| [J]: | Forward | 10. | Main fuse box | 20. | Smart drive unit |
