Around Instrument Panel
Precautions: Cautions for Body Electrical System Servicing · Precautions for Body, Cab and Accessories · General safety (00)

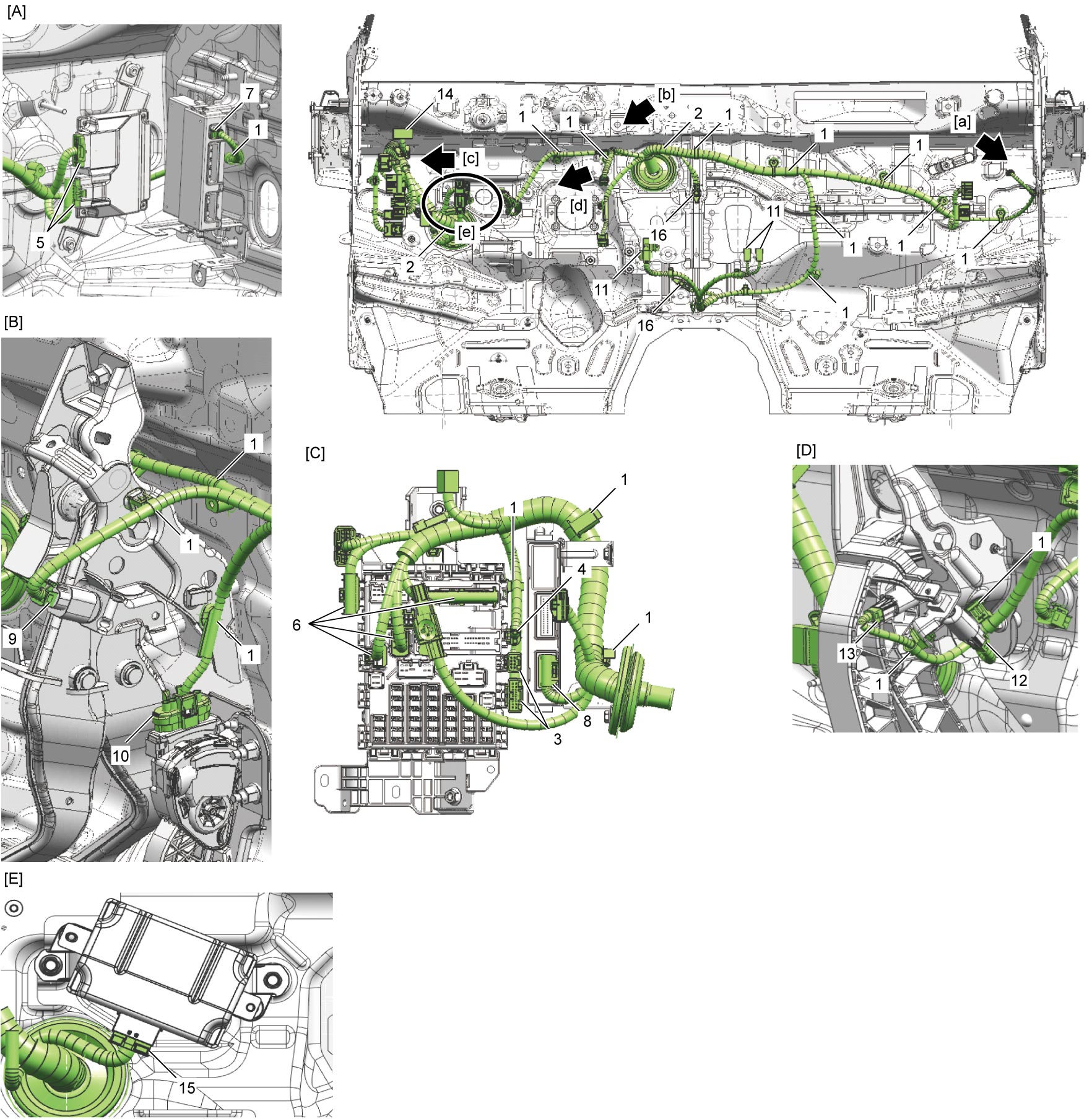

On Dash Panel (RHD)
| [A]: | View [a] | 3. | Instrument panel harness | 10. | APP sensor |
| [B]: | Detail [b] | 4. | Floor harness | 11. | Additional heater (If equipped) |
| [C]: | View [c] | 5. | ENG A-STOP control module (ENG A-STOP model) | 12. | CPP switch No.1 |
| [D]: | View [d] (M/T model) | 6. | J/B | 13. | CPP switch No.2 |
| [E]: | Detail [e] | 7. | Keyless entry control module / Keyless start control module | 14. | Headlight auto leveling control module (With LED headlight) |
| 1. | Clamp | 8. | BCM | 15. | DC/DC converter (ENG A-STOP A/T model) |
| 2. | Main harness | 9. | Brake light switch | 16. | GND bolt |

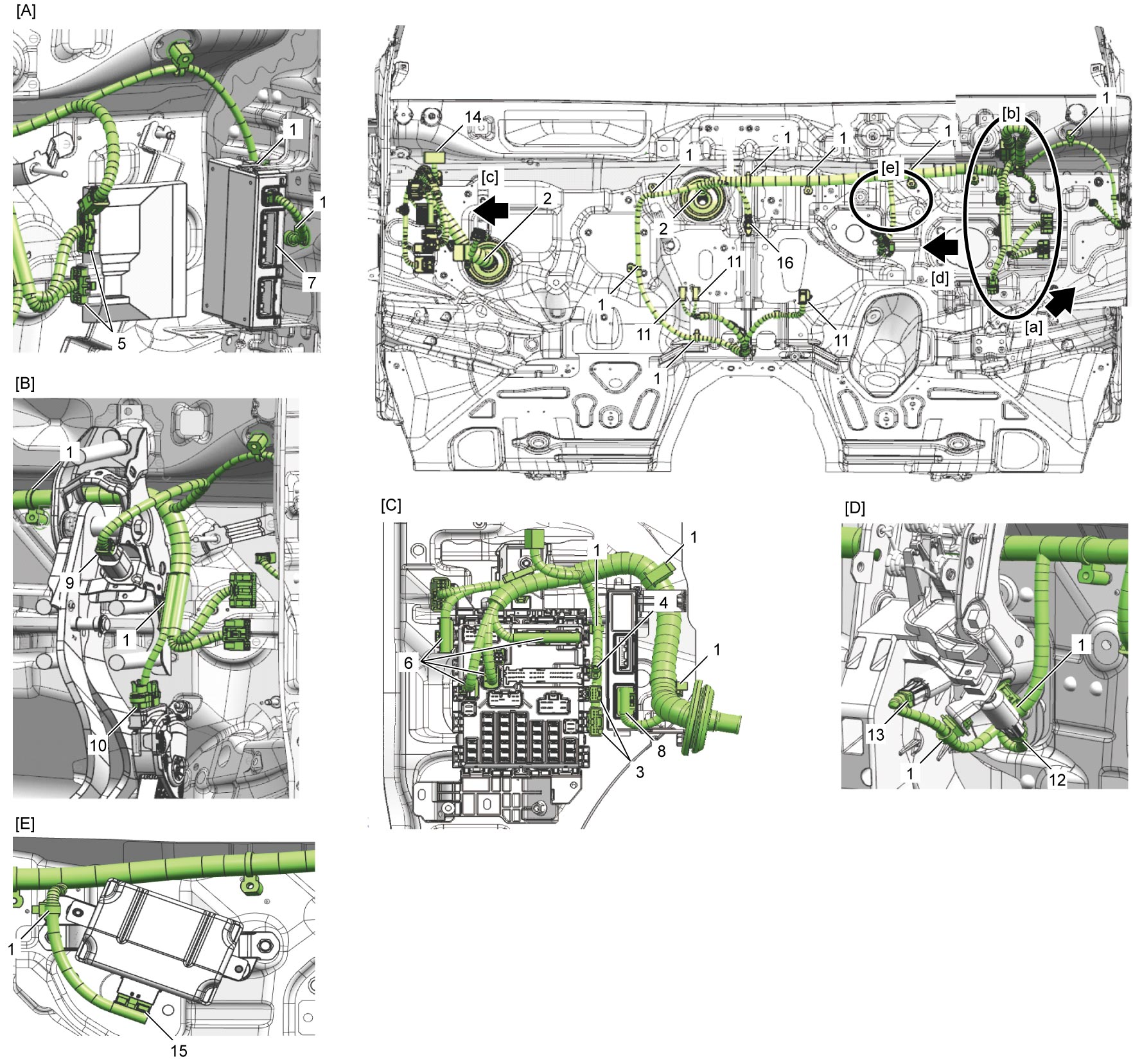

On Dash Panel (LHD)
| [A]: | View [a] | 3. | Instrument panel harness | 10. | APP sensor |
| [B]: | View [b] | 4. | Floor harness | 11. | Additional heater (If equipped) |
| [C]: | View [c] | 5. | ENG A-STOP control module (ENG A-STOP model) | 12. | CPP switch No.1 |
| [D]: | View [d] (M/T model) | 6. | J/B | 13. | CPP switch No.2 |
| [E]: | Detail [e] | 7. | Keyless entry control module / Keyless start control module | 14. | Headlight auto leveling control module (With LED headlight) |
| 1. | Clamp | 8. | BCM | 15. | DC/DC converter (ENG A-STOP A/T model) |
| 2. | Main harness | 9. | Brake light switch | 16. | GND bolt |

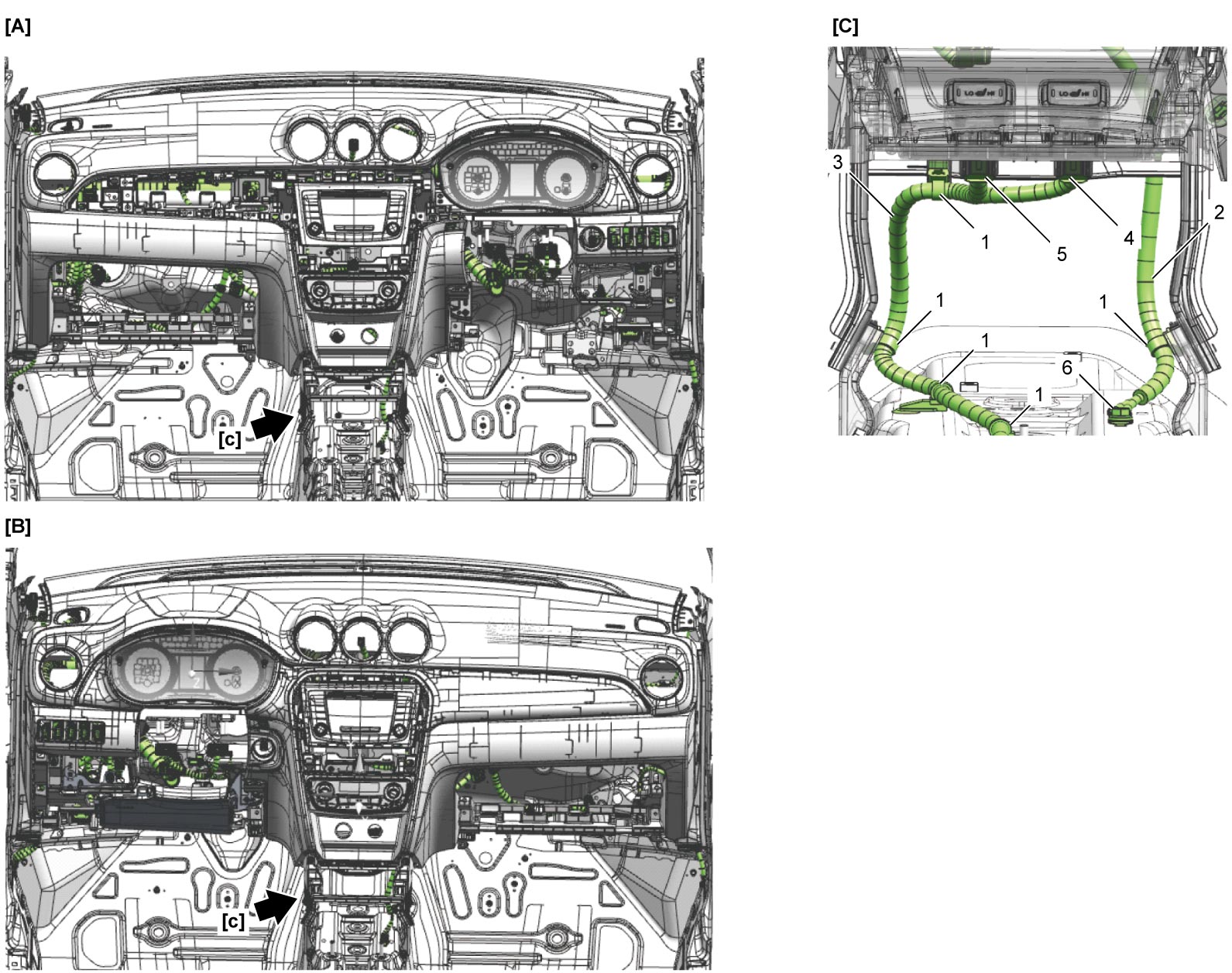

Viewed from Rear
| [A]: | RHD | 1. | Clamp | 4. | RHD: Seat heater switch (Driver side) LHD: Seat heater switch (Passenger side) |
| [B]: | LHD | 2. | Instrument panel harness | 5. | RHD: Seat heater switch (Passenger side) LHD: Seat heater switch (Driver side) |
| [C]: | View [c] | 3. | Floor harness | 6. | GND bolt |

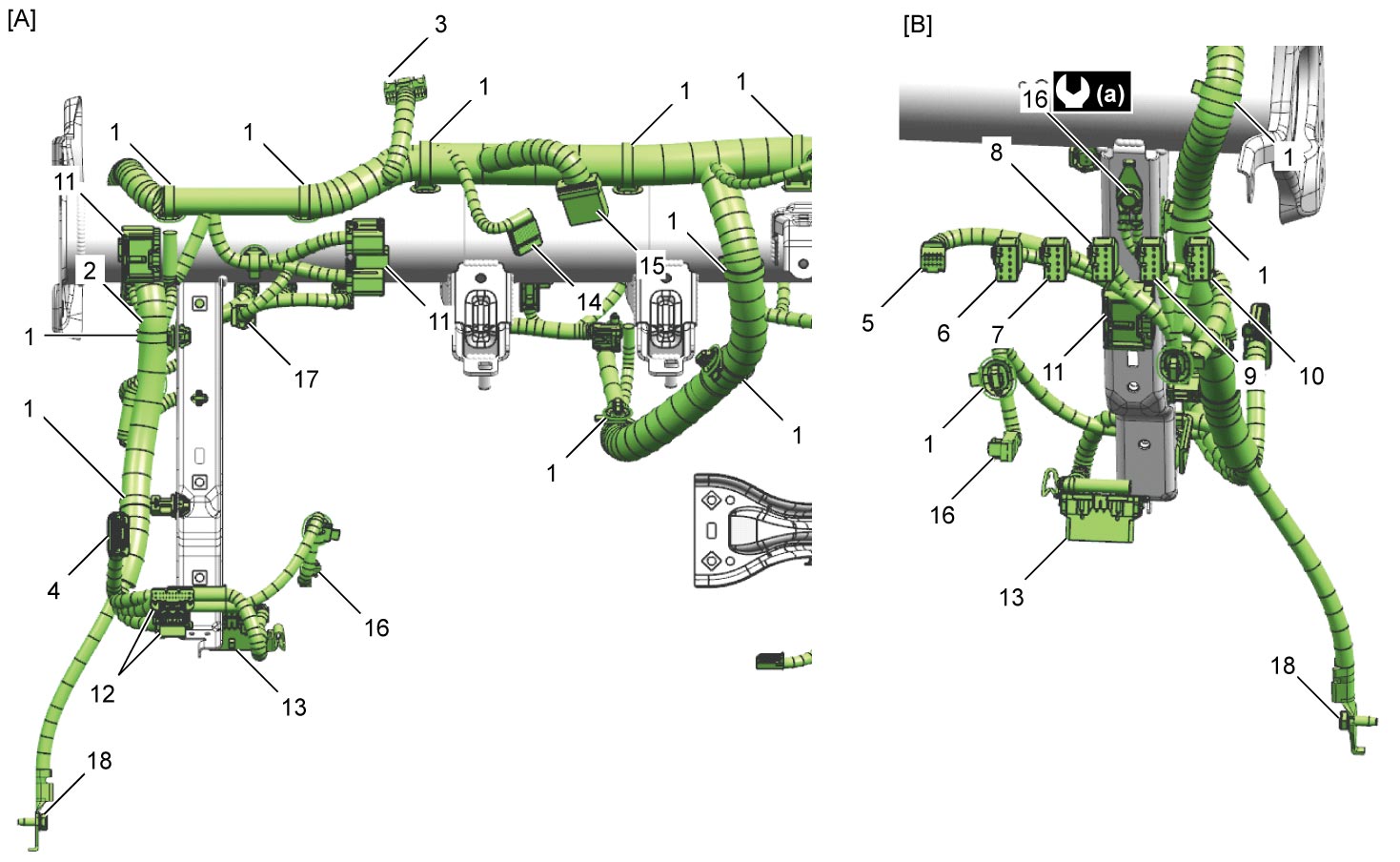

Inside Instrument Panel (RHD Driver Side)
| [A]: | Viewed from front | 6. | Parking sensor OFF switch or RBS OFF / FAR/NEAR setting switch | 13. | DLC |
| [B]: | Viewed from rear | 7. | ENG A-STOP OFF switch or Hill descent control / ENG A-STOP OFF switch or Hill descent control switch | 14. | P/S control module |
| 1. | Clamp | 8. | ESP® OFF switch or ESP® OFF / Parking sensor OFF switch | 15. | P/S motor |
| 2. | Instrument panel harness | 9. | Front fog light switch (If equipped) | 16. | Driver-side knee air bag (inflator) module (9 or 11-channel) |
| 3. | Combination meter | 10. | Headlight leveling switch (If equipped) | 17. | Parking sensor front buzzer (With parking sensor system) |
| 4. | Keyless entry control module / Keyless start control module | 11. | J/C | 18. | GND bolt |
| 5. | Engine push start switch | 12. | To floor harness |
 : |
8.8 N·m (0.9 kgf-m, 6.5 lbf-ft) |

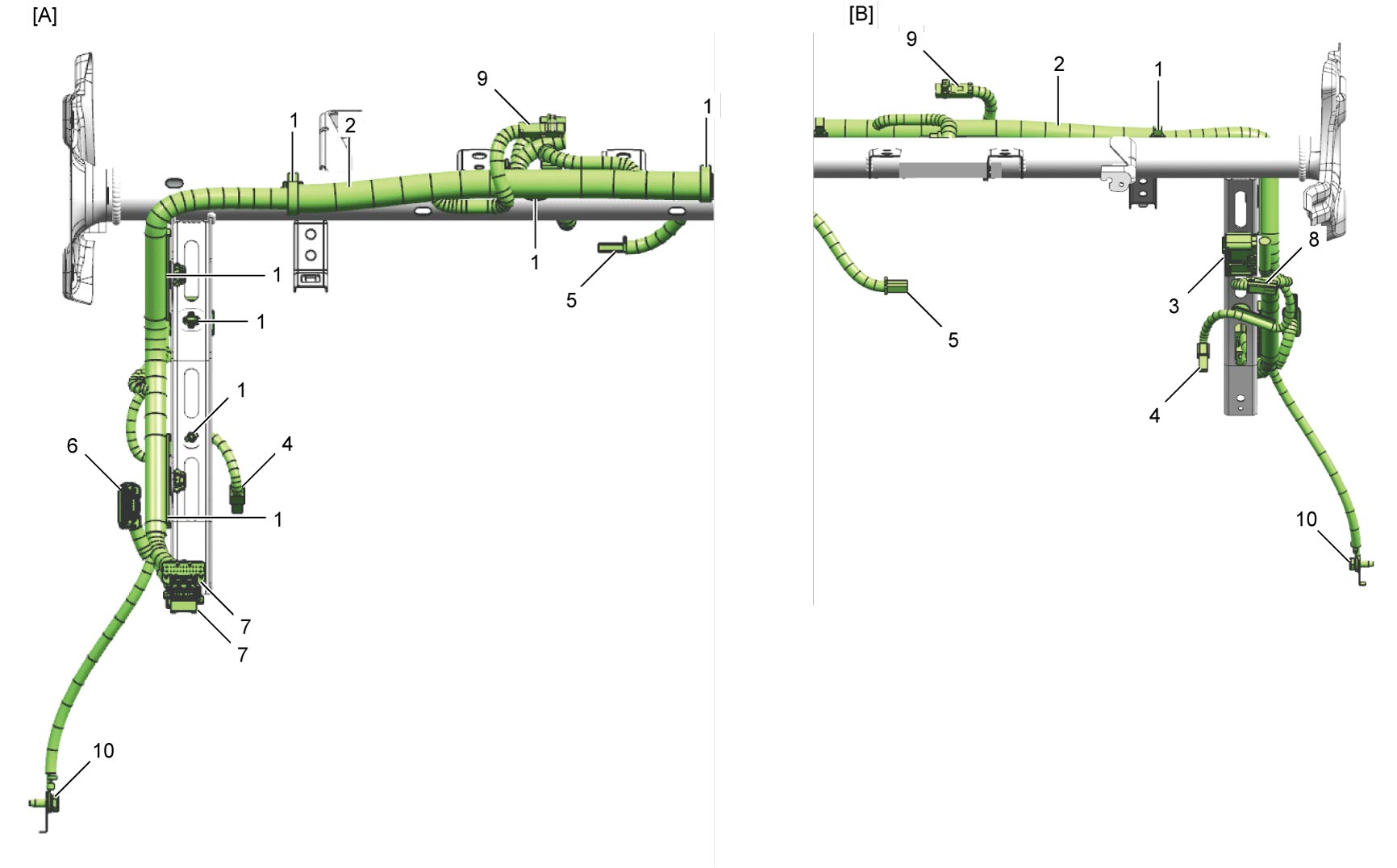

Inside Instrument Panel (RHD Passenger Side)
| [A]: | Viewed from front | 3. | J/C | 7. | To floor harness |
| [B]: | Viewed from rear | 4. | Glove box light switch | 8. | Front-passenger air bag deactivation switch (If equipped) |
| 1. | Clamp | 5. | Glove box light | 9. | Front-passenger air bag (inflator) module |
| 2. | Instrument panel harness | 6. | To roof wire | 10. | GND bolt |

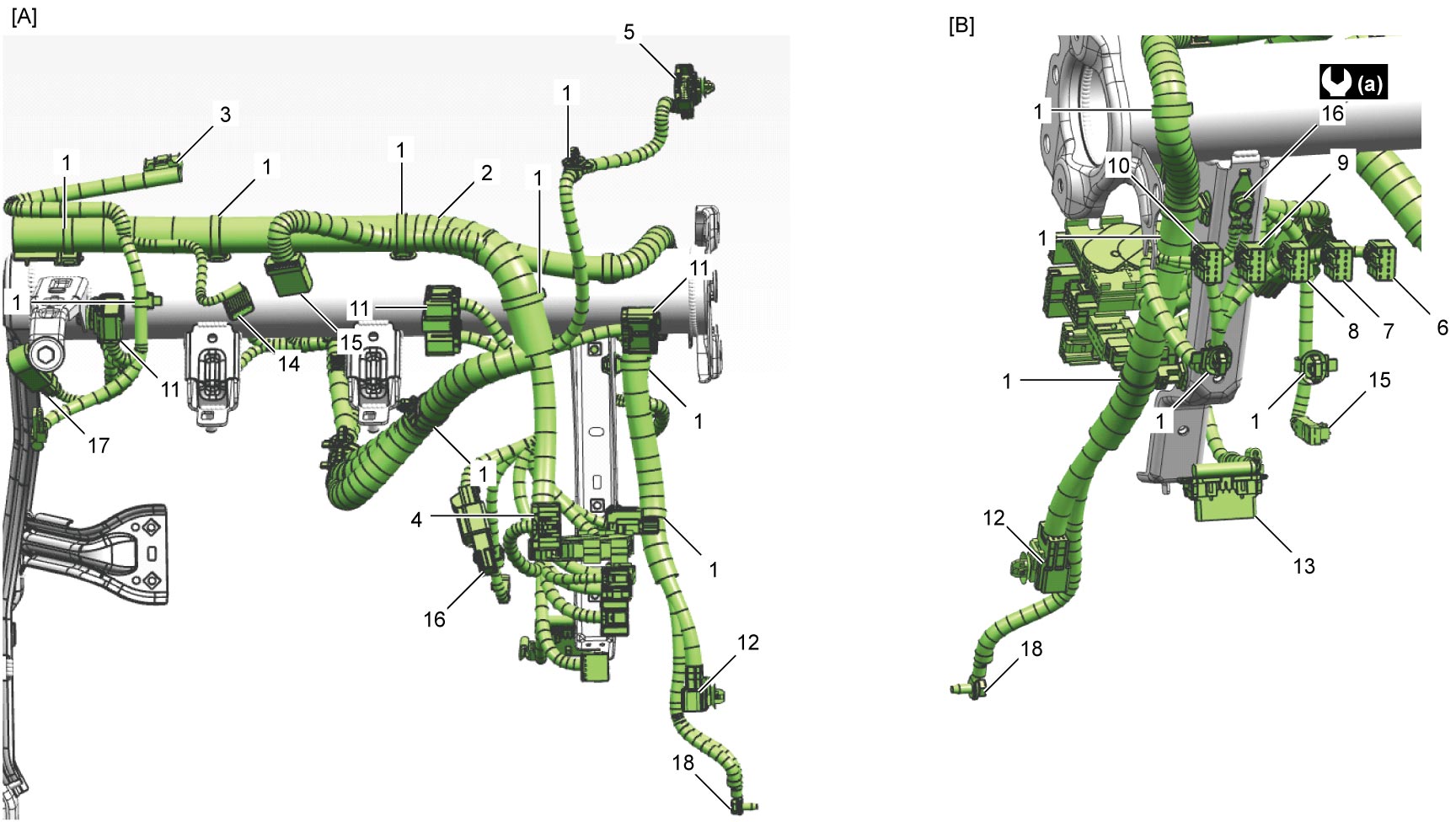

Inside Instrument Panel (LHD Driver Side)
| [A]: | Viewed from front | 6. | Parking sensor OFF switch or RBS OFF / FAR/NEAR setting switch | 13. | DLC |
| [B]: | Viewed from rear | 7. | ENG A-STOP OFF switch or Hill descent control / ENG A-STOP OFF switch or Hill descent control switch | 14. | P/S control module |
| 1. | Clamp | 8. | ESP® OFF switch or ESP® OFF / Parking sensor OFF switch | 15. | P/S motor |
| 2. | Instrument panel harness | 9. | Front fog light switch (If equipped) | 16. | Driver-side knee air bag (inflator) module (9 or 11-channel) |
| 3. | Combination meter | 10. | Headlight leveling switch (If equipped) | 17. | Parking sensor front buzzer (With parking sensor system) |
| 4. | BCM | 11. | J/C | 18. | GND bolt |
| 5. | To roof wire | 12. | To floor harness |
: |
8.8 N·m (0.9 kgf-m, 6.5 lbf-ft) |

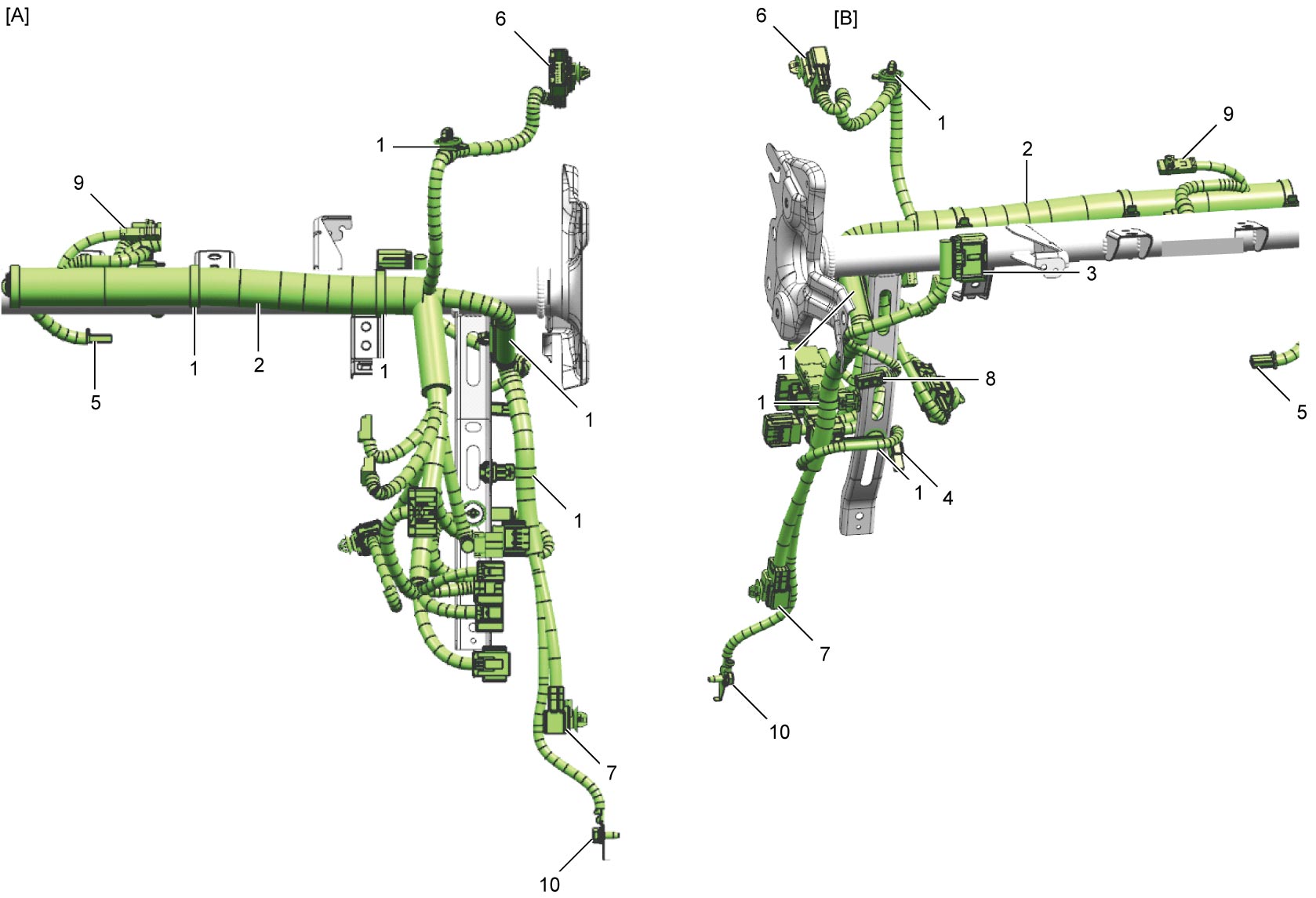

Inside Instrument Panel (LHD Passenger Side)
| [A]: | Viewed from front | 3. | J/C | 7. | To floor harness |
| [B]: | Viewed from rear | 4. | Glove box light switch | 8. | Front-passenger air bag deactivation switch (If equipped) |
| 1. | Clamp | 5. | Glove box light | 9. | Front-passenger air bag (inflator) module |
| 2. | Instrument panel harness | 6. | Keyless entry control module / Keyless start control module | 10. | GND bolt |
