Glove Box Light Removal and Installation (If Equipped)

Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)

Removal
1)Remove glove box. icon

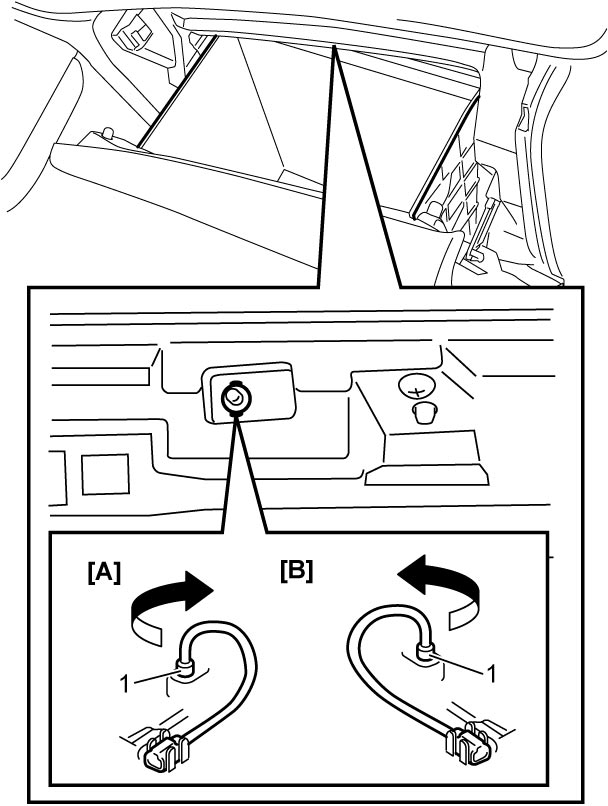

2)For LHD, turn socket (1) clockwise to remove glove box light.
For RHD, turn socket (1) counterclockwise to remove glove box light.
[A]: LHD [B]: RHD
3)Remove bulb.
Installation
Reverse removal procedure.
