Foot Light Removal and Installation (If Equipped)
Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)
Removal

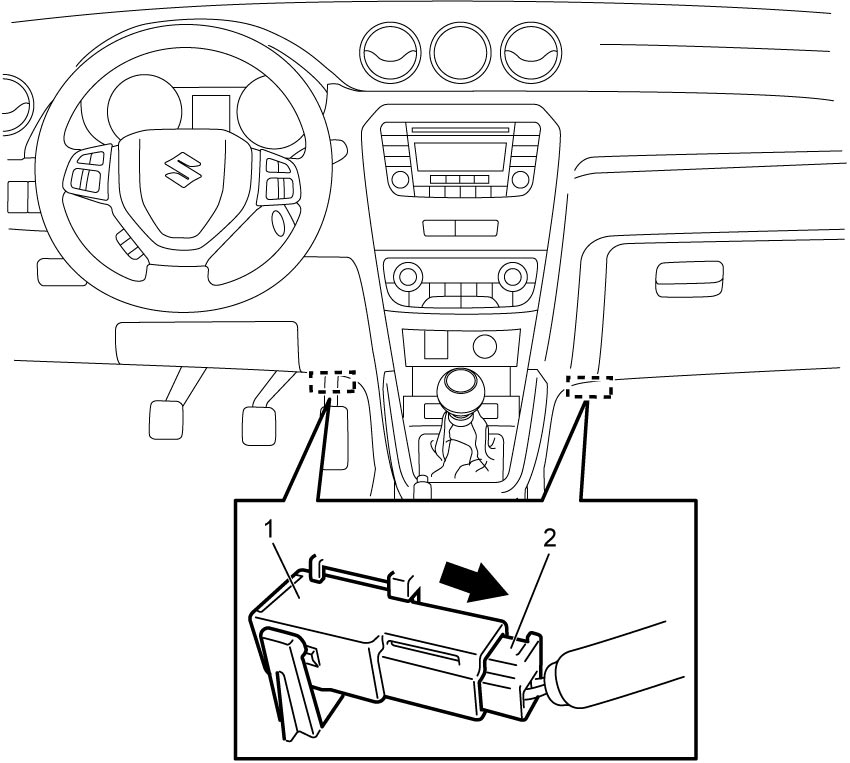

1)Pull off the foot light (1) from instrument panel as shown in figure.
2)Disconnect foot light connector (2).
Installation
Reverse removal procedure.
