Headlight Leveling Actuator Inspection (If Equipped)
Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)
1)Disconnect headlight leveling actuator connector.

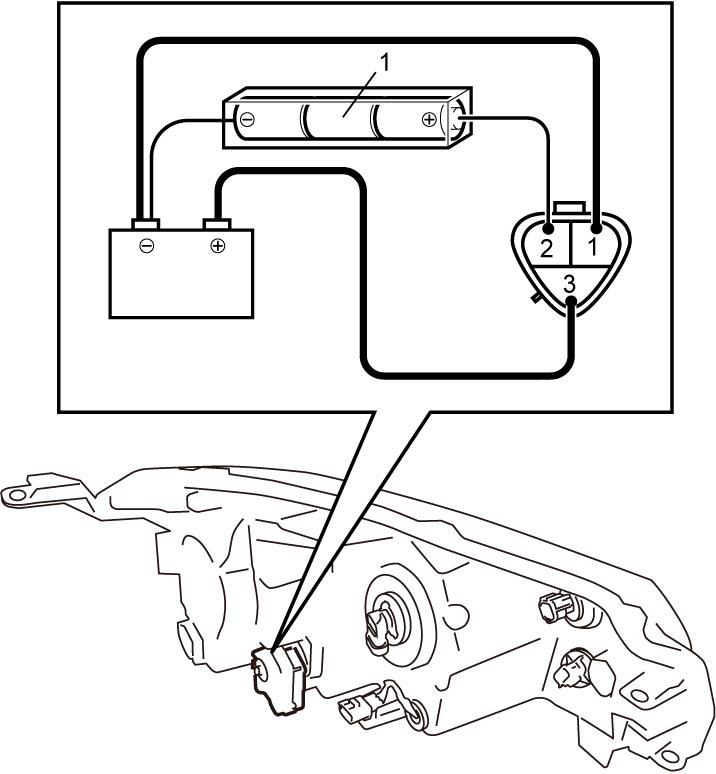

2)Arrange 3 new 1.5 V batteries (1) in series (check that total voltage is 4.5 – 5.0 V), and connect it as shown in figure. Check that reflector of headlight moves downward.

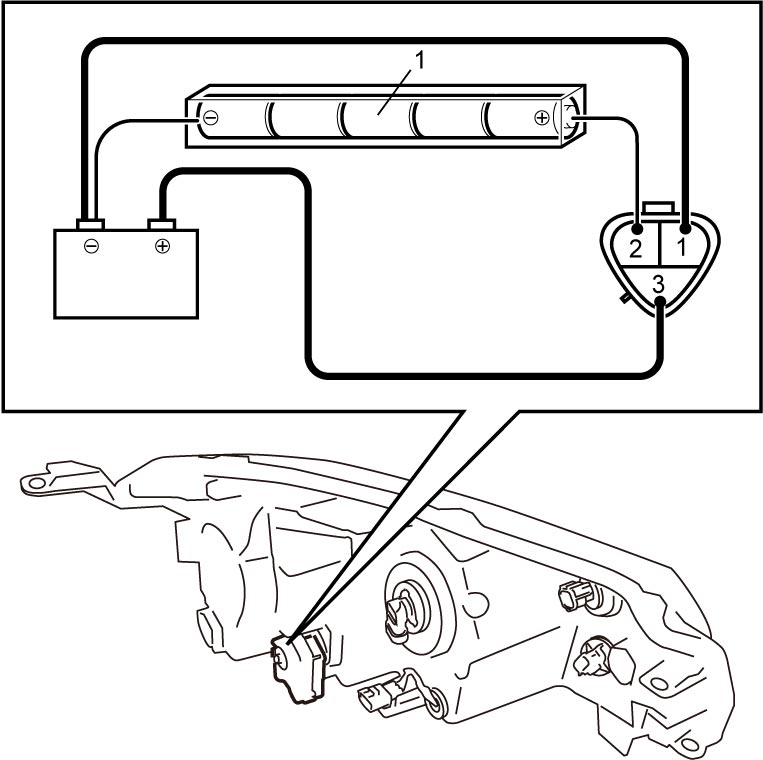

3)Arrange 5 new 1.5 V batteries (1) in series (check that total voltage is 7.5 – 8.0 V) and connect it as shown in figure. Check that reflector of headlight moves upward.
