Horn Removal and Installation

Precautions: Precautions for Body, Cab and Accessories · General safety (00)

Removal
1)Remove front bumper. icon

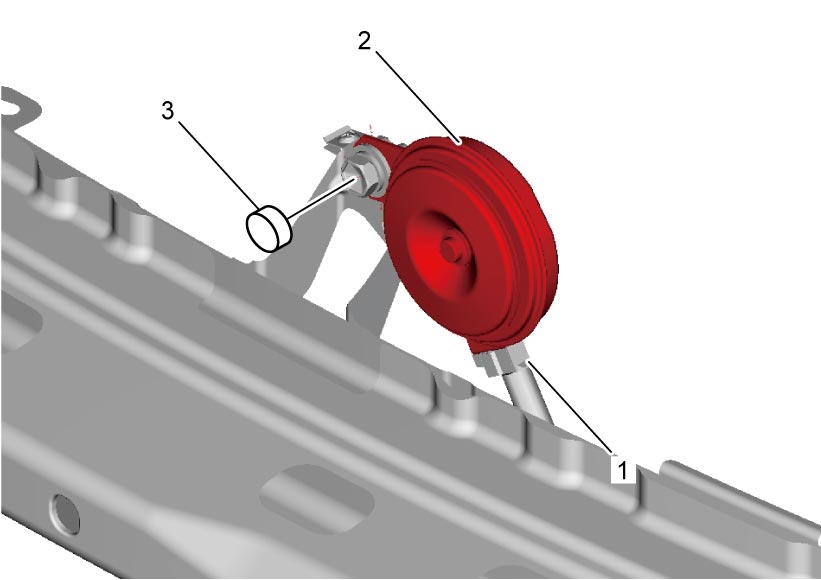

2)Remove cap (3) and then disconnect horn connector (1).
3)Remove horn (2) from front bumper member.
Installation
Reverse removal procedure noting the following points.
•Tighten horn bolt to specified torque.
Tightening torque
Horn bolt (a): 14 N·m (1.4 kgf-m, 10.5 lbf-ft)
