Power Window Component Location
Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:

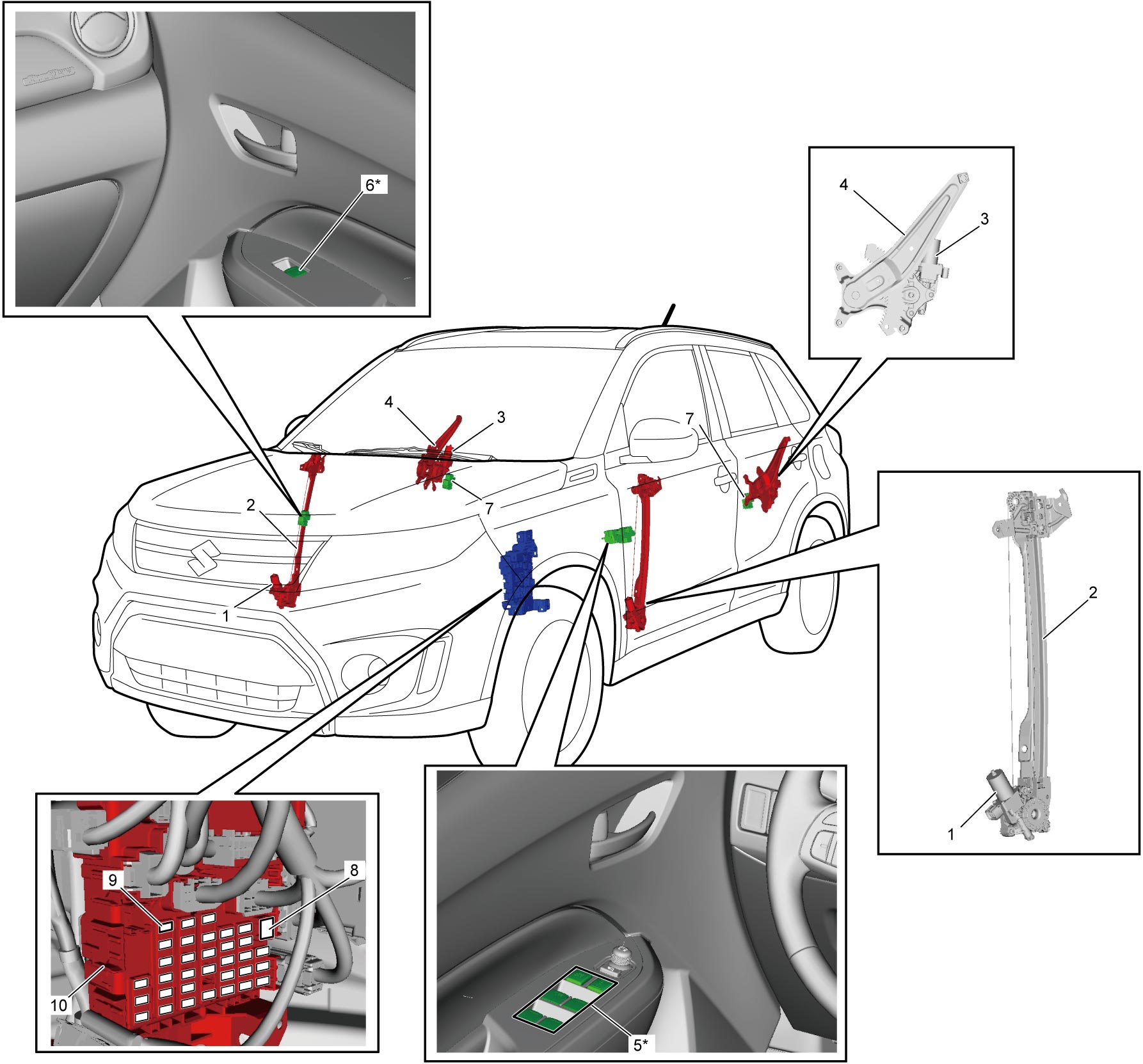

The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.
| 1. | Driver / passenger power window motor | 6. | Power window sub switch (passenger) |
| 2. | Driver / passenger power window regulator | 7. | Power window sub switch (rear right / rear left) (power window type) |
| 3. | Rear power window motor (R) / (L) (manual window type) | 8. | “P/W” fuse |
| 4. | Rear power window regulator (R) / (L) | 9. | “P/W T” fuse |
| 5. | Power window main switch | 10. | Individual circuit fuse box No.2 (in J/B) |
