Power Door Mirror Component Location
Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:

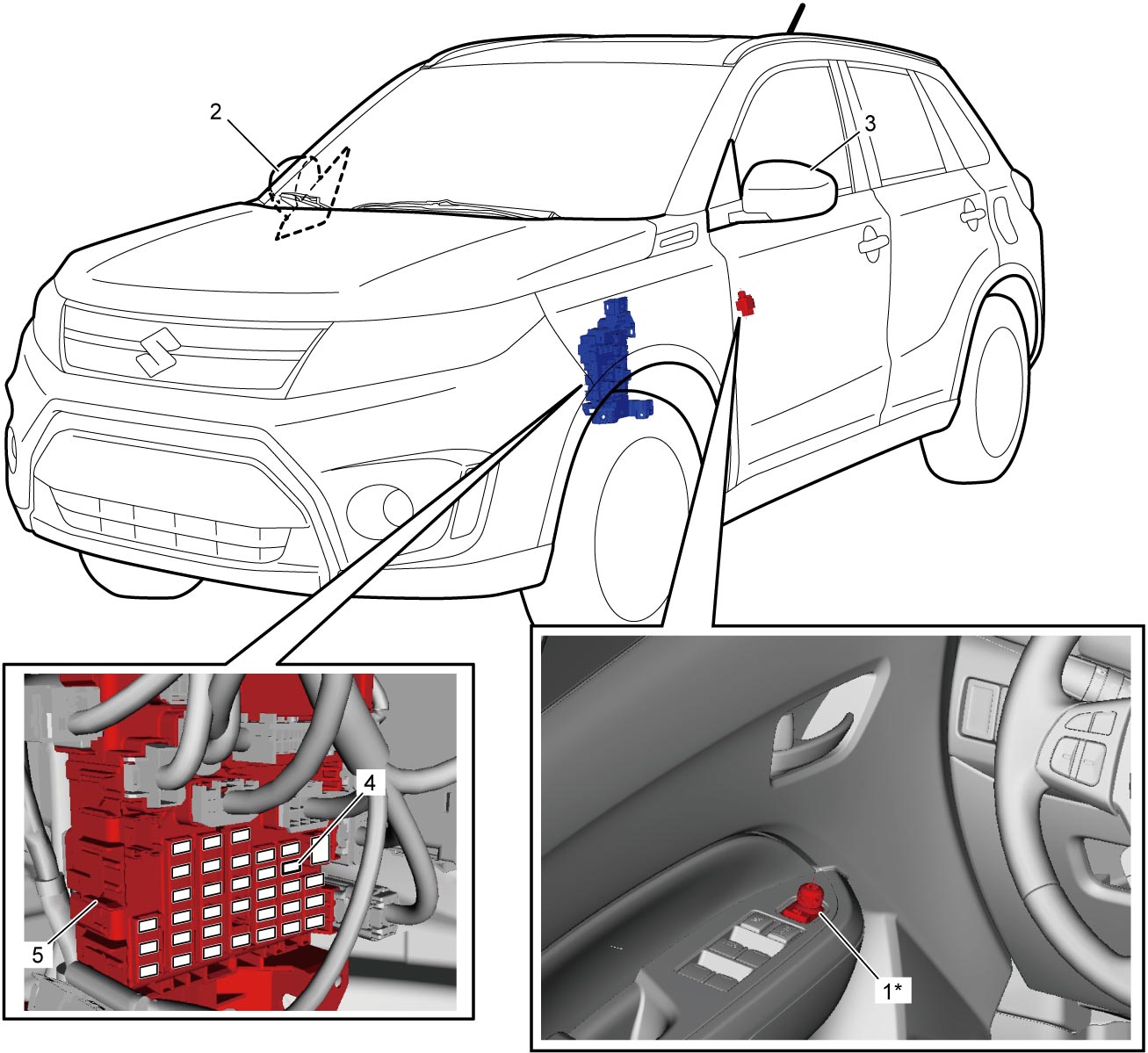

The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.
| 1. | Power door mirror switch | 3. | Left power door mirror assembly | 5. | Individual circuit fuse box No.2 (in J/B) |
| 2. | Right power door mirror assembly | 4. | “ACC” fuse |
