Rear Quarter Window Glass Removal and Installation
Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)
Preparation, removal and installation procedures are basically the same as Windshield Removal and Installation, however note the following points.
NOTE:
Do not put primer to rear quarter window glass garnish.
•Apply adhesive (1) as shown in figure.
•Install rear quarter window glass garnish (2).
•Place glass fastener (male) (3) and glass fastener (female) (4) in appropriate positions.
•Install rear quarter window glass garnish (2).
•Place glass fastener (male) (3) and glass fastener (female) (4) in appropriate positions.

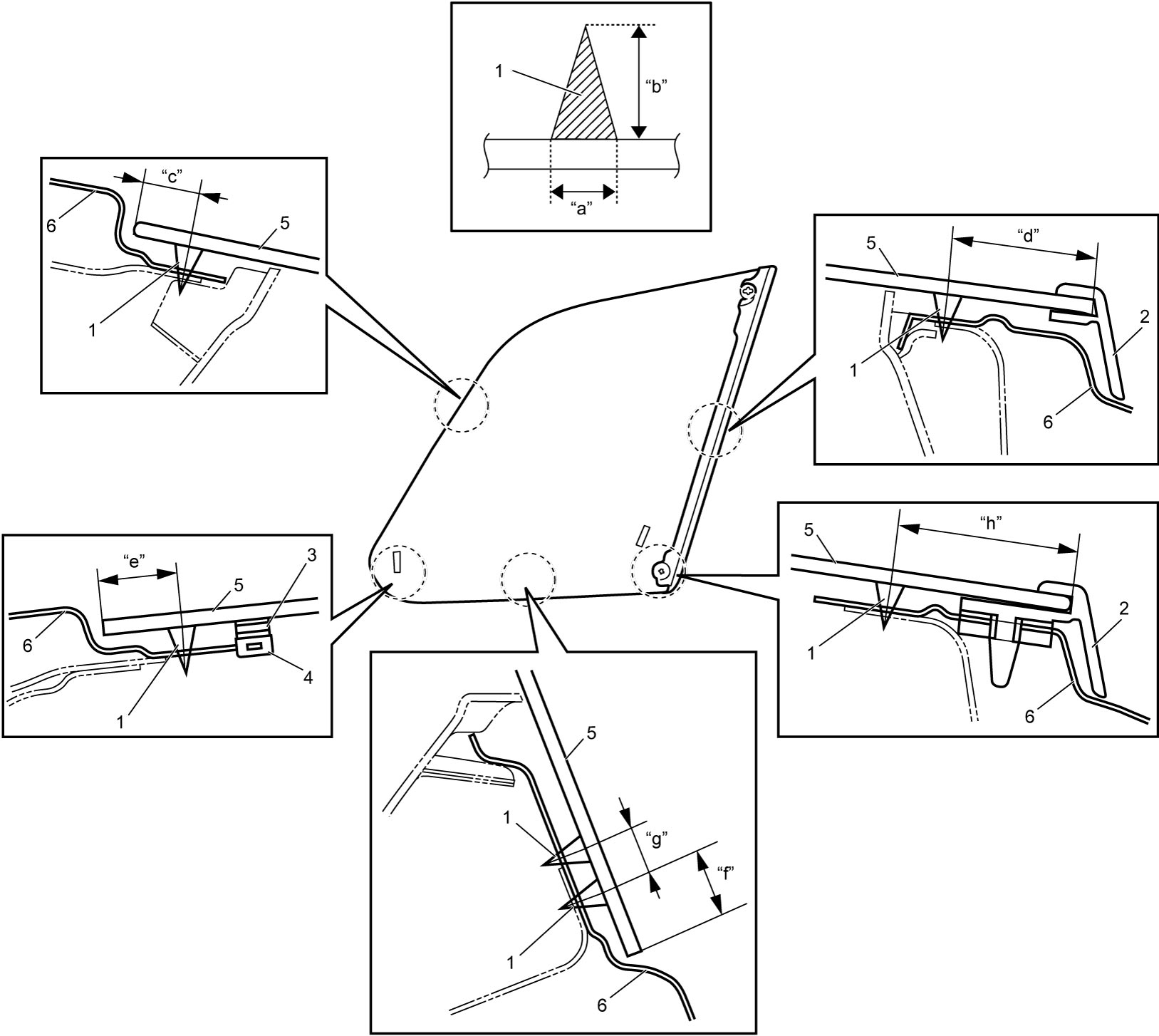

Adhesive amount and application area on rear quarter window glass
Adhesive width “a”: Approx. 6.0 mm (0.24 in.)
Adhesive height “b”: Approx. 10.0 mm (0.39 in.)
Application position “c”: Approx. 12.4 mm (0.48 in.), “d”: Approx. 30.4 mm (1.19 in.), “e”: Approx. 16.8 mm (0.66 in.), “f”: Approx. 14.8 mm (0.58 in.), “g”: Approx. 10.0 mm (0.39 in.), “h”: Approx. 38.9 mm (1.53 in.)
| 5. | Rear quarter window glass | 6. | Side body outer panel |
