Rear End Door Window Glass Removal and Installation
Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)
Preparation, removal and installation procedures are basically the same as Windshield Removal and Installation, however note the following points.
•Remove rear wiper motor before removing rear end door window glass.
•Disconnect rear defogger connectors from rear end door window glass.
•Be careful not to damage connectors during removal and installation.
•Apply adhesive (1) as shown in figure.
•Locate glass fasteners (female) (2) so that they will fit with glass fastener (male) (3) when attaching glass.
•Disconnect rear defogger connectors from rear end door window glass.
•Be careful not to damage connectors during removal and installation.
•Apply adhesive (1) as shown in figure.
•Locate glass fasteners (female) (2) so that they will fit with glass fastener (male) (3) when attaching glass.

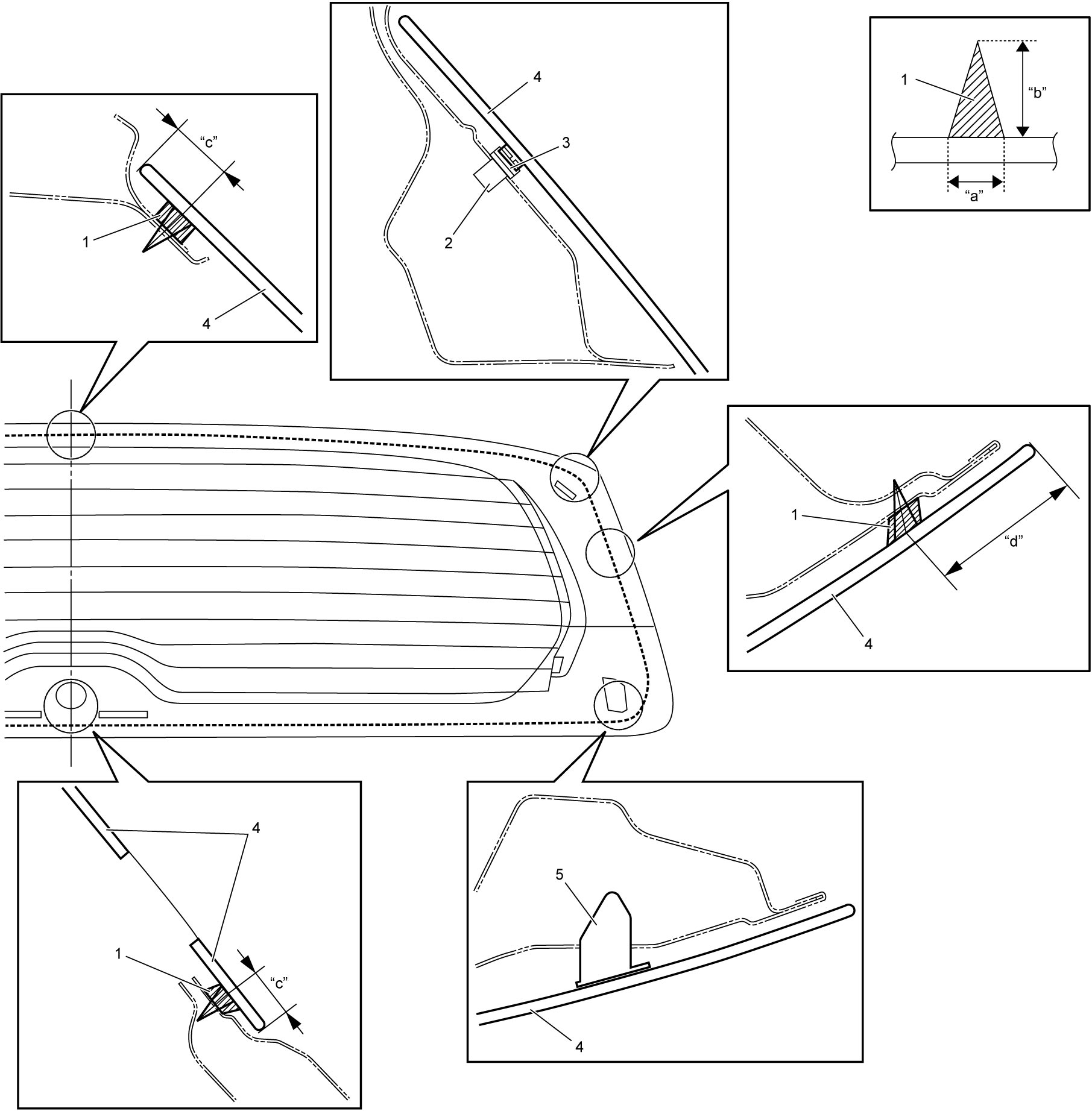

Adhesive amount and application area on rear end door window
Adhesive width “a”: Approx. 6.0 mm (0.24 in.)
Adhesive height “b”: Approx. 13.0 mm (0.51 in.)
Application position “c”: Approx. 15.0 mm (0.59 in.), “d”: Approx. 35.8 mm (1.40 in.)
| 4. | Rear end door window glass | 5. | Glass fastener clip |
