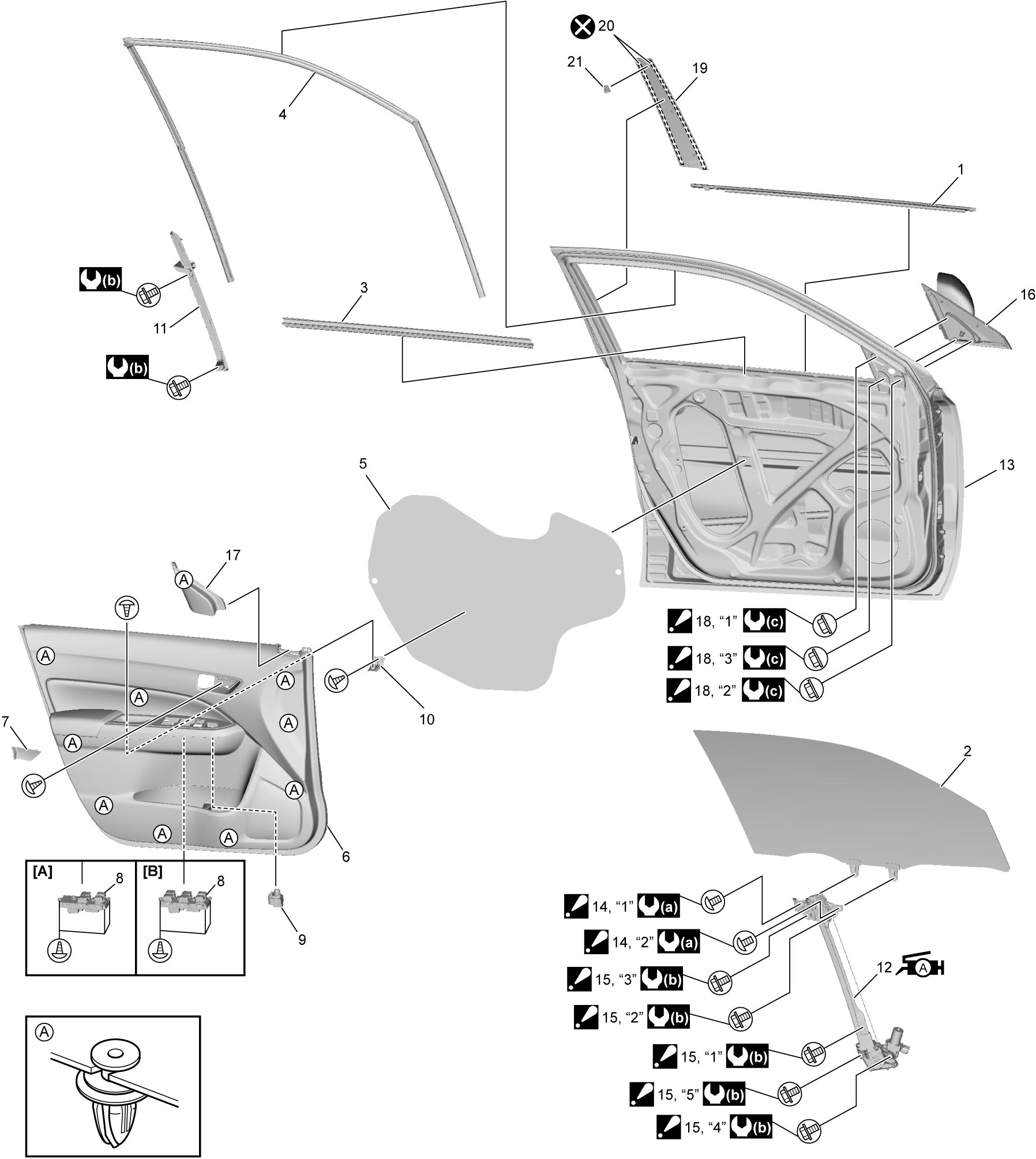

Front Door Window Glass Components
Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)
| [A]: | Rear manual window type | 13. | Door panel |
| [B]: | Rear power window type |
 14. |
Front door glass screw : Tighten front door glass screws in numerical order (“1” – “2“). |
| 1. | Front door outer weather-strip |
15. |
Front window regulator bolt : Tighten front window regulator bolts in numerical order (“1” – “5”). |
| 2. | Front door glass | 16. | Door mirror |
| 3. | Front door inner weather-strip | 17. | Sash bracket inner garnish |
| 4. | Glass run |
18. |
Door mirror nut : Tighten door mirror nuts in numerical order (“1” – “3”). |
| 5. | Door sealing cover | 19. | Front door center pillar garnish |
| 6. | Door trim | 20. | Double-stick tape |
| 7. | Inside handle cap | 21. | Clip |
| 8. | Power window main switch |
 : |
5.5 N·m (0.56 kgf-m, 4.0 lbf-ft) |
| 9. | Power door mirror switch |
 : |
8.4 N·m (0.86 kgf-m, 6.5 lbf-ft) |
| 10. | Door trim bracket |
 : |
7.9 N·m (0.81 kgf-m, 6.0 lbf-ft) |
| 11. | Front door rear sash |
 : |
Do not reuse. |
 12. |
Front window regulator assembly : Apply grease 99000–25011 to sliding parts. |
