Power Door Mirror Switch Inspection
Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)
Check continuity between terminals at each switch position.
If check result is not as specified, replace switch.

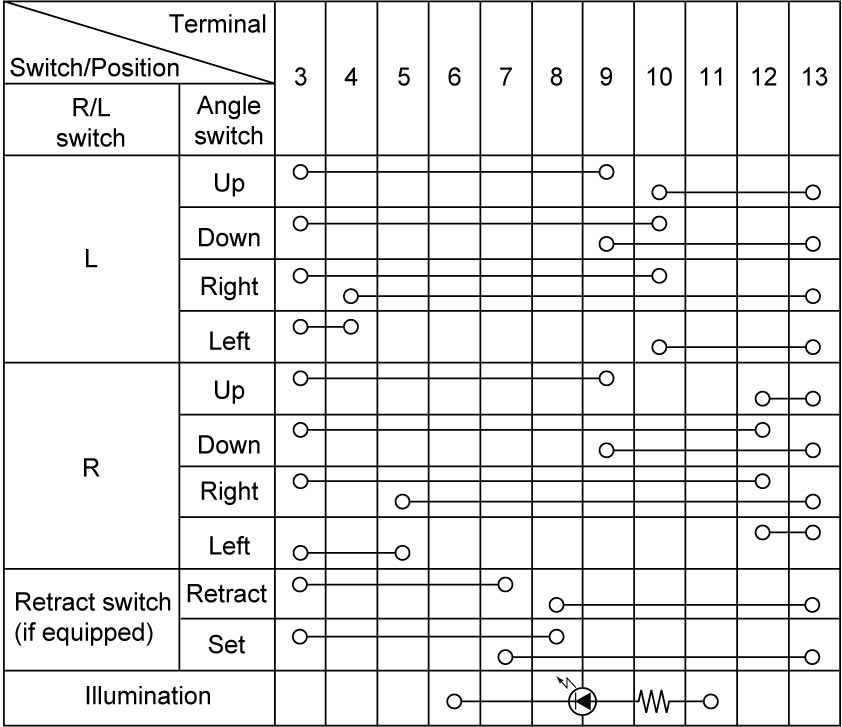

Power door mirror switch continuity

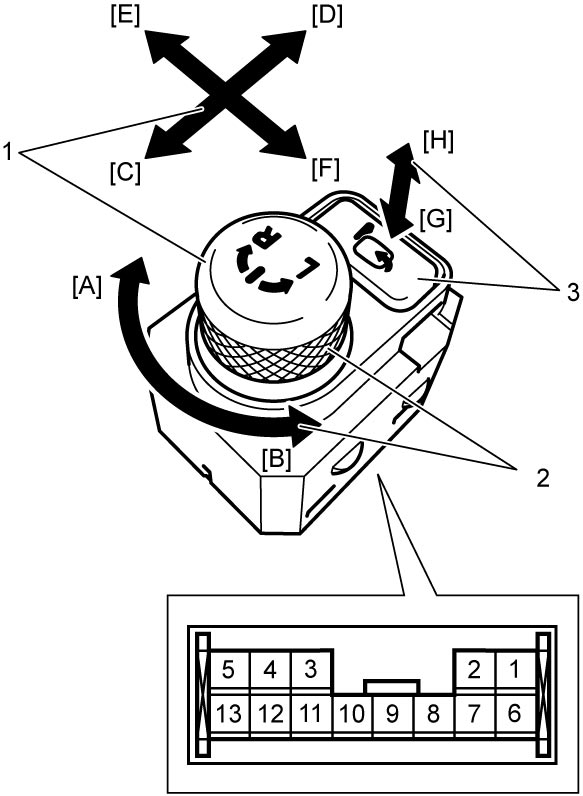

| [A]: | Right side power door mirror | [G]: | Retract |
| [B]: | Left side power door mirror | [H]: | Set |
| [C]: | Up | 1. | Angle switch |
| [D]: | Down | 2. | R/L switch |
| [E]: | Right | 3. | Retract switch (if equipped) |
| [F]: | Left |
