Rear End Door Lock Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Ignition Key (Ignition Switch Model) · Precautions for Transmitter Disposal (Ignition Switch Model) · Precautions for Replacing Keyless Entry Control Module (Ignition Switch Model) · Precautions for Body, Cab and Accessories · General safety (00)

Reference: Rear End Door Lock Components

Reference: Rear End Door Latch On-Vehicle Inspection

Removal

1)Remove rear end door trim.

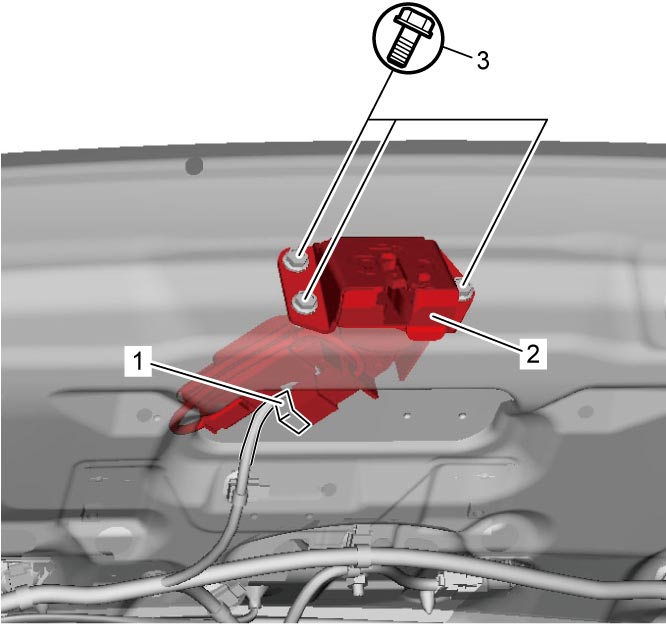

2)Disconnect rear end door lock connector (1) from rear end door lock assembly (2).

3)Remove rear end door lock bolts (3) and remove rear end door lock assembly.

Installation

Reverse removal procedure noting the following points.

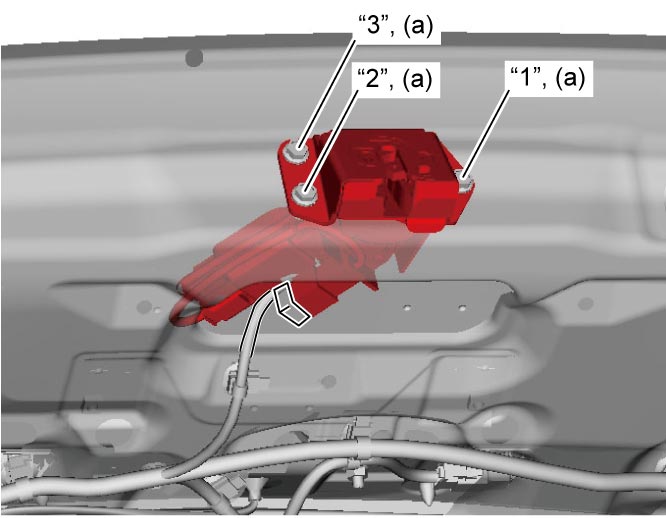

•Tighten rear end door lock bolts to specified torque in numerical order (“1” – “3”).

Tightening torque

Rear end door lock bolt (a): 10 N·m (1.0 kgf-m, 7.5 lbf-ft)

•Adjust rear end door latch striker as follows if necessary.

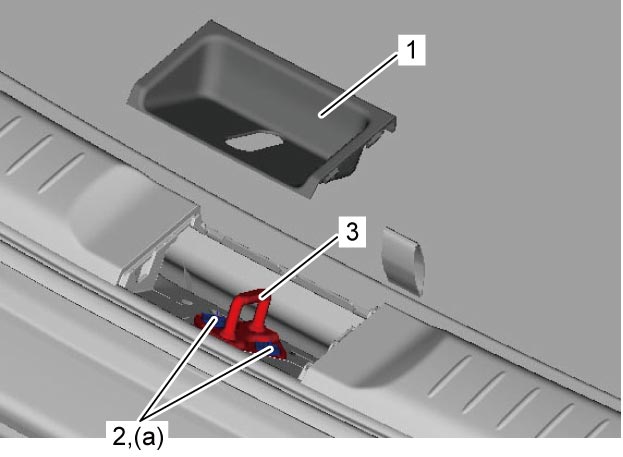

a.Remove tail end trim cap (1).
b.Loosen rear end door latch striker screws (2).
c.Adjust rear end door latch striker (3) position so that rear end door can be opened and closed smoothly.
d.Tighten rear end door latch striker screws to specified torque.

Tightening torque

Rear end door latch striker screw (a): 28 N·m (2.9 kgf-m, 21.0 lbf-ft)
