Sun Roof Glass Removal and Installation
Precautions: Precautions for Sun Roof · Precautions for Disassembly and Reassembly · Precautions for Body, Cab and Accessories · General safety (00)
Removal

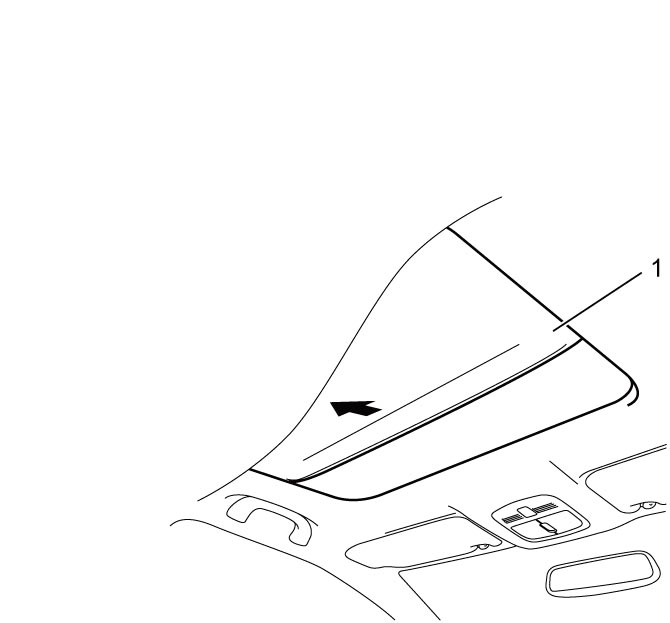

1)Open sunshade (1) fully and tilt up sun roof.
2)Disconnect negative (–) cable at battery.

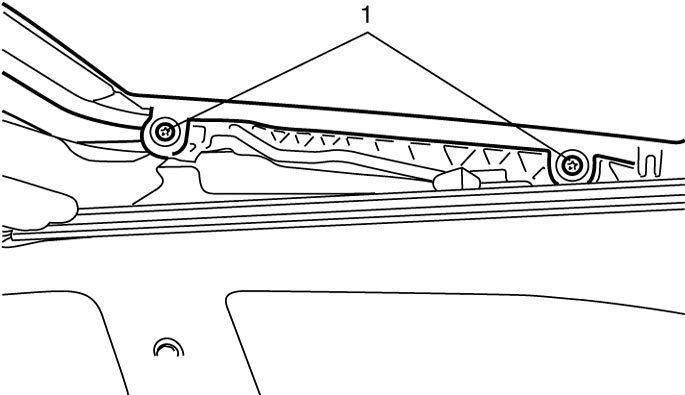

3)Remove front sun roof glass by removing glass fixing bolts (TORX® T25) (1).

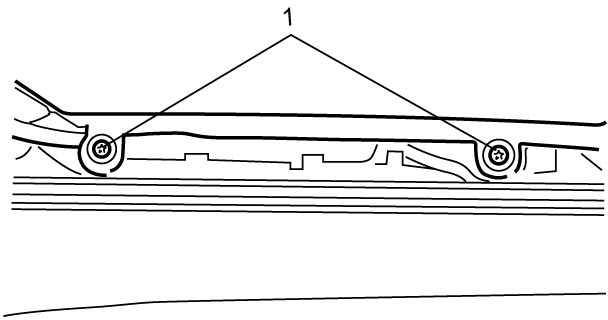

4)Remove rear sun roof glass by removing glass fixing bolts (TORX® T25) (1).
Installation
Reverse removal procedure noting the following points.
•Initialize sun roof motors.
•Adjust sun roof glass mounting position.
•Adjust sun roof glass mounting position.
