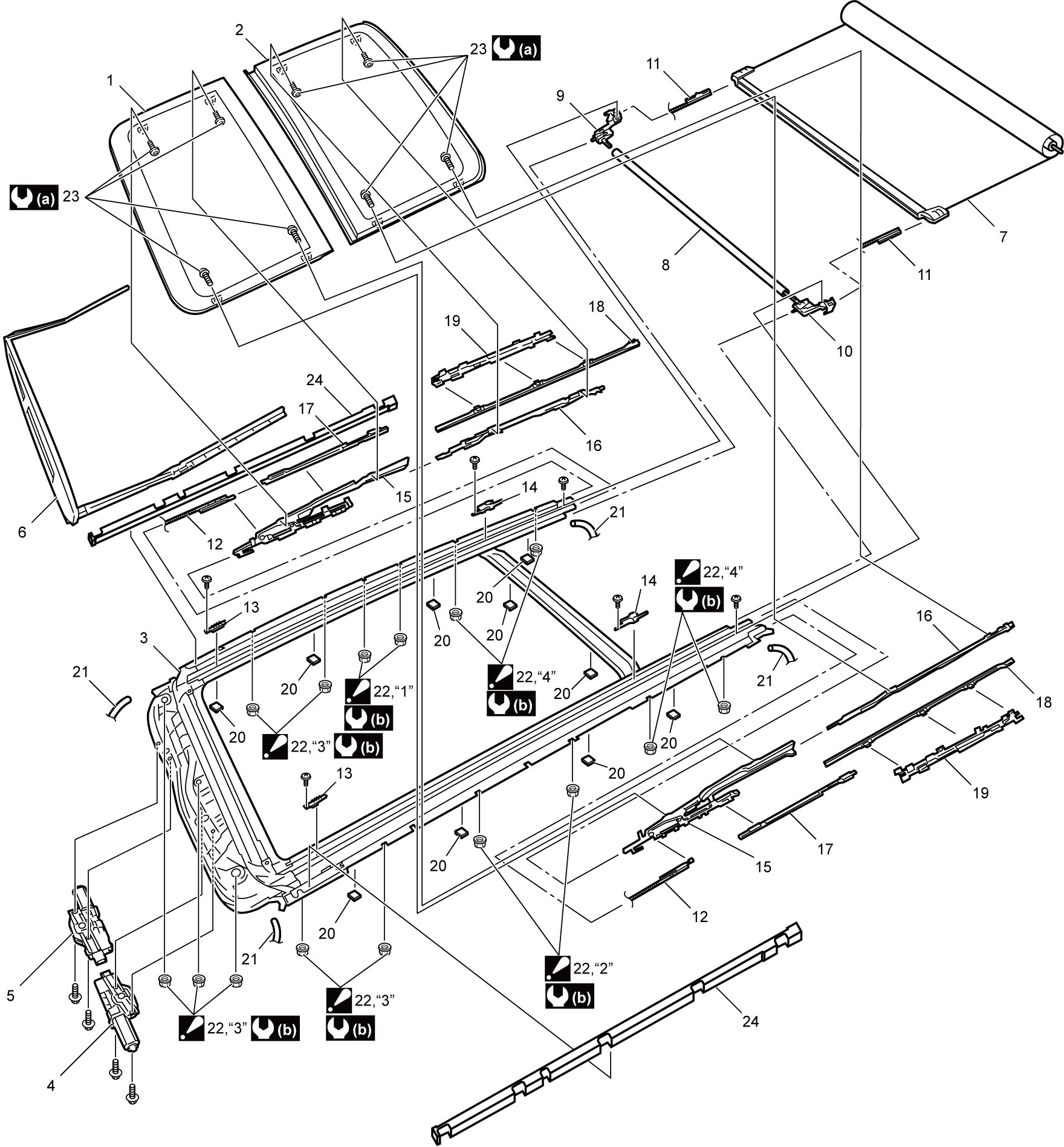

Sun Roof Components
Precautions: Precautions for Sun Roof · Precautions for Disassembly and Reassembly · Precautions for Body, Cab and Accessories · General safety (00)
| 1. | Front sun roof glass | 10. | Sunshade left base | 19. | Rear slider |
| 2. | Rear sun roof glass | 11. | Sunshade cable | 20. | Fastener |
| 3. | Sun roof housing | 12. | Sun roof glass cable | 21. | Drain hose |
| 4. | Sun roof motor (for sun roof glass) | 13. | Front guide block |
 22. |
Sun roof housing nut : Tighten sun roof housing nuts in numerical order (“1” – “4”). |
| 5. | Sun roof motor (for sunshade) | 14. | Rear guide block | 23. | Sun roof glass fixing bolt |
| 6. | Wind-deflector | 15. | Front guide | 24. | Sun roof seal |
| 7. | Sunshade | 16. | Rear guide |
 : |
3.4 N·m (0.35 kgf-m, 2.5 lbf-ft) |
| 8. | Sunshade stay | 17. | Front guide cover |
 : |
9.0 N·m (0.92 kgf-m, 7.0 lbf-ft) |
| 9. | Sunshade right base | 18. | Rear guide cover |
