Side Body Inside Dimensions
Precautions: Precautions for Body Structure · Precautions for Body, Cab and Accessories · General safety (00)

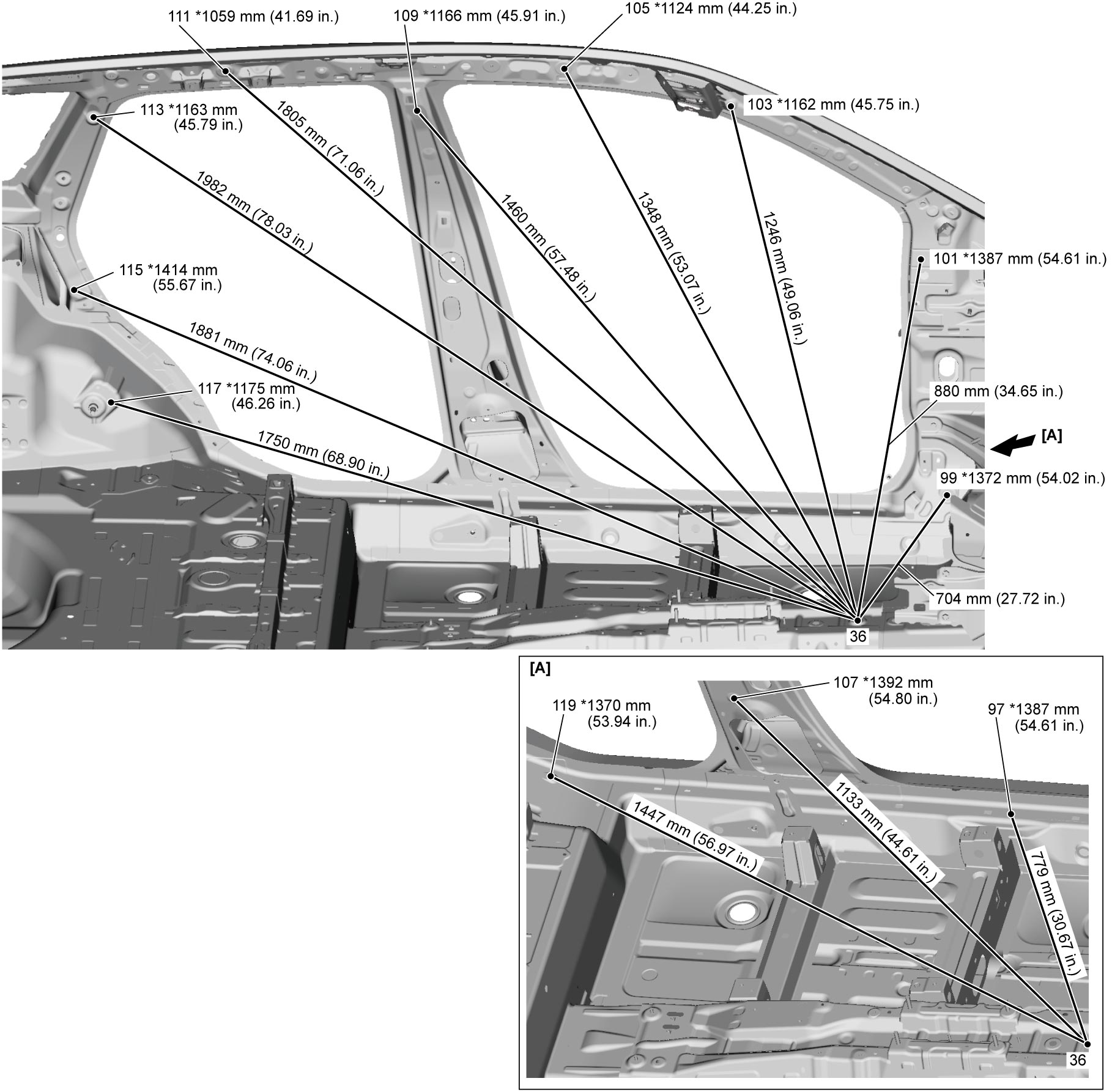

NOTE:
•Dimension with asterisk (*) shows distance to the same point on opposite side.
•In principle, body dimensions in the figure below are symmetrical. Adopt the dimension for the opposite side if the dimension is not mentioned in the figure below.
•Use point 36 as datum point to check symmetry of body dimensions.
Measure distance between point 36 and each point on vehicle left side and vehicle right side for symmetry check.
•The number with “ø” is circle diameter and measurement unit is “mm”.
•In principle, body dimensions in the figure below are symmetrical. Adopt the dimension for the opposite side if the dimension is not mentioned in the figure below.
•Use point 36 as datum point to check symmetry of body dimensions.
Measure distance between point 36 and each point on vehicle left side and vehicle right side for symmetry check.
•The number with “ø” is circle diameter and measurement unit is “mm”.
| Point | Position | ||
|---|---|---|---|
| 36 | Main floor tunnel jig hole (front side) | — | ø 15 hole center |
| 96 | Harness installation hole | R | 7 x 12 mm hole center |
| 97 | ↑ | L | ↑ |
| 98 | Dash side trim installation hole | R | ø 8.5 hole center |
| 99 | ↑ | L | ↑ |
| 100 | Steering support member installation hole (upper side) | R | ø 11 hole center |
| 101 | ↑ | L | ↑ |
| 102 | Front pillar trim installation hole | R | ø 8 hole center |
| 103 | ↑ | L | ↑ |
| 104 | Roof side inner rail jig hole | R | ø 7 hole center |
| 105 | ↑ | L | ↑ |
| 106 | Center pillar inner panel jig hole | R | ø 12 hole center |
| 107 | ↑ | L | ↑ |
| 108 | Front shoulder adjuster installation hole | R | ø 11 hole center (weld nut M10) |
| 109 | ↑ | L | ↑ |
| 110 | Roof side inner rear rail jig hole (rear side) | R | ø 7 hole center |
| 111 | ↑ | L | ↑ |
| 112 | Quarter inner upper trim installation hole | R | ø 8.5 hole center |
| 113 | ↑ | L | ↑ |
| 114 | Rear door striker reinforcement jig hole (upper side) | R | ø 8.5 hole center |
| 115 | ↑ | L | ↑ |
| 116 | Rear seat hinge bracket jig hole | R | ø 7 hole center |
| 117 | ↑ | L | ↑ |
| 118 | Harness installation hole | R | 7 x 12 mm hole center |
| 119 | ↑ | L | ↑ |
