Windshield Dimensions
Precautions: Precautions for Body Structure · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:
•Dimension with asterisk (*) shows distance to the same point on opposite side.
•In principle, body dimensions in the figure below are symmetrical. Adopt the dimension for the opposite side if the dimension is not mentioned in the figure below.
•Use point 36 as datum point to check symmetry of body dimensions.
Measure distance between point 36 and each point on vehicle left side and vehicle right side for symmetry check.
•The number with “ø” is circle diameter and measurement unit is “mm”.
•In principle, body dimensions in the figure below are symmetrical. Adopt the dimension for the opposite side if the dimension is not mentioned in the figure below.
•Use point 36 as datum point to check symmetry of body dimensions.
Measure distance between point 36 and each point on vehicle left side and vehicle right side for symmetry check.
•The number with “ø” is circle diameter and measurement unit is “mm”.

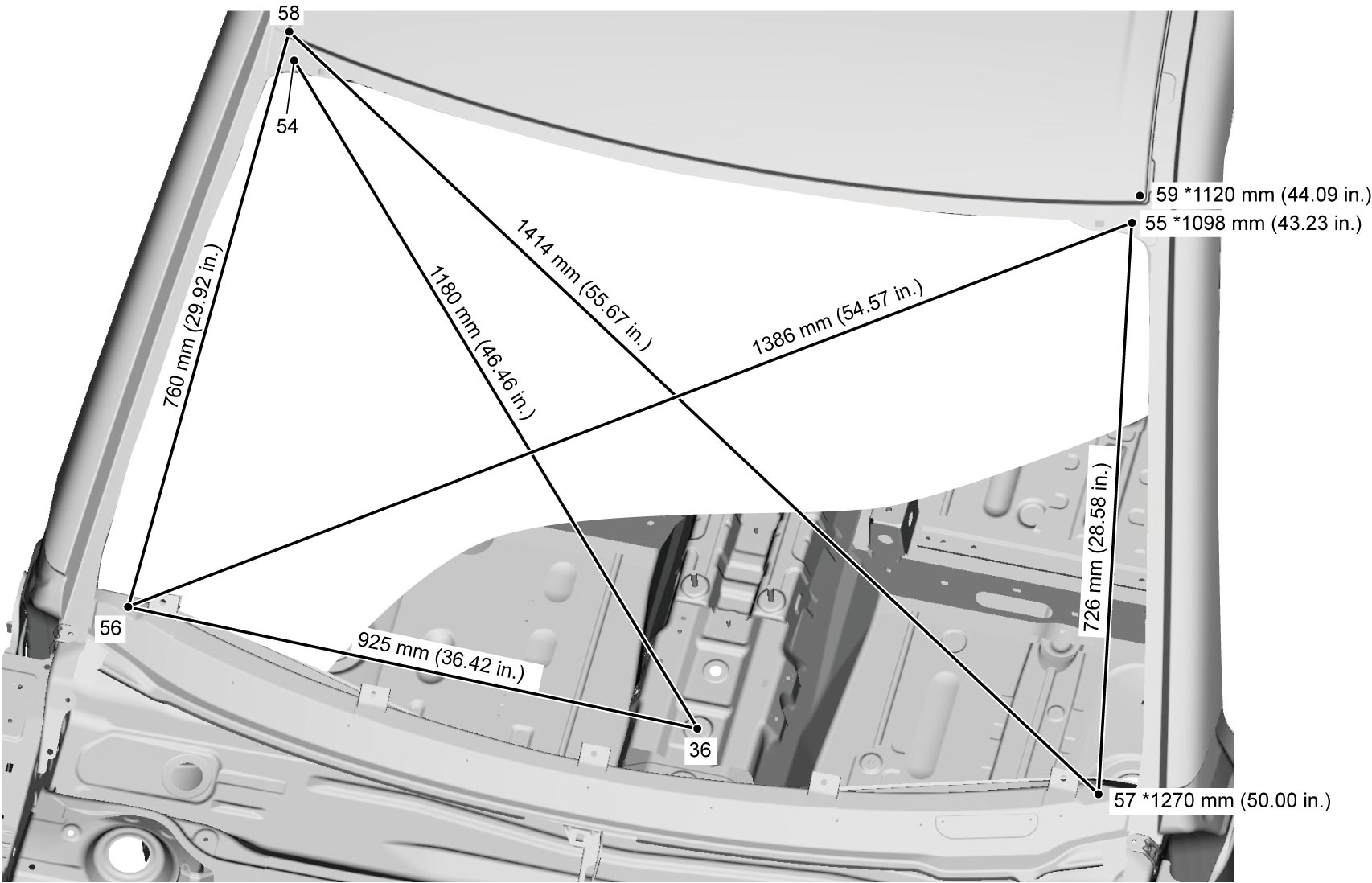

| Point | Position | ||
|---|---|---|---|
| 36 | Main floor tunnel jig hole (front side) | — | ø 15 hole center |
| 54 | Roof panel jig hole | R | ø 8 hole center |
| 55 | ↑ | L | ↑ |
| 56 | Cowl top cap installation hole | R | ø 10 hole center |
| 57 | ↑ | L | ↑ |
| 58 | Roof panel | R | Tip part |
| 59 | ↑ | L | ↑ |
