Sealant Application Areas
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
Apply sealant referring to the following figures.

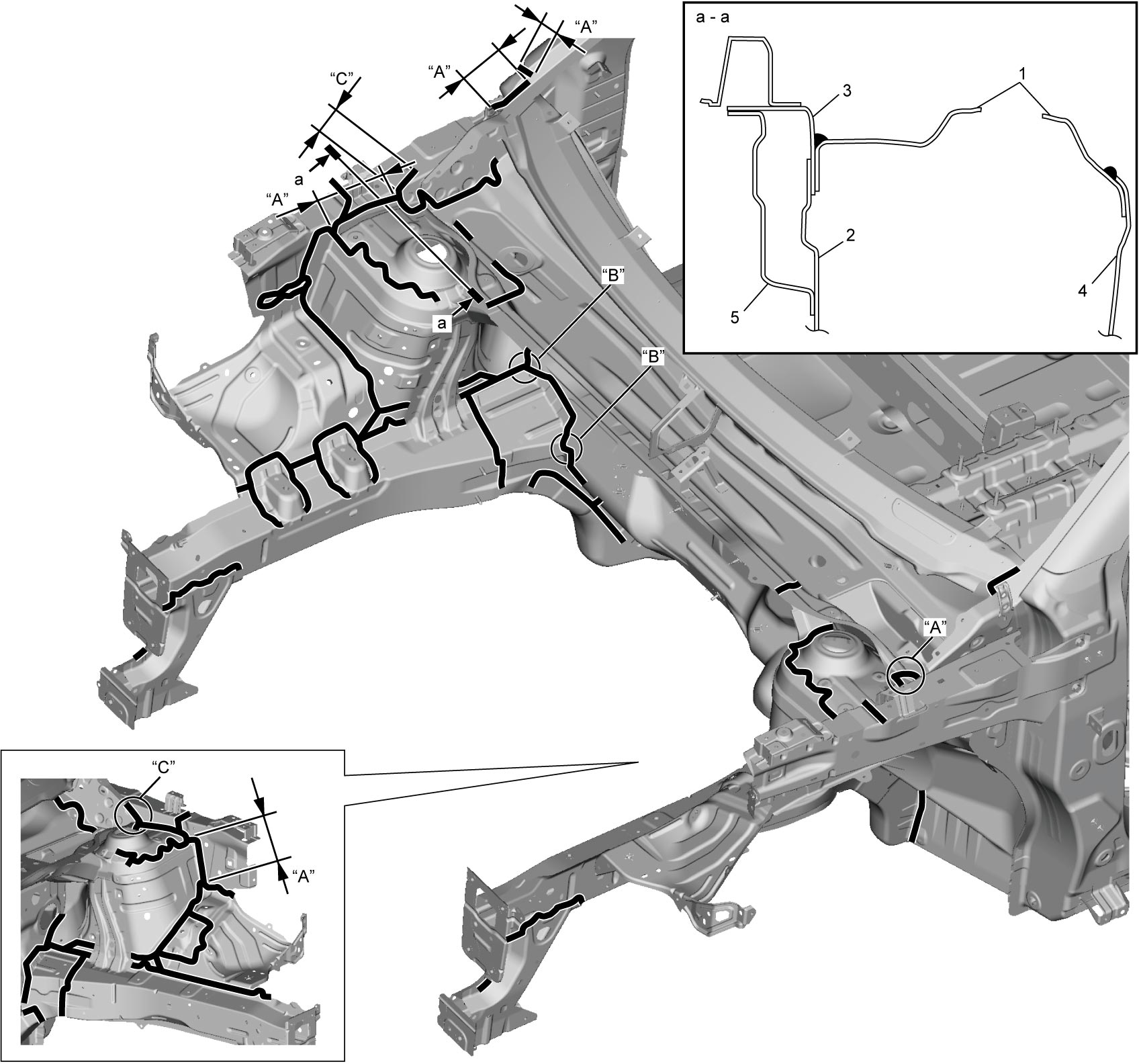

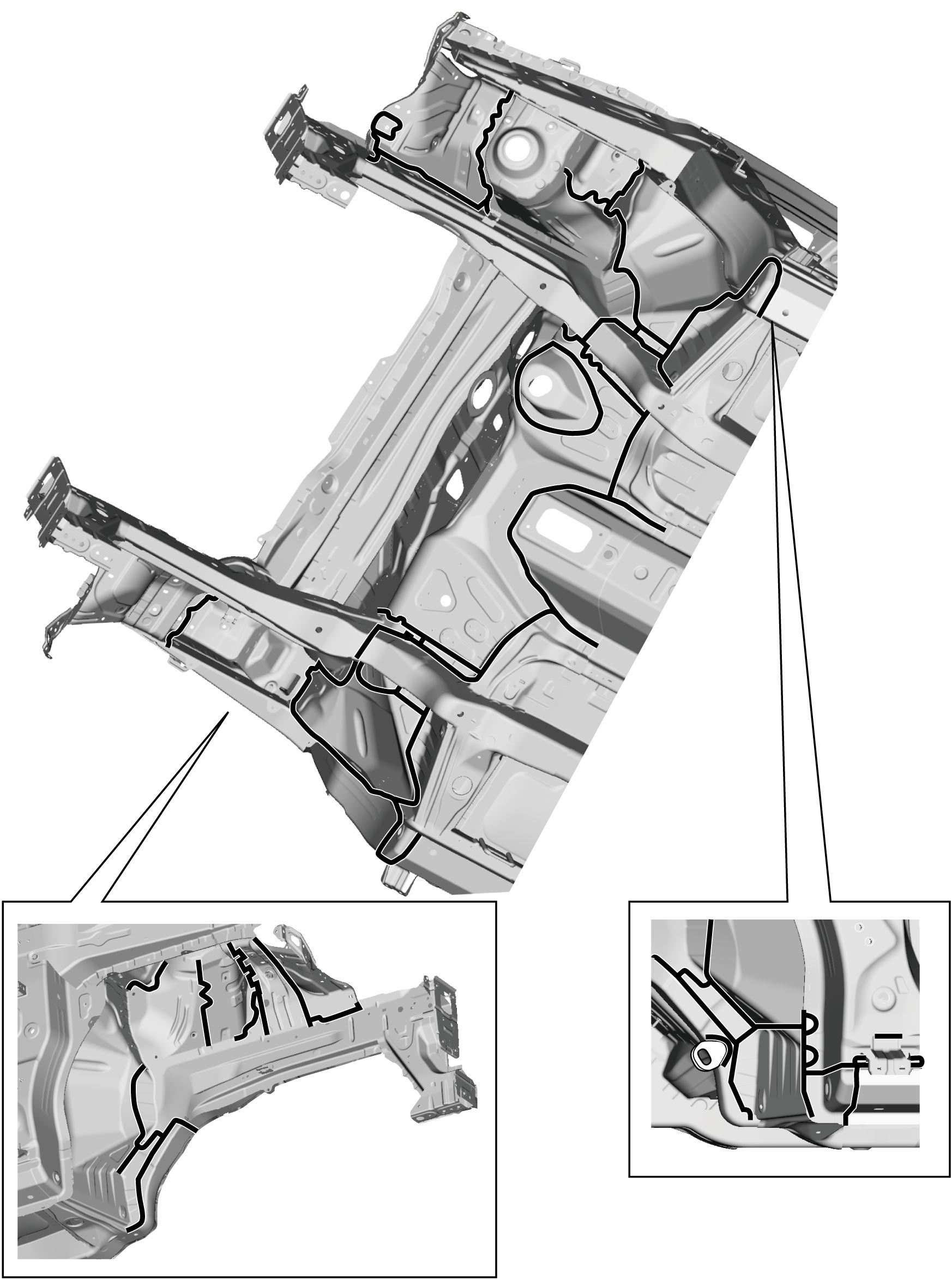

Engine Compartment and Dash Side Panel
| “A”: | Smooth out sealant with a brush. | 1. | Suspension upper bracket | 4. | Fender apron rear panel |
| “B”: | Fill hole with sealant. | 2. | Dash side front panel | 5. | Cowl side outer member |
| “C”: | Wipe off excess sealant. | 3. | Dash side front reinforcement |

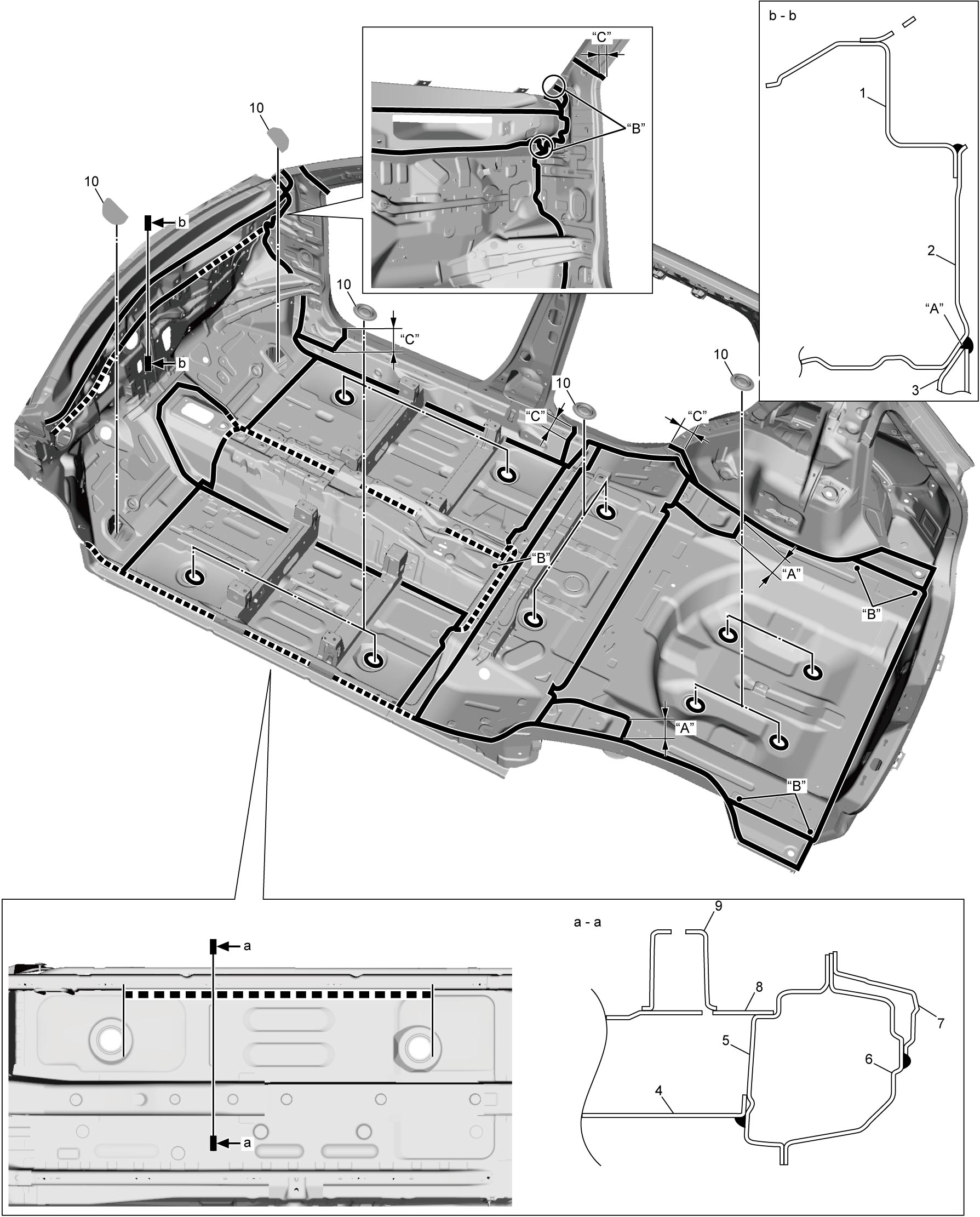

Dash Panel and Floor
| “A”: | Smooth out sealant with a brush. | 3. | Dash panel | 8. | Floor panel upper crossmember |
| “B”: | Fill hole with sealant. | 4. | Main floor panel | 9. | Front seat front outside bracket |
| “C”: | Wipe off excess sealant. | 5. | Side sill inner panel | 10. | Cap |
| 1. | Cowl top panel | 6. | Side sill strength | ||
| 2. | Cowl upper panel | 7. | Side body outer panel |

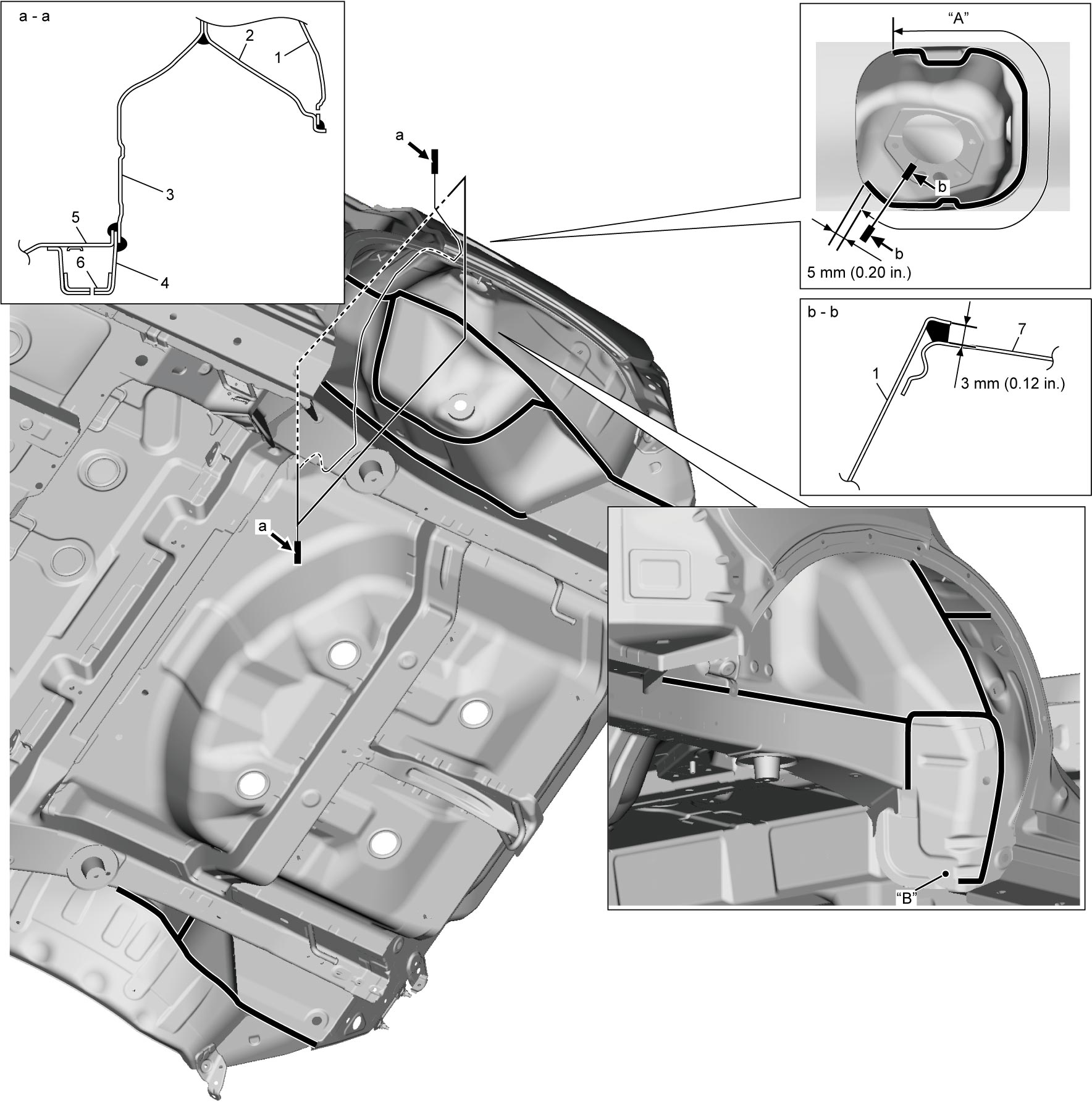

Rear Wheel Housing
| “A”: | Smooth out sealant with a brush. | 2. | Wheel house outer panel | 5. | Rear floor rear panel |
| “B”: | Fill hole with sealant. | 3. | Wheel house inner panel | 6. | Rear floor side member rear reinforcement |
| 1. | Side body outer panel | 4. | Rear floor side front member | 7. | Fuel filler box |

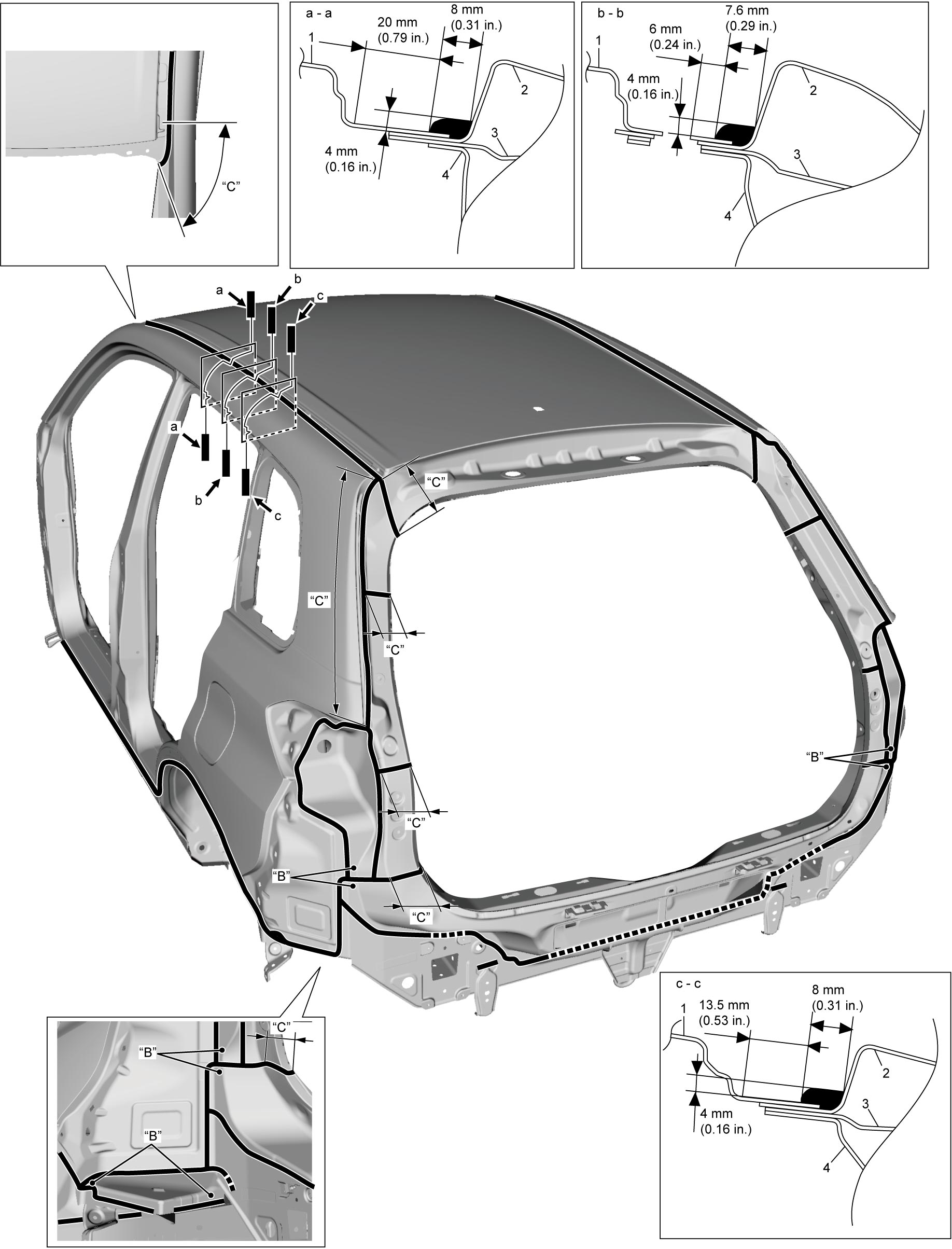

Back Panel and Roof
| “B”: | Fill hole with sealant. | 1. | Roof panel | 3. | Roof side reinforcement |
| “C”: | Wipe off excess sealant. | 2. | Side body outer panel | 4. | Roof side inner rail / Roof side inner rear rail |

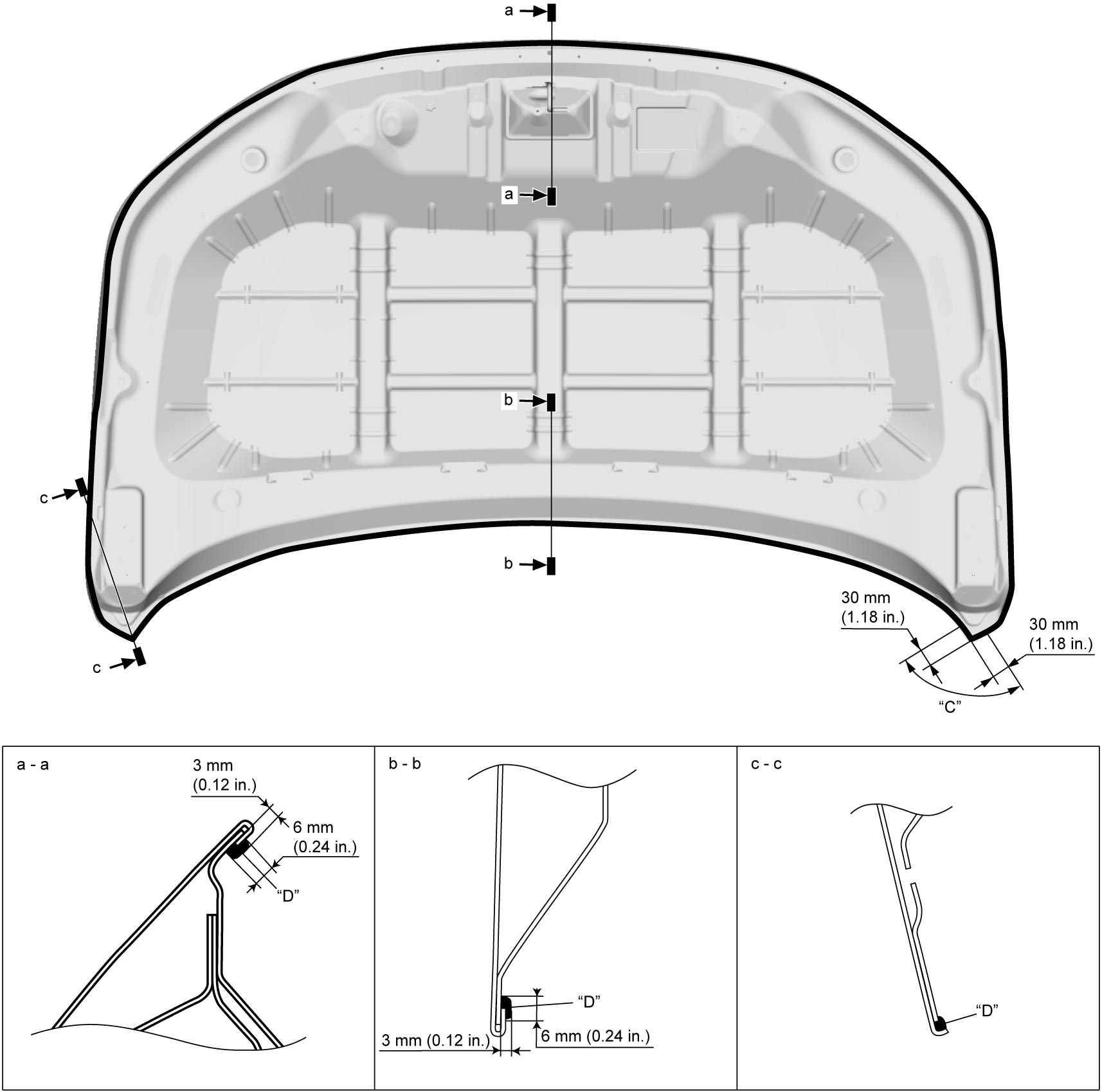

Hood
| “C”: | Wipe off excess sealant. | “D”: | Apply sealant and cover flange-end surely. |

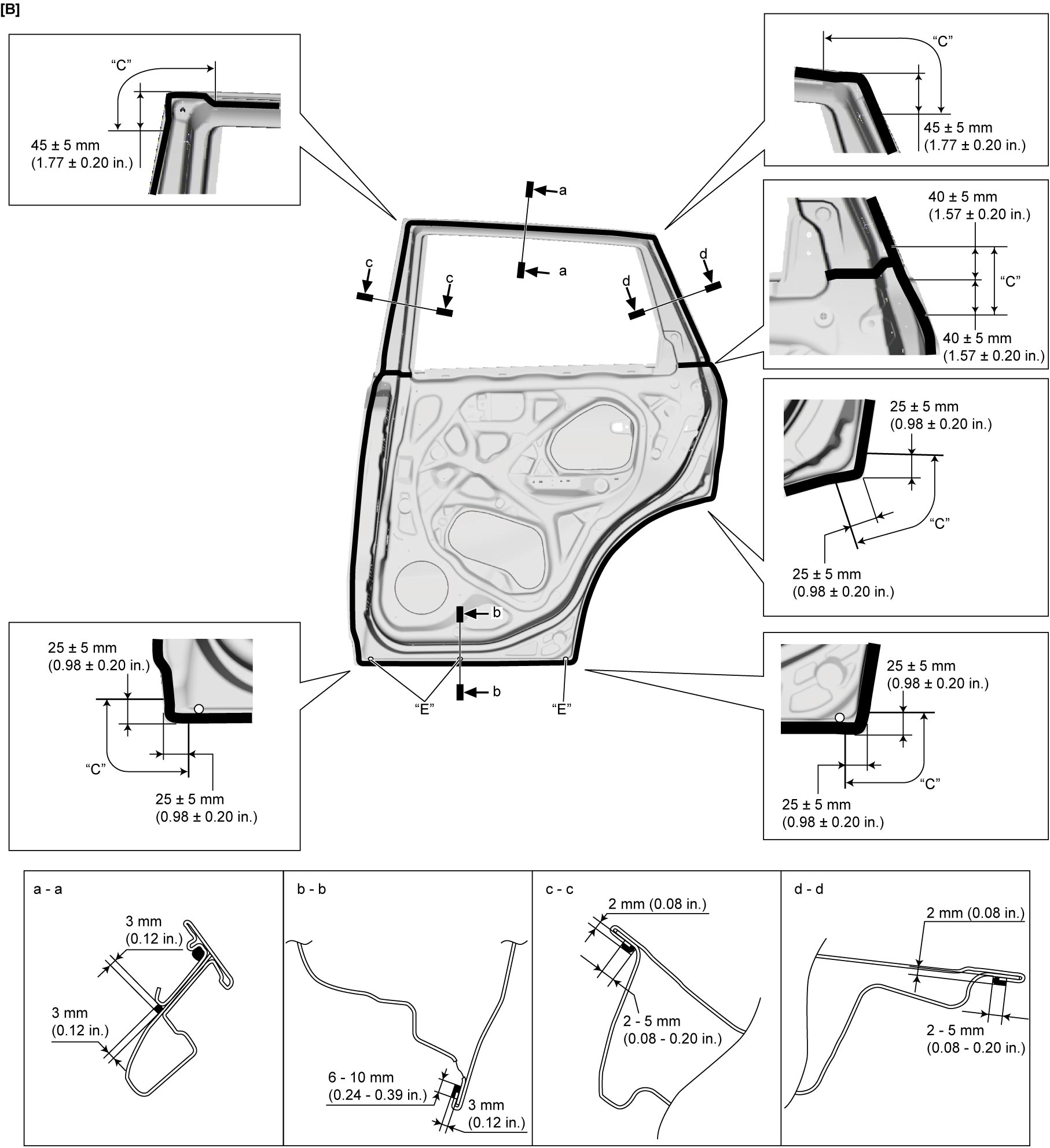

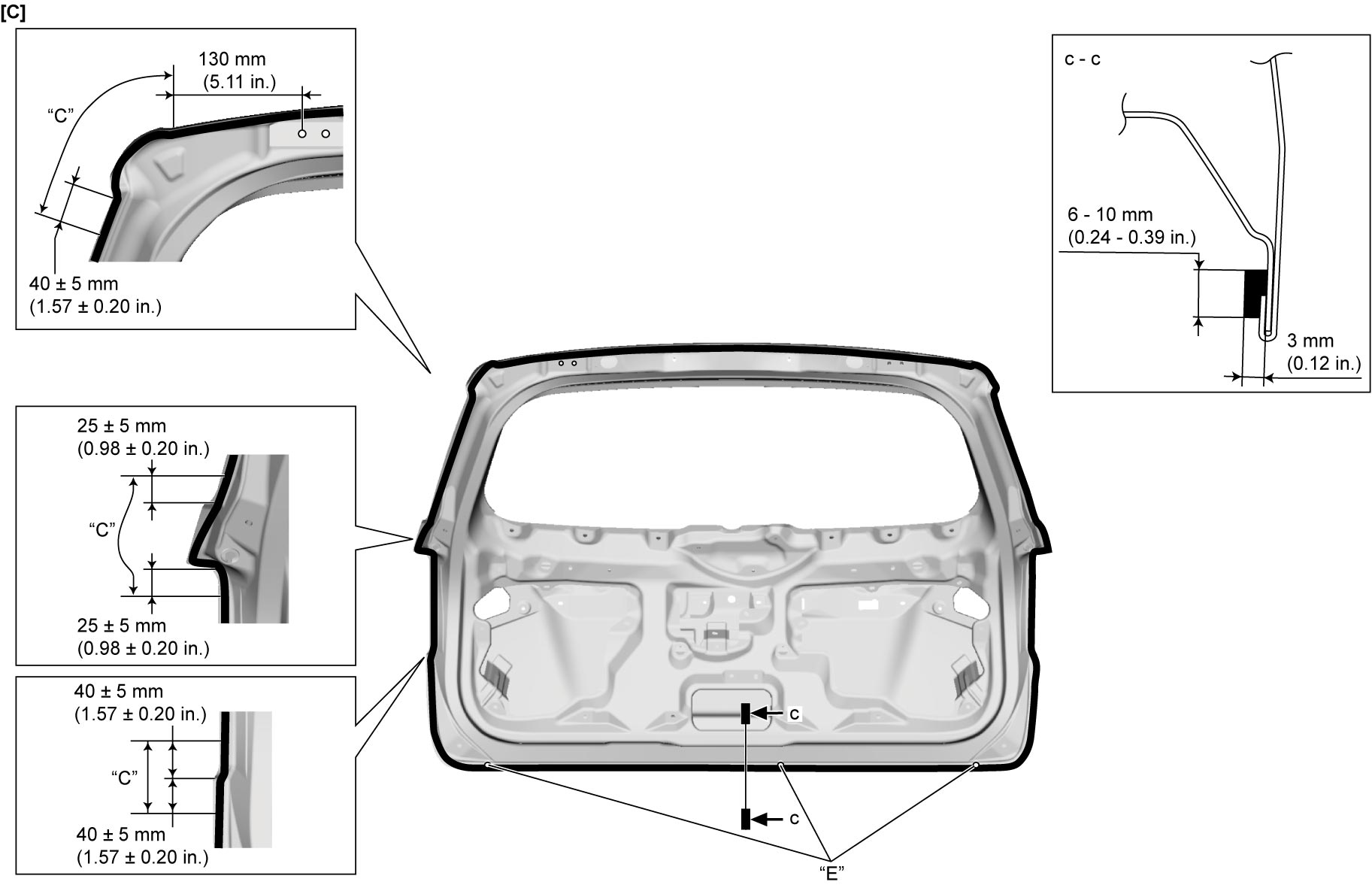

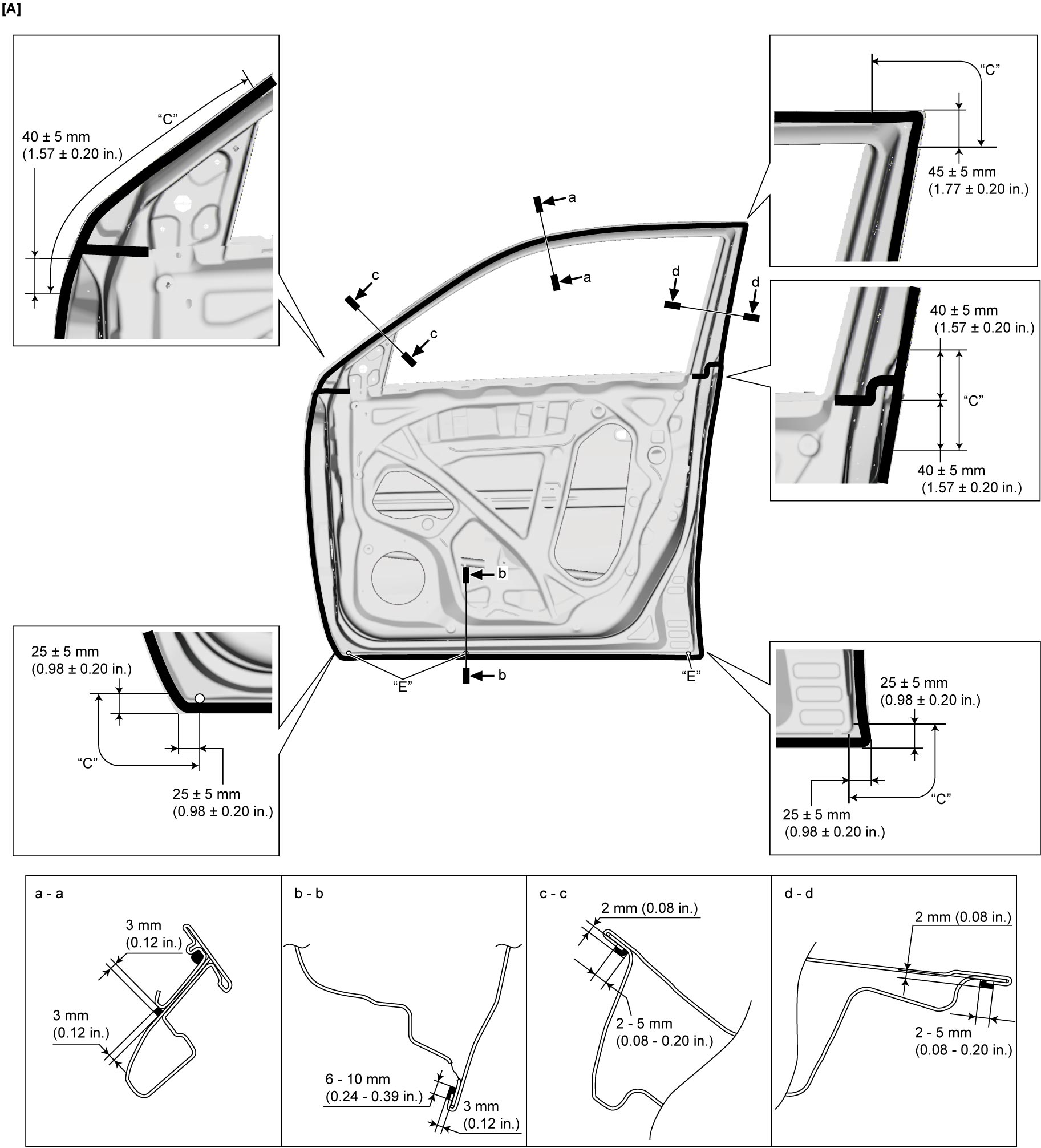

Door
| [A]: | Front door | [C]: | Rear end door | “E”: | Do not fill drain holes with sealant. |
| [B]: | Rear door | “C”: | Wipe off excess sealant. |
