Steering Switch (Audio Control Switch and Hands-Free Switch) Inspection (If Equipped)

Precautions: Precautions for Audio Visual / Navigation · Precautions for Body, Cab and Accessories · General safety (00)

Reference: Steering Switch (Audio Control Switch and Hands-Free Switch) Removal and Installation (If Equipped)

1)Remove driver air bag (inflator) module.

2)Disconnect steering switch connector.

3)Measure resistance between the following terminals under each condition in the table.

4)Check for continuity between the following terminals.

•For vehicles not equipped with hands-free switch: between terminals “4” and “10”
•For vehicles equipped with hands-free switch: between connectors [A] and [B]

NOTE:

Set tester at diode range when measuring between terminals 4 and 10, 4 and 13, 10 and 16, 13 and 16.

5)If check result is not as specified, replace audio control switch.

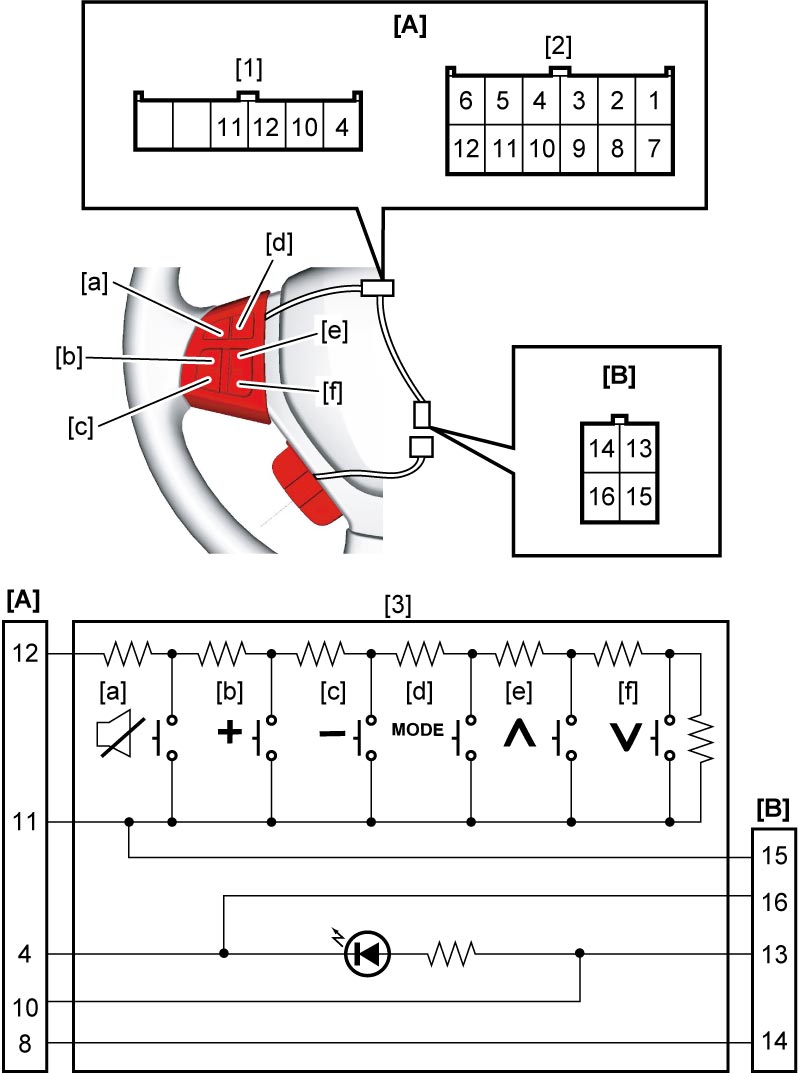

[A]:	Steering switch connector (to contact coil)
[B]:	Steering switch connector (to hands-free switch)
[1]:	Without cruise control switch and hands-free switch
[2]:	With cruise control switch
[3]:	Audio control switch

Audio control switch resistance

Terminal position	Resistance	Measurement condition
12 – 11	56 ± 0.6 Ω	Mute switch [a]: ON
	131 ± 1.3 Ω	Volume switch [b]: ON
	241 ± 2.4 Ω	Volume switch [c]: ON
	421 ± 4.2 Ω	Mode switch [d]: ON
	751 ± 7.5 Ω	Seek switch [e]: ON
	1571 ± 15.7 Ω	Seek switch [f]: ON
	5171 ± 51.7 Ω	Except above

6)Measure resistance between the following terminals under each condition in the table.

7)Check for continuity between terminals “2” and “3”.

NOTE:

Set tester at diode range when measuring between terminals 2 and 3.

8)If check result is not as specified, replace hands-free switch.

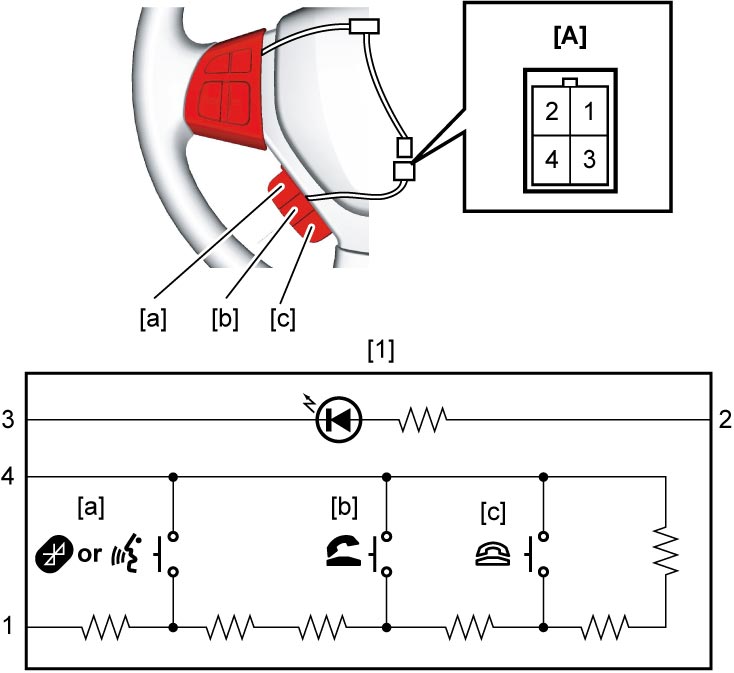

[A]:

Hands-free switch connector

[1]:

Hands-free switch

Hands-free switch resistance

Terminal position	Resistance	Measurement condition
1 – 4	56 ± 0.6 Ω	Talk switch [a]: ON
	241 ± 2.4 Ω	Off hook switch [b]: ON
	751 ± 7.5 Ω	On hook switch [c]: ON
	5171 ± 51.7 Ω	Except above
